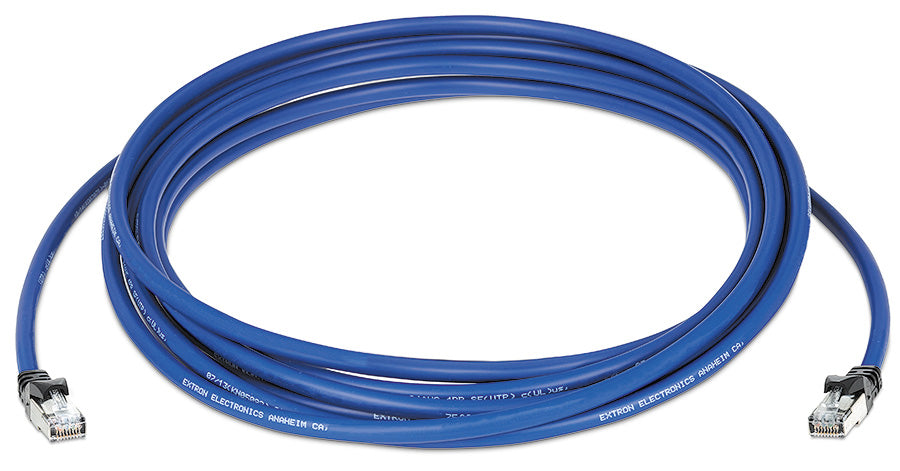

Extron XTP DTP 24P/100 (part number 26-695-100) — a 100' (30.4 m) CMP plenum-rated shielded twisted pair assembly, the longest current length in the XTP DTP 24P Series.

One hundred feet of plenum-rated cable arriving as a single finished assembly is the point of this part: no field crimp to go marginal above a ceiling grid, and no compliance argument about jacket rating on any segment of the run. Extron builds it on XTP DTP 24 bulk cable in an SF/UTP arrangement, four 24 AWG twisted pairs inside an overall braid and foil shield, and fits XTP DTP 24 Plugs with molded strain reliefs at both ends. Bandwidth is certified to 475 MHz at distances up to 330 feet (100 m).

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Multi-room corporate floors served from one equipment closet, university lecture blocks, hospital and imaging departments with strict fire separation, and large venues where the plenum is the only practical pathway.

Specifications at a Glance

• Cable length: 100' (30.4 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Connectors: Extron XTP DTP 24 Plugs, factory-terminated

Also referenced as Extron XTPDTP24P100, XTP-DTP-24P-100, part number 26695100.
