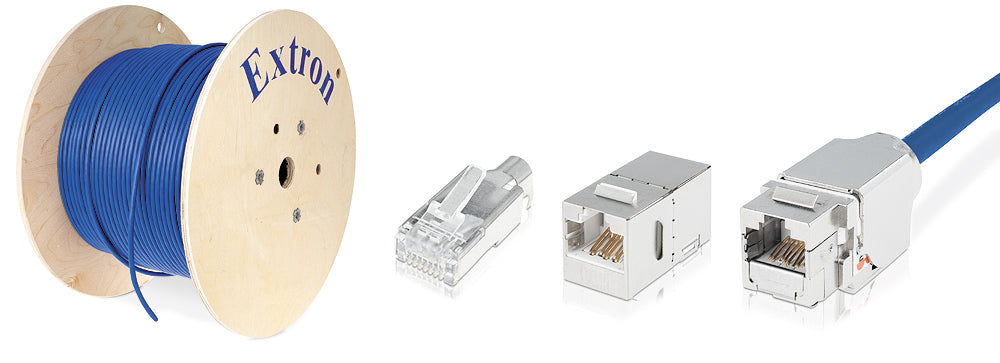

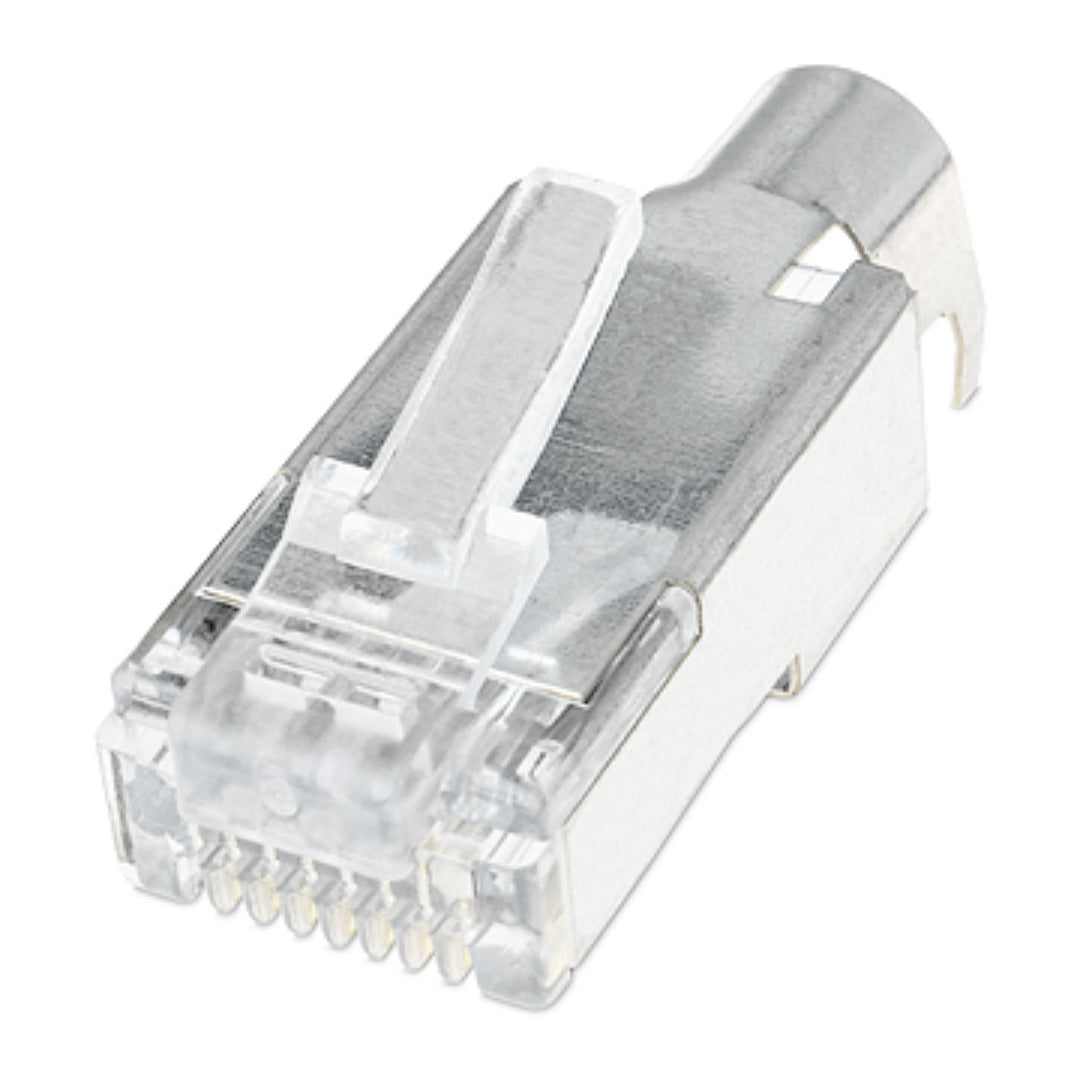

Extron XTP DTP 24 Plug (part number 101-005-02) — a package of ten Category 6A shielded RJ-45 plugs for terminating Extron XTP DTP 24 shielded twisted pair cable.

Field-terminating XTP DTP 24 cable with a generic Cat 6A plug throws away part of what the cable was certified for. This kit is Extron's matched connector for both the plenum and non-plenum versions of that cable, and the pairing is what preserves signal transmission through an XTP or DTP link. An integrated alignment guide sorts the four pairs before they enter the plug body so the untwist stays short and crosstalk stays down; metal strain relief with ground bonding carries the cable shield through to the connector instead of terminating it at the jacket.

Key Capabilities

• Category 6A shielded RJ-45 plug engineered for Extron XTP DTP 24 cable, plenum and non-plenum.
• Conductor alignment guide separates pairs to reduce crosstalk and signal interference.
• Metal strain relief with ground bonding for continuous shield termination.
• Gold-plated contacts suited to high EMI/RFI environments.
• Wires to either TIA/EIA 568A or 568B.
• Supplied ten plugs to a package.

Where It Is Used

On-site termination of XTP and DTP cable runs: rack-to-wallplate tails, ceiling transmitter and receiver drops, lectern and table boxes, and any classroom, boardroom, operating suite or control room where the cable is pulled to length and terminated in place rather than ordered as a fixed assembly.

Specifications at a Glance

• Category 6A shielded RJ-45 plug, gold-plated contacts
• Cable compatibility: Extron XTP DTP 24 plenum and non-plenum shielded twisted pair
• Wiring standards: TIA/EIA 568A and 568B
• Package quantity: 10 plugs

Also referenced as Extron XTPDTP24Plug, XTP-DTP-24-Plug, part number 10100502.
