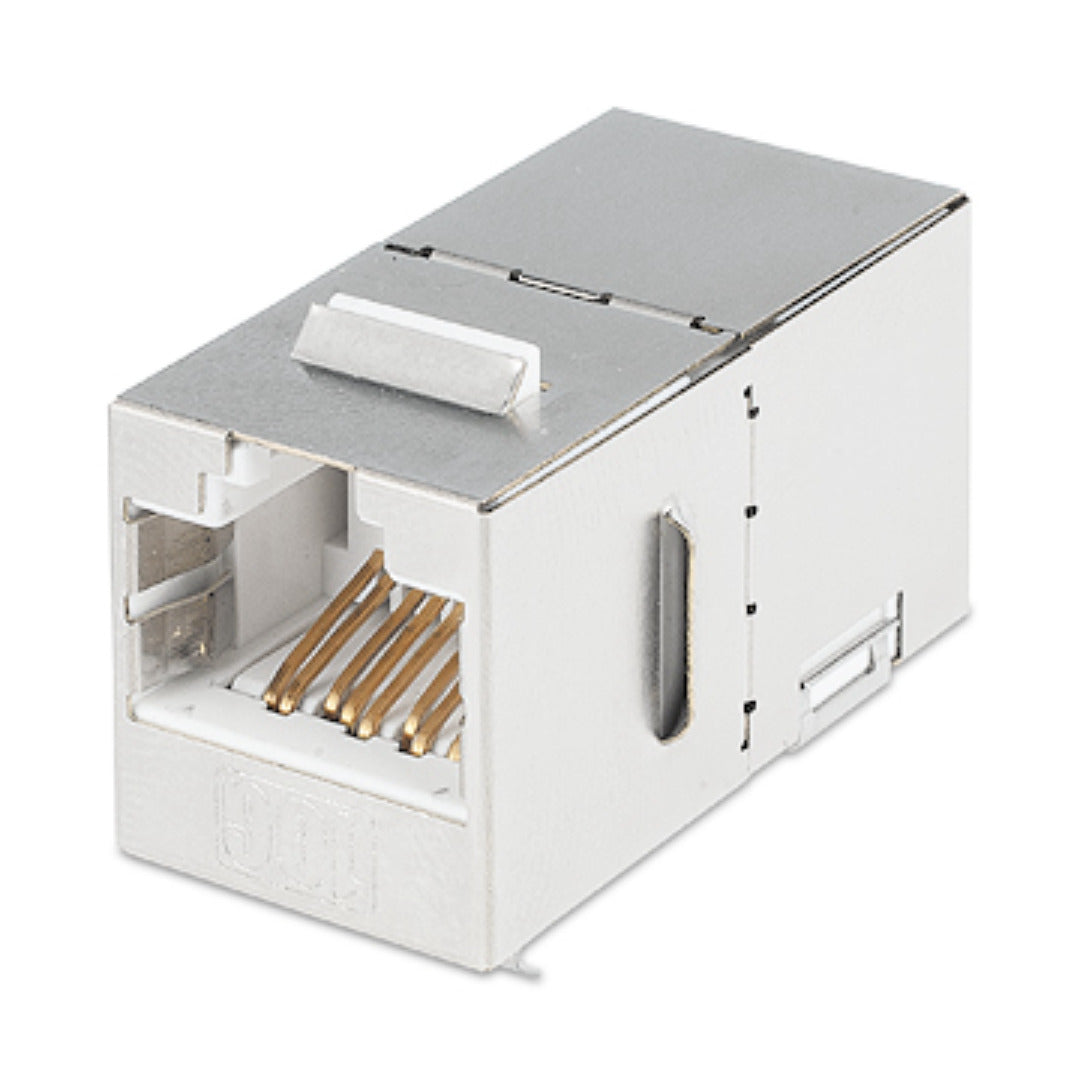

Extron XTP DTP 24 Coupler (part number 101-022-02) — a package of ten fully shielded Category 6A RJ-45 keystone couplers for Extron XTP DTP shielded twisted pair cable.

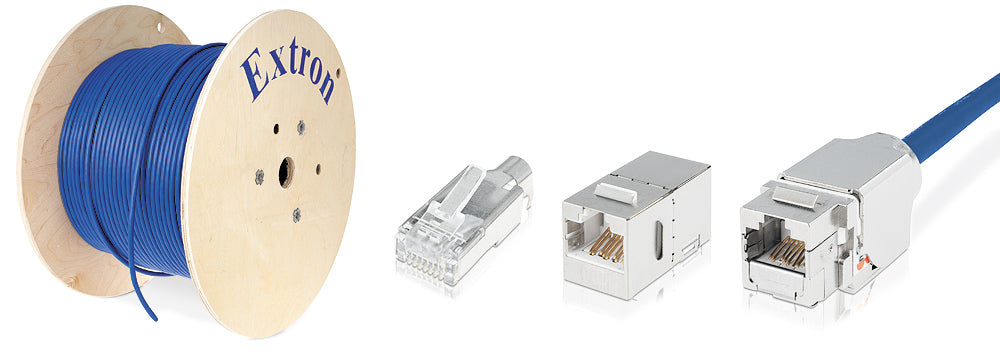

Sometimes the run is already in the wall and it is 30 feet short. The XTP DTP 24 Coupler joins two terminated XTP DTP 22 Series or XTP DTP 24 Series cables so the link can be extended without re-pulling the whole path. The body is fully shielded end to end, which matters because a coupler is exactly the point where a poorly built connection lets EMI and RFI back into an otherwise clean twisted pair link. The keystone snap-in format drops it straight into a wallplate, an AAP AV Connectivity Module or a similar mounting frame.

Key Capabilities

• Joins two terminated XTP DTP 22 Series or XTP DTP 24 Series cables to extend a run.
• High-performance Category 6A RJ-45 keystone coupler.
• Fully shielded body for high EMI/RFI environments.
• Keystone snap-in design fits wallplates, AAP AV Connectivity Modules and similar frames.
• Gold-plated contacts.
• Compatible with TIA/EIA 568A and 568B wiring.
• Supplied ten couplers to a package.

Where It Is Used

Extensions and mid-span transitions in structured AV: wallplate-to-rack handoffs, floor box to ceiling transitions, renovation work where an existing pathway cannot be re-pulled, and modular AAP faceplates in classrooms, conference rooms, auditoriums and clinical spaces.

Specifications at a Glance

• Category 6A shielded RJ-45 keystone coupler, gold-plated contacts
• Cable compatibility: Extron XTP DTP 22 Series and XTP DTP 24 Series
• Mounting: keystone snap-in for wallplates and AAP AV Connectivity Modules
• Package quantity: 10 couplers

Also referenced as Extron XTPDTP24Coupler, XTP-DTP-24-Coupler, part number 10102202.
