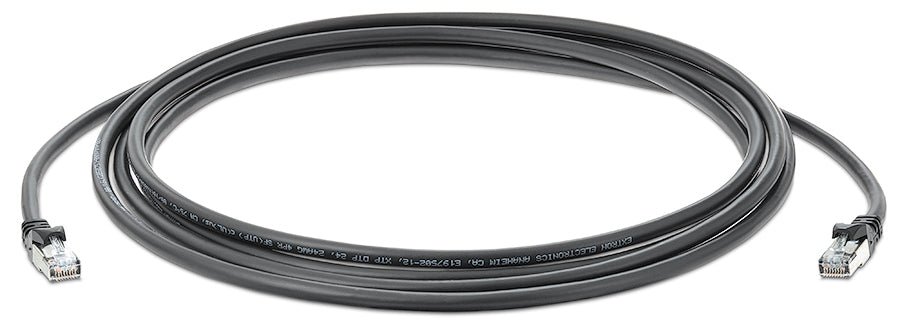

Extron XTP DTP 24/50 (part number 26-702-50) — a 50' (15.2 m) precision-terminated shielded twisted pair assembly for Extron XTP and DTP systems.

Fifty feet is a room-to-closet or floor-to-floor run, and it is exactly the distance where a hand-crimped plug starts costing someone an afternoon. Buying the assembly finished removes that: Extron fits XTP DTP 24 Plugs and molded strain reliefs at both ends in the factory. The cable is XTP DTP 24 bulk, SF/UTP, with four 24 AWG twisted pairs inside an overall braid and foil shield, certified to 475 MHz out to 330 feet (100 m) and verified independently against HDBaseT Alliance requirements.

Key Capabilities

• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements
• Exceeds HDMI error rate specification of under one pixel per billion at 100 m

Where It Is Used

Large classrooms and lecture theatres, divisible ballrooms and multipurpose halls, council chambers and courtrooms, and corporate floors where a transmitter at the lectern feeds a receiver in a shared equipment room.

Specifications at a Glance

• Cable length: 50' (15.2 m)
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Connectors: Extron XTP DTP 24 Plugs, factory-terminated
• Re-terminable with the Extron CTU 45 Universal RJ-45 Termination Tool

Also referenced as Extron XTPDTP2450, XTP-DTP-24-50, part number 2670250.
