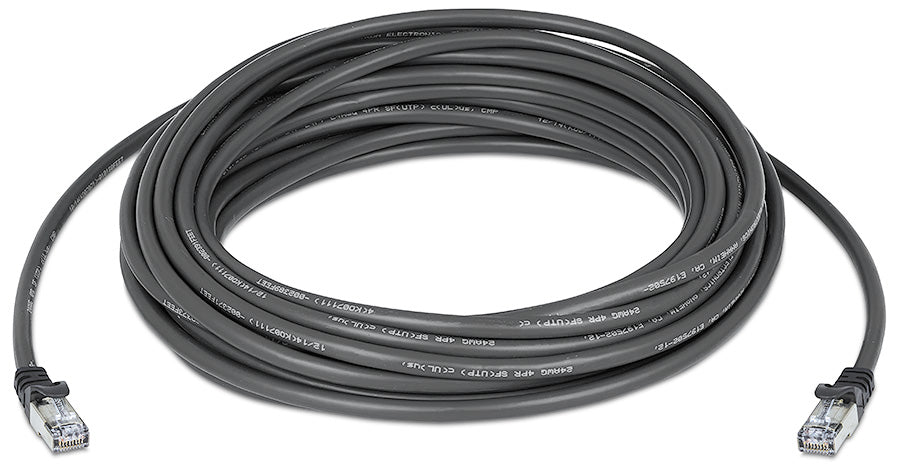

Extron XTP DTP 24/35 (part number 26-702-35) — a 35' (10.6 m) precision-terminated shielded twisted pair assembly for Extron XTP and DTP systems.

This is the length that leaves the rack and goes up into the ceiling. Extron rates the underlying XTP DTP 24 bulk cable to 475 MHz at up to 330 feet (100 m), and has had it independently tested against HDBaseT Alliance requirements, so a 35-foot link is well inside spec even for DTP3 4K/60 at 4:4:4. Both ends arrive fitted with XTP DTP 24 Plugs and molded strain reliefs; the SF/UTP construction puts four 24 AWG twisted pairs inside an overall braid and foil shield.

Key Capabilities

• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements
• Exceeds HDMI error rate specification of under one pixel per billion at 100 m

Where It Is Used

Lecture halls and training rooms with ceiling-mounted projectors, boardrooms fed from an adjacent closet, operations floors driving a wall display, and hospital or laboratory spaces where the head end is deliberately kept out of the clinical area.

Specifications at a Glance

• Cable length: 35' (10.6 m)
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Connectors: Extron XTP DTP 24 Plugs, factory-terminated
• Re-terminable with the Extron CTU 45 Universal RJ-45 Termination Tool

Also referenced as Extron XTPDTP2435, XTP-DTP-24-35, part number 2670235.
