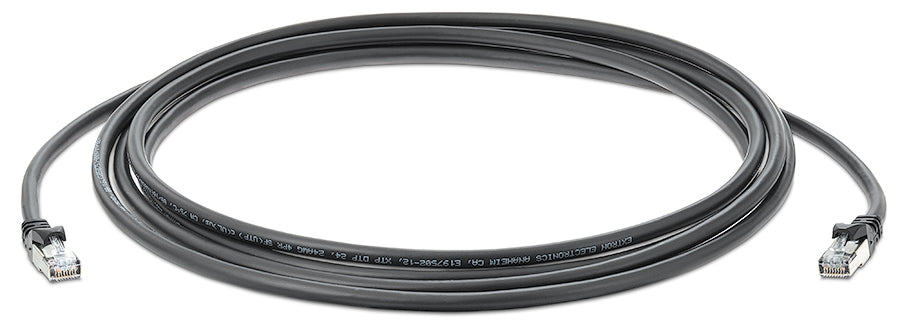

Extron XTP DTP 24/175 (part number 26-702-175) — a 175' (53.3 m) precision-terminated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

This length sits exactly on a published boundary: 175 feet (53 m) is the maximum distance Extron specifies for DTP3 uncompressed 4K/60 at 4:4:4 over XTP DTP 24 cable, so the assembly is the longest one in the family that still carries that mode. Beyond it, DTP2, DTP, XTP II and XTP remain supported. Construction is the standard XTP DTP 24 build: SF/UTP with four 24 AWG twisted pairs inside an overall braid and foil shield, finished with XTP DTP 24 Plugs and molded strain reliefs.

Key Capabilities

• 175' (53.3 m) is the stated distance limit for DTP3 4K/60 at 4:4:4 on this cable
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements
• Exceeds HDMI error rate specification of under one pixel per billion at 100 m

Where It Is Used

Large venues designed right up to the DTP3 distance budget, arenas and convention halls, campus buildings served from a central rack room, and replacement work on systems commissioned around this exact length.

Specifications at a Glance

• Cable length: 175' (53.3 m)
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Connectors: Extron XTP DTP 24 Plugs, factory-terminated
• Status: retired by Extron

Also referenced as Extron XTPDTP24175, XTP-DTP-24-175, part number 26702175.
