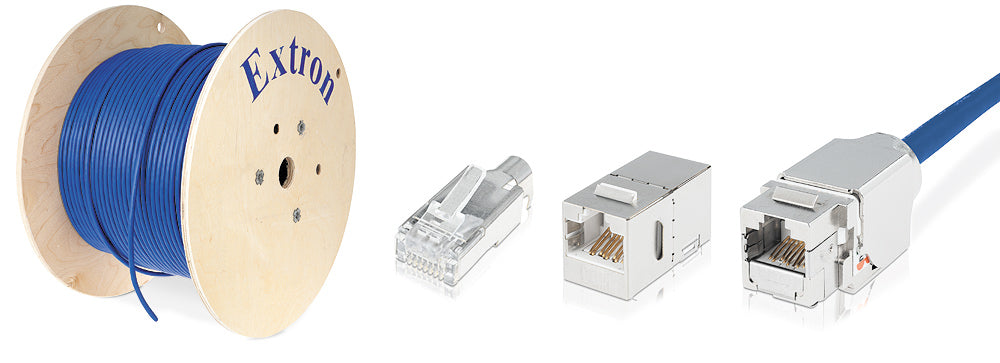

Extron XTP DTP 24/1000 (part number 22-236-03) — a 1,000 ft non-plenum spool of 24 AWG SF/UTP shielded twisted pair cable for Extron XTP Systems and DTP Systems.

The XTP DTP 24 is the workhorse twisted pair in Extron's structured AV line. Four unshielded pairs of 24 AWG solid bare copper are wrapped together in an aluminum/Mylar foil and a 55 percent tinned copper braid, giving the cable its SF/UTP designation and its resistance to the electrical noise that lives in a building's cable tray. Extron certifies it to 475 MHz over the full 330 ft (100 m) reach, and independent testing confirms it meets HDBaseT Alliance performance requirements while beating the HDMI error-rate target of fewer than one pixel error per billion at 100 m.

Key Capabilities

• Certified to 475 MHz bandwidth at distances up to 330 ft (100 m).
• Independently tested and verified against HDBaseT Alliance performance requirements.
• Exceeds the HDMI error-rate specification of fewer than one pixel error per billion at 100 m.
• DTP3 uncompressed 4K/60 at 4:4:4 supported to 175 ft (53 m).
• SF/UTP build: four unshielded 24 AWG pairs inside an overall foil and 55 percent tinned copper braid.
• Pair-to-pair skew capped at 25 ns per 100 m; nominal impedance 100 ohms.
• Gray PVC non-plenum jacket at 0.276 in (7.0 mm) nominal OD; NEC 800 CM, UL 1685, 75 °C.

Where It Is Used

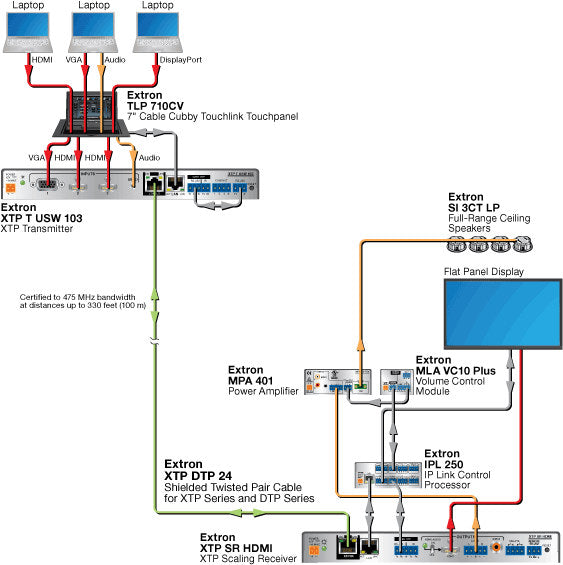

The default cable plant for XTP and DTP room systems: classrooms and lecture halls, training suites, corporate meeting rooms, houses of worship, sports venues, and healthcare AV where transmitters and receivers sit at opposite ends of a building and the pathway is ordinary non-plenum construction.

Specifications at a Glance

• Conductors: 8 insulated (4 unshielded twisted pairs), 24 AWG solid bare copper, 0.021 in (0.53 mm)
• Nominal overall OD 0.276 in (7.0 mm), gray; nominal core OD 0.021 in (0.525 mm)
• Overall shield: Al/Mylar plus tinned copper braid at 55 percent coverage
• Standard length: 1,000 ft (304.8 m) spool; Extron limited lifetime performance warranty

Also referenced as Extron XTPDTP241000, XTP-DTP-24-1000, part number 2223603.
