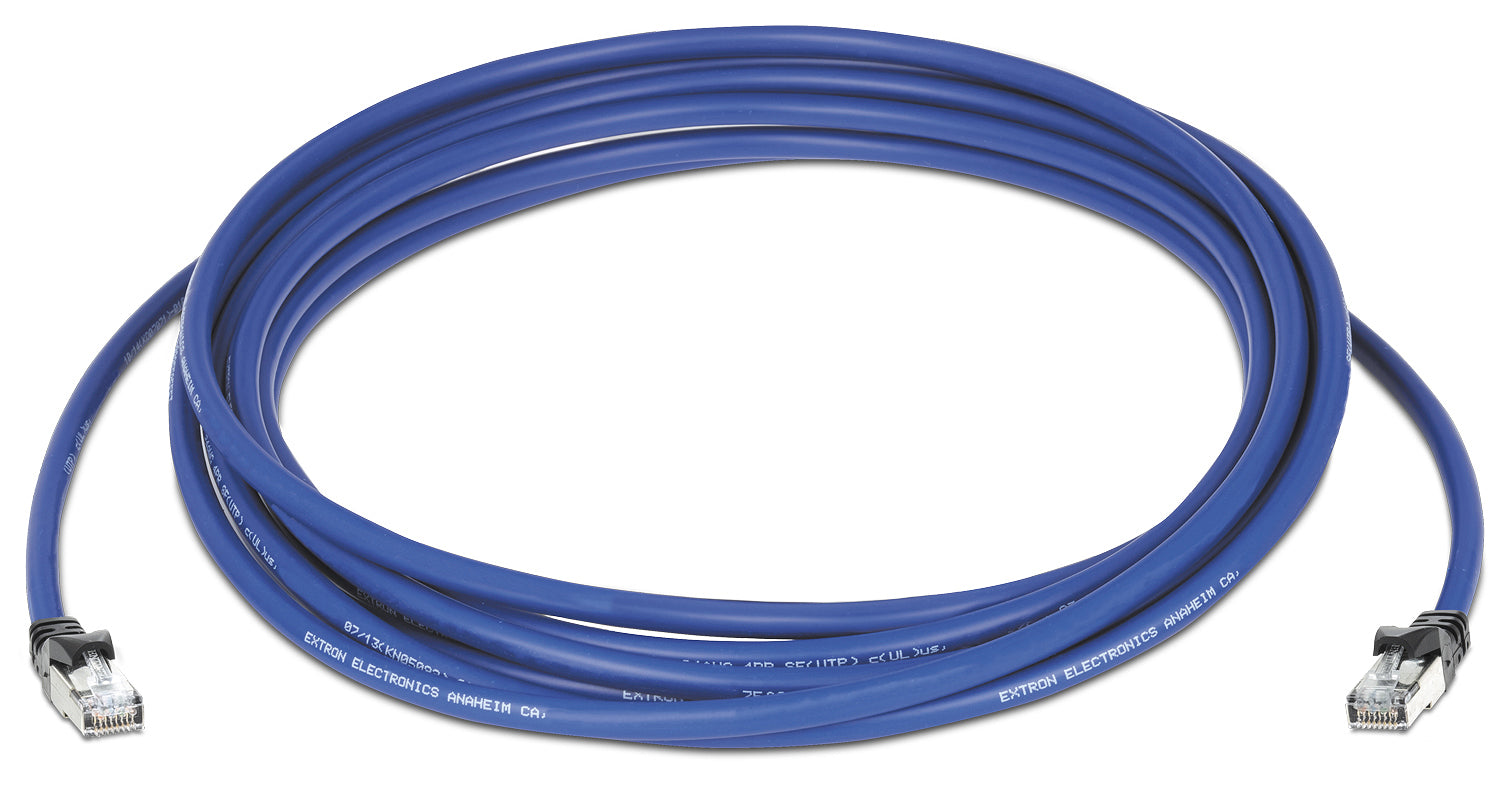

Extron XTP DTP 22P/75 (part number 26-740-75) — a 75' (22.8 m) plenum-rated shielded twisted pair assembly built for Extron XTP and DTP systems.

At seventy-five feet the cable is usually crossing a building, and the failure mode nobody wants is an intermittent 4K link that only misbehaves once the room warms up. Extron's approach is to control both the cable and the termination: four 22 AWG solid copper pairs in an S/FTP arrangement, each pair foil-wrapped and the bundle braided, inside a plenum blue PVC jacket, finished with shielded CAT6A RJ-45 plugs wired to TIA/EIA T568B. The bulk cable is certified to 500 MHz out to 330 feet (100 m), so a run this length sits comfortably inside spec.

Key Capabilities

• Plenum, NEC CMP-rated jacket for return-air ceiling spaces
• Bandwidth certified to 500 MHz at distances up to 330' (100 m)
• Delivers DTP3 uncompressed 4K/60 video at 4:4:4
• S/FTP build with four shielded 22 AWG pairs inside an overall braided shield
• Gold-plated shielded CAT6A RJ-45 plugs at both ends
• Engineered for signal integrity with uncompressed HDMI 2.0b

Where It Is Used

Auditoriums and large lecture halls, hospital and imaging suites with the rack in a separate equipment room, corporate floors where a single transmitter feeds a distant display, and any plenum pathway that rules out riser-rated cable.

Specifications at a Glance

• Cable length: 75' (22.8 m)
• Bandwidth: certified to 500 MHz to 330' (100 m)
• Connectors: shielded CAT6A RJ-45 both ends, gold-plated contacts, T568B
• Cable: S/FTP, four shielded 22 AWG solid copper pairs, plenum blue PVC jacket
• Outer diameter 0.34" (8.6 mm); bend radius 3.5" (89 mm)

Also referenced as Extron XTPDTP22P75, XTP-DTP-22P-75, part number 2674075.
