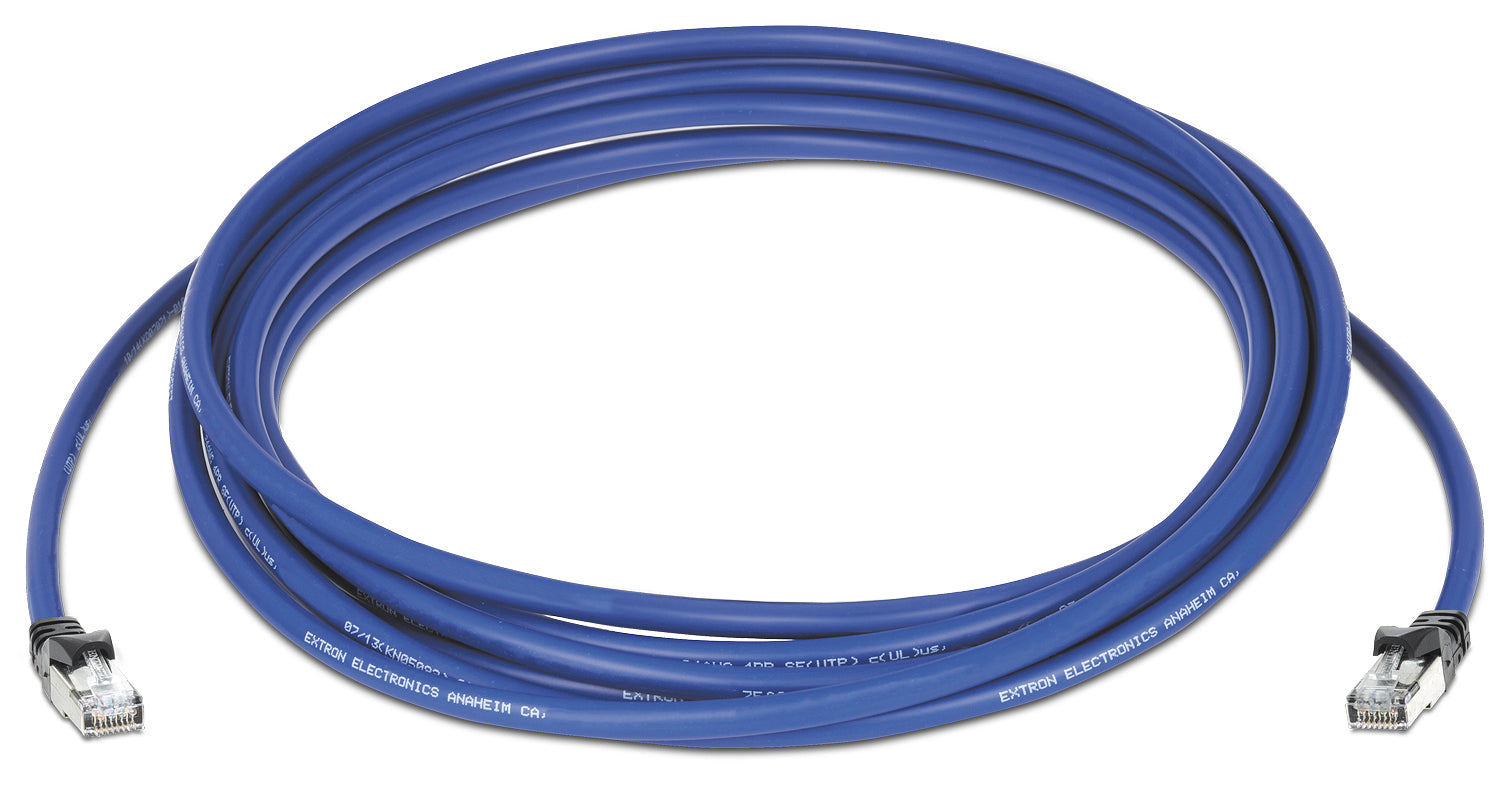

Extron XTP DTP 22P/50 (part number 26-740-50) — a 50' (15.2 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems.

Fifty feet is a floor-to-floor or room-to-closet run, and at 4K/60 4:4:4 there is no margin for a sloppy field termination. Extron removes that variable by finishing both ends in the factory: a shielded CAT6A RJ-45 plug with gold-plated contacts, wired to TIA/EIA T568B, backed by a molded strain relief. Inside the plenum blue PVC jacket are four 22 AWG solid copper pairs, individually foil-wrapped and collectively braided — the S/FTP arrangement Extron uses to hold signal integrity for uncompressed HDMI 2.0b.

Key Capabilities

• Plenum, NEC CMP-rated jacket for return-air ceiling spaces
• Bandwidth certified to 500 MHz at distances up to 330' (100 m)
• Delivers DTP3 uncompressed 4K/60 video at 4:4:4
• S/FTP build with four shielded 22 AWG pairs inside an overall braided shield
• Gold-plated shielded CAT6A RJ-45 plugs at both ends
• Engineered for signal integrity with uncompressed HDMI 2.0b

Where It Is Used

Lecture theatres and divisible meeting suites where the transmitter sits at the lectern and the receiver lives in a rack down the hall, hospital procedure rooms, and any plenum ceiling pathway that has to satisfy a fire marshal as well as a video engineer.

Specifications at a Glance

• Cable length: 50' (15.2 m)
• Bandwidth: certified to 500 MHz to 330' (100 m)
• Connectors: shielded CAT6A RJ-45 both ends, gold-plated contacts, T568B
• Cable: S/FTP, four shielded 22 AWG solid copper pairs, plenum blue PVC jacket
• Outer diameter 0.34" (8.6 mm); bend radius 3.5" (89 mm)

Also referenced as Extron XTPDTP22P50, XTP-DTP-22P-50, part number 2674050.
