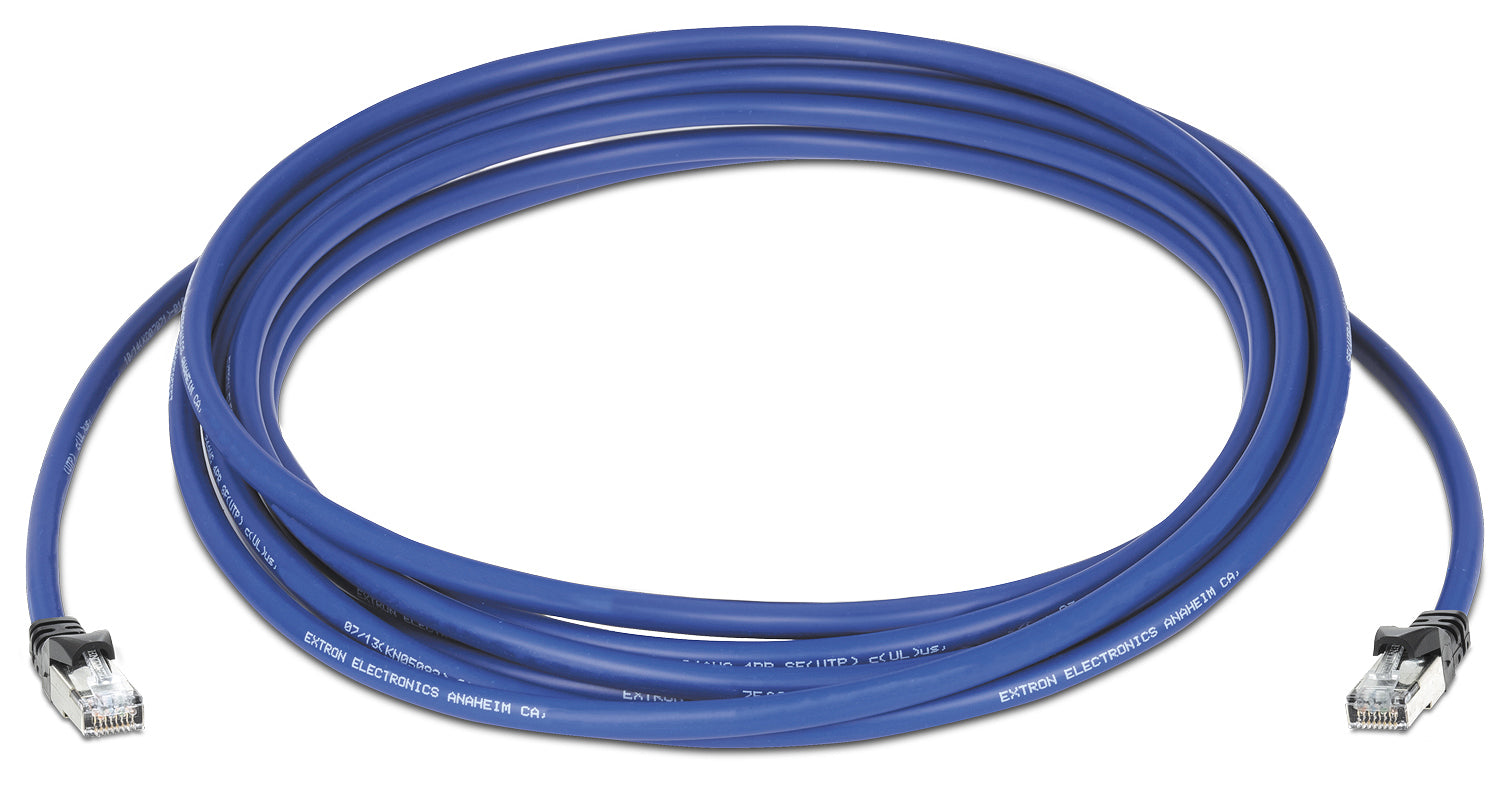

Extron XTP DTP 22P/35 (part number 26-740-35) — a 35' (10.6 m) plenum-rated shielded twisted pair assembly, terminated at the factory for Extron XTP and DTP systems.

Twisted pair is only as good as its terminations, which is why Extron sells these as finished assemblies rather than bulk cable plus a crimp kit. Each end carries a shielded CAT6A RJ-45 plug wired to TIA/EIA T568B with a molded strain relief behind it. The cable is an S/FTP construction: four 22 AWG solid copper pairs, each wrapped in aluminium foil, all sitting inside an overall tinned copper braid. Extron certifies the bulk cable to 500 MHz at distances up to 330 feet (100 m), and the 22P build is the one specified for DTP3 uncompressed 4K/60 at 4:4:4.

Key Capabilities

• Plenum, NEC CMP-rated jacket for return-air ceiling spaces
• Bandwidth certified to 500 MHz at distances up to 330' (100 m)
• Delivers DTP3 uncompressed 4K/60 video at 4:4:4
• S/FTP build with four shielded 22 AWG pairs inside an overall braided shield
• Gold-plated shielded CAT6A RJ-45 plugs at both ends
• Engineered for signal integrity with uncompressed HDMI 2.0b

Where It Is Used

The plenum jacket makes this the version specified where cable shares a return-air ceiling with HVAC: classroom and lecture-hall retrofits, hospital and laboratory builds under strict fire codes, and commercial fit-outs where the AV pathway is not in conduit.

Specifications at a Glance

• Cable length: 35' (10.6 m)
• Bandwidth: certified to 500 MHz to 330' (100 m)
• Connectors: shielded CAT6A RJ-45 both ends, gold-plated contacts, T568B
• Cable: S/FTP, four shielded 22 AWG solid copper pairs, plenum blue PVC jacket
• Outer diameter 0.34" (8.6 mm); bend radius 3.5" (89 mm)

Also referenced as Extron XTPDTP22P35, XTP-DTP-22P-35, part number 2674035.
