Extron XTP DTP 22P/1000 (part number 22-286-03) — a 1,000 ft plenum spool of 22 AWG S/FTP shielded twisted pair cable for Extron XTP Systems and DTP Systems.

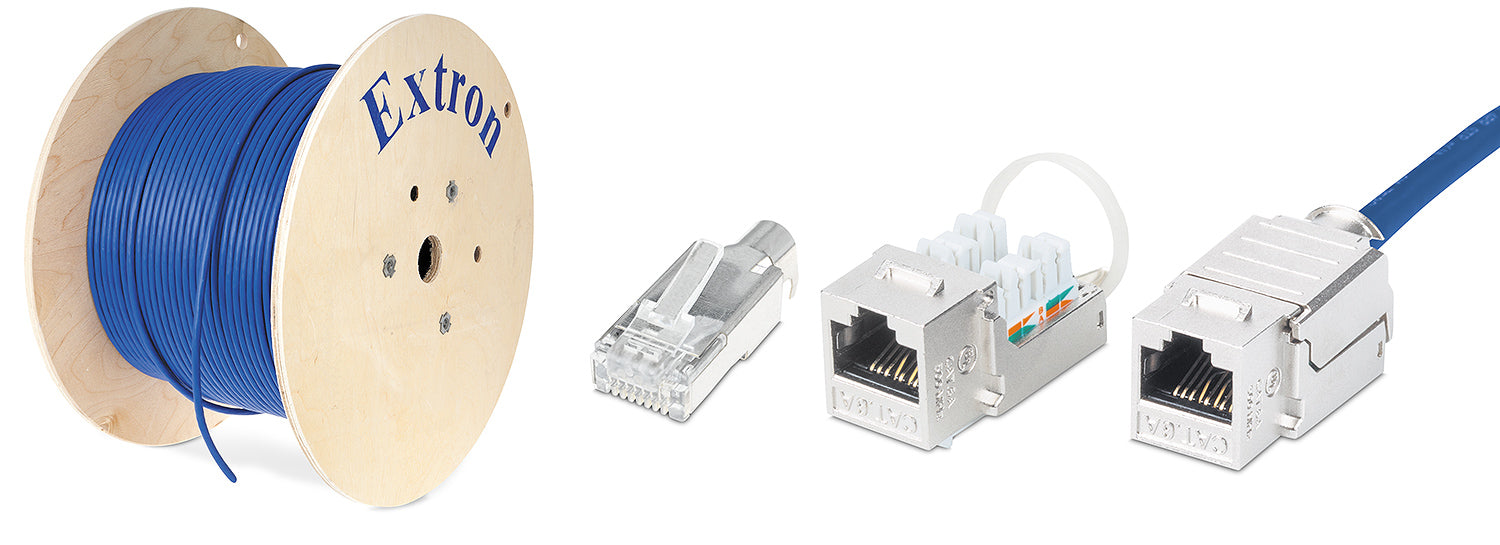

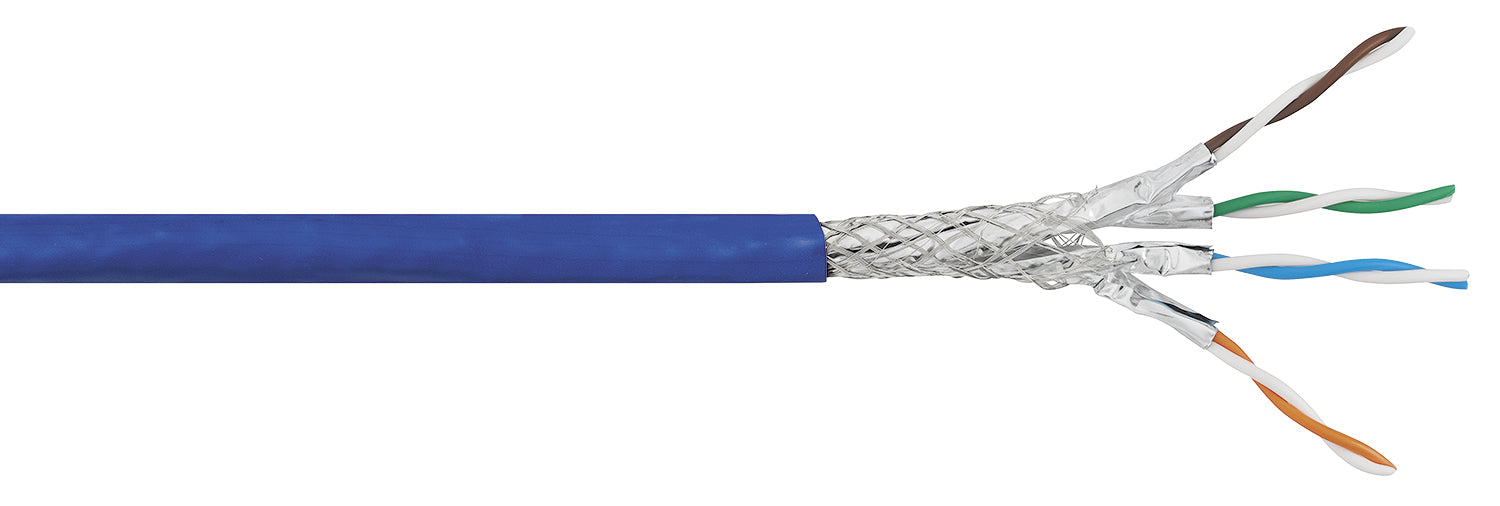

Same electrical performance as the non-plenum XTP DTP 22, different jacket rules. Four individually shielded pairs of 22 AWG solid bare copper sit inside an aluminum/Mylar foil and 40 percent tinned copper braid, insulated with foam FEP and finished in a blue fire-resistant PVC jacket that carries the NEC 800 CMP listing. That means the run can cross a return-air ceiling without conduit while still delivering DTP3 uncompressed 4K/60 at 4:4:4 across the full 330 ft (100 m) reach and holding HDMI 2.0b signal integrity.

Key Capabilities

• NEC 800 CMP plenum listing with UL 910 at 75 °C for air-handling spaces.
• S/FTP design: four shielded 22 AWG solid copper pairs inside an overall braided shield.
• DTP3 uncompressed 4K/60 at 4:4:4 to 330 ft (100 m); HDMI 2.0b signal integrity.
• 500 MHz bandwidth across the full 330 ft (100 m) distance.
• Foam FEP insulation under a blue fire-resistant PVC outer jacket; 0.34 in (8.6 mm) nominal OD.
• Pair-to-pair skew between 8 and 45 ns per 100 m; sweep tested 0.8 MHz to 1 GHz.
• Extron limited lifetime performance warranty.

Where It Is Used

Plenum-governed buildings running XTP II or DTP3 infrastructure: hospital and clinical AV, higher-education classroom blocks, corporate campuses, airports and transit terminals, and government facilities where inspectors require CMP-rated cable above the ceiling grid.

Specifications at a Glance

• Conductors: 8 insulated (4 shielded twisted pairs), 22 AWG solid bare copper, 0.024 in (0.58 mm)
• Nominal overall OD 0.34 in (8.6 mm), blue; nominal impedance 100 ohms
• Overall shield: Al/Mylar plus tinned copper braid at 40 percent coverage
• Standard length: 1,000 ft (304.8 m) spool; NEC 800 CMP, UL 910, 75 °C

Note from Extron: the plenum bulk cable in this family is rated for North America and is not certified for use in most European countries.

Also referenced as Extron XTPDTP22P1000, XTP-DTP-22P-1000, part number 2228603.
