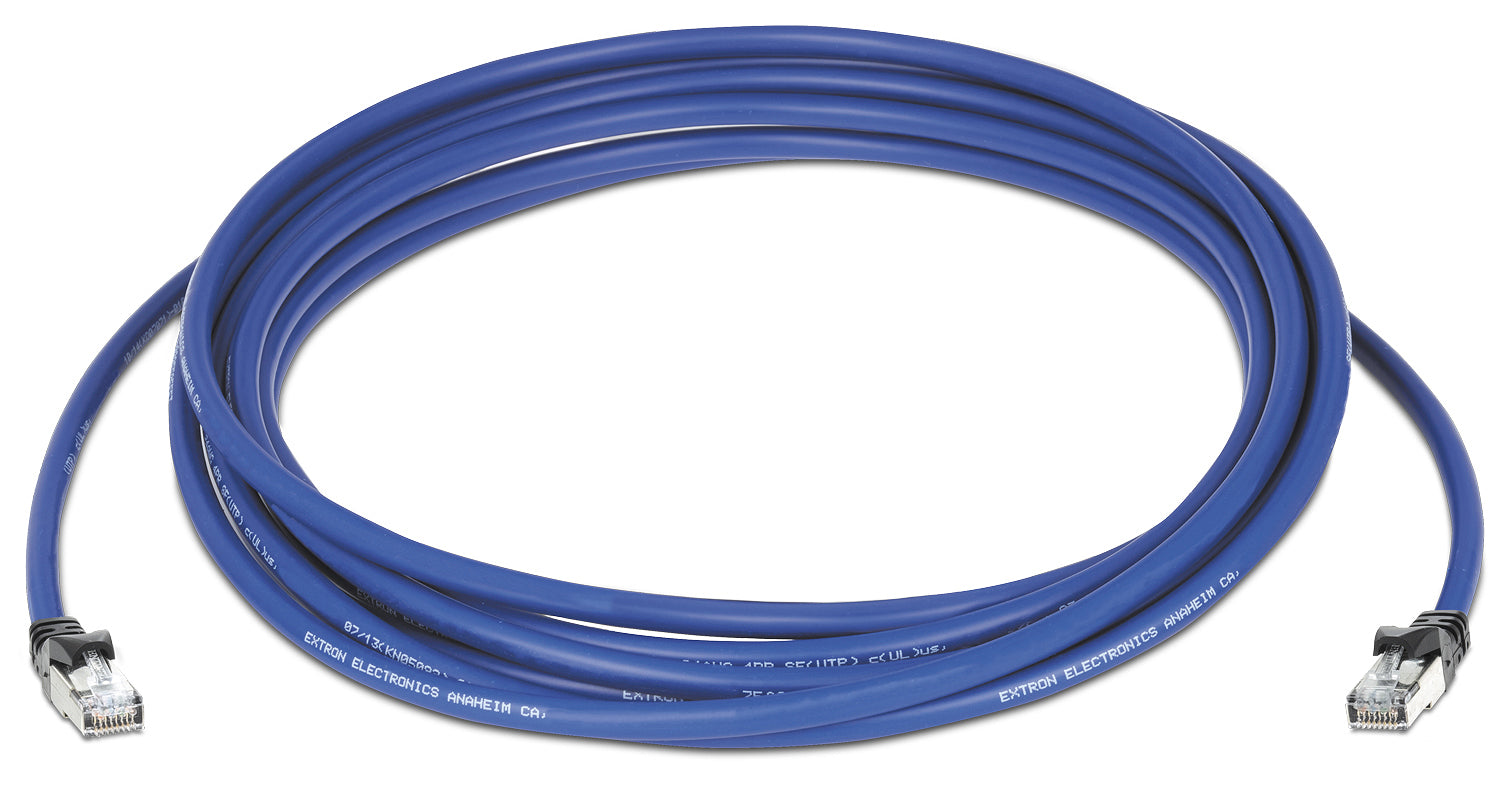

Extron XTP DTP 22P/100 (part number 26-740-100) — the 100' (30.4 m) plenum-rated shielded twisted pair assembly in Extron's XTP DTP 22P Series.

This is the long end of the range, and the one that gets ordered when a transmitter and receiver are on different floors. Extron finishes both ends in the factory with shielded CAT6A RJ-45 plugs, gold-plated contacts and molded strain reliefs, wired to TIA/EIA T568B. The cable is S/FTP: four 22 AWG solid copper pairs, foil-wrapped individually and braided collectively, under a plenum blue PVC jacket. Extron certifies the bulk cable to 500 MHz out to 330 feet (100 m), so a 100-foot assembly runs with substantial headroom for DTP3 4K/60 at 4:4:4.

Key Capabilities

• Plenum, NEC CMP-rated jacket for return-air ceiling spaces
• Bandwidth certified to 500 MHz at distances up to 330' (100 m)
• Delivers DTP3 uncompressed 4K/60 video at 4:4:4
• S/FTP build with four shielded 22 AWG pairs inside an overall braided shield
• Gold-plated shielded CAT6A RJ-45 plugs at both ends
• Engineered for signal integrity with uncompressed HDMI 2.0b

Where It Is Used

Multi-floor corporate fit-outs, hospitals and teaching campuses where the head end sits in a central equipment room, large auditoriums, and any plenum ceiling route that has to satisfy fire code while carrying a full-bandwidth 4K link.

Specifications at a Glance

• Cable length: 100' (30.4 m)
• Bandwidth: certified to 500 MHz to 330' (100 m)
• Connectors: shielded CAT6A RJ-45 both ends, gold-plated contacts, T568B
• Cable: S/FTP, four shielded 22 AWG solid copper pairs, plenum blue PVC jacket
• Outer diameter 0.34" (8.6 mm); bend radius 3.5" (89 mm)

Also referenced as Extron XTPDTP22P100, XTP-DTP-22P-100, part number 26740100.
