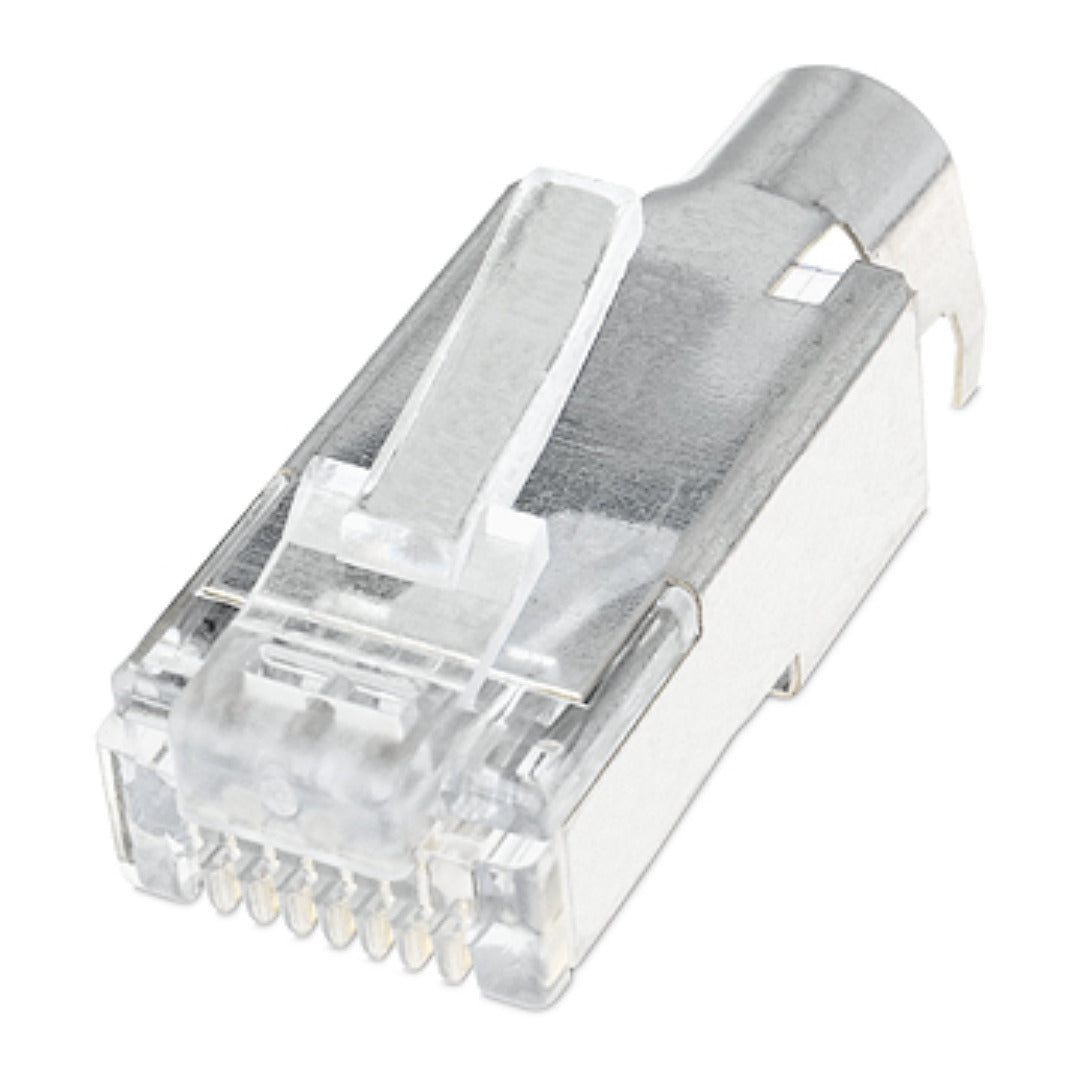

Extron XTP DTP 22 RJ-45 Plug (part number 101-037-01) — a package of ten Category 6A shielded RJ-45 plugs made to terminate Extron XTP DTP 22 shielded twisted pair cable.

A field-terminated twisted pair link is only as good as the connector on the end of it, and that is the whole argument for using Extron's own plug on Extron's own cable. This kit is built specifically for XTP DTP 22 bulk cable in both plenum and non-plenum form, accepting 22 AWG and 23 AWG conductors. An integrated alignment guide separates the four pairs before they enter the plug body, which keeps the untwist short and holds crosstalk down. Metal strain relief and ground bonding carry the cable shield through to the connector rather than stopping it at the jacket.

Key Capabilities

• Category 6A shielded RJ-45 plug matched to Extron XTP DTP 22 plenum and non-plenum cable.
• Accepts 22 AWG and 23 AWG twisted pair conductors.
• Conductor alignment guide separates pairs to reduce crosstalk and signal interference.
• Metal strain relief with ground bonding maintains shield continuity.
• Gold-plated contacts for reliable mating in high EMI/RFI environments.
• Wires to either TIA/EIA 568A or 568B.
• Supplied ten plugs to a package.

Where It Is Used

Custom-length XTP and DTP links terminated on site: rack tails cut to fit, lectern and credenza drops, ceiling-mounted transmitter and receiver runs, and retrofit work in broadcast, healthcare, education and corporate spaces where pre-made assemblies would leave slack or come up short.

Specifications at a Glance

• Category 6A shielded RJ-45 plug, gold-plated contacts
• Conductor range: 22 AWG and 23 AWG twisted pair
• Wiring standards: TIA/EIA 568A and 568B
• Package quantity: 10 plugs

Also referenced as Extron XTPDTP22RJ45Plug, XTP-DTP-22-RJ-45-Plug, part number 10103701.
