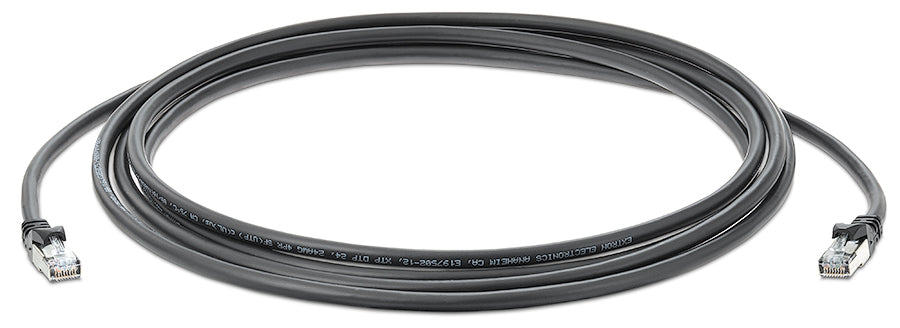

Extron XTP DTP 22/35 (part number 26-739-35) — a 35 ft (10.6 m) S/FTP cable built and terminated by Extron for XTP Systems and DTP systems.

This length usually crosses a ceiling void or drops down a wall, which means it will sit near lighting circuits and dimmers for most of its run. The four individually foil-shielded 22 AWG copper pairs, plus the overall tinned copper braid, are what keep that environment out of the signal. Because the assembly is certified to 500 MHz and rated for DTP3 uncompressed 4K/60 at 4:4:4 across 330 ft, a 35 ft link runs well inside spec even with couplers in the path.

Key Capabilities

• Bandwidth certified to 500 MHz at distances up to 330 ft (100 m).
• Carries DTP3 uncompressed 4K/60 video at 4:4:4 without compression.
• Four shielded twisted pairs inside an overall braided shield.
• Gold-plated contacts on shielded CAT6A RJ45 male connectors.
• Compatible with DTP3, DTP2, DTP, XTP II and XTP systems.
• Molded strain relief reduces flex fatigue at the connector sleeve.
• Gray PVC jacket, non-plenum, NEC CM-rated.

Where It Is Used

Thirty-five feet handles ceiling-to-rack projector drops, cross-room runs in divisible training spaces, and stage-to-booth links in auditoriums, houses of worship and lecture theatres where the cable path is neither short nor a full building pull.

Specifications at a Glance

• Length: 35 ft (10.6 m)
• Shielding: S/FTP, AL foil per pair plus tinned copper braid
• Termination standard: TIA/EIA T568B
• Bend radius: 3.5 in (89 mm)
• Regulatory: NEC 800, CM UL 1685, RoHS, WEEE

Also referenced as Extron XTPDTP2235, XTP-DTP-22-35, part number 2673935.
