Extron XTP DTP 22/200 200 ft Shielded Twisted Pair Cable
- • Extron XTP DTP 22/200 200 ft STP cable
- • 500 MHz certified up to 330 ft (100 m)
- • Carries uncompressed DTP3 4K/60 at 4:4:4
- • Sales, replacement and exchange
- • Part# 26-739-200 / 26739200
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

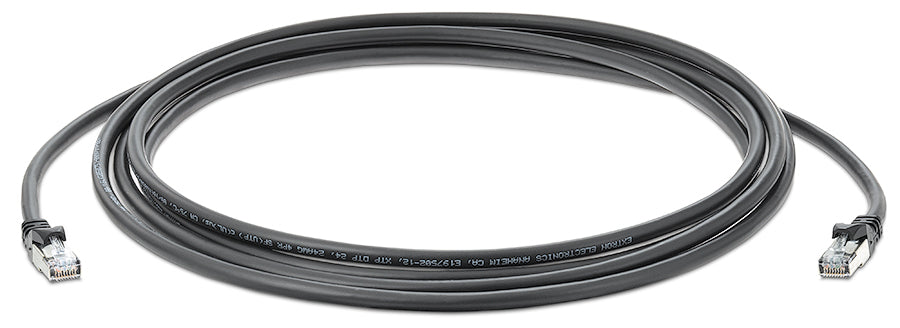

Extron XTP DTP 22/200 (part number 26-739-200) - a 200 ft (61.0 m) S/FTP twisted pair cable built for long DTP3 and XTP links.
Two hundred feet is beyond what most twisted pair AV cable will carry cleanly at 4K/60. Extron reaches it by specifying solid 22 AWG copper conductors instead of the thinner gauge typical of network patch cable, then shielding each of the four pairs in aluminium foil and enclosing the bundle in a tinned copper braid. The finished assembly holds a 500 MHz bandwidth certification to 330 ft and is rated to move DTP3 uncompressed 4K/60 at 4:4:4 that entire distance, so a 200 ft leg leaves room for couplers and punch-downs.
Key Capabilities
- Certified to 500 MHz bandwidth at distances up to 330 ft (100 m).
- Carries DTP3 uncompressed 4K/60 video at 4:4:4 with no compression.
- Four solid 22 AWG copper pairs, individually foil-shielded.
- Overall tinned copper braid rejects external interference.
- Shielded CAT6A RJ45 male plugs with gold-plated contacts at both ends.
- Rated for DTP3, DTP2, DTP, XTP II and XTP systems.
- Non-plenum, NEC CM-rated gray PVC jacket.
Where It Is Used
Chosen for arena and stadium signage feeds, museum and visitor-centre galleries, large transport terminals and multi-storey office atria - anywhere a display sits a long way from the rack but a fibre conversion is not warranted.
Specifications at a Glance
- Length: 200 ft (61.0 m)
- Shielding: S/FTP, AL foil per pair plus overall tinned copper braid
- Termination standard: TIA/EIA T568B
- Cable outer diameter: 0.24 in (6.1 mm); bend radius 3.5 in (89 mm)
- Warranty: Limited Lifetime Performance
Frequently asked questions about the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft
Does Ampronix sell the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft (26-739-200). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft. Call Ampronix for a quote.
Is the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft listed under other names?
Yes. The Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft is also referenced as Extron XTPDTP22200, XTP-DTP-22-200, part number 26739200.
What are the key features of the Extron XTP DTP 22/200 Shielded Twisted Pair Cable 200 ft?
Key points: Certified to 500 MHz bandwidth at distances up to 330 ft (100 m); Carries DTP3 uncompressed 4K/60 video at 4:4:4 with no compression; Four solid 22 AWG copper pairs, individually foil-shielded; Overall tinned copper braid rejects external interference. Call Ampronix to confirm details for your application.
Also referenced as Extron XTPDTP22200, XTP-DTP-22-200, part number 26739200.
