Extron XTP DTP 22/12 12 ft Shielded Twisted Pair Cable
- • Extron XTP DTP 22/12 12 ft shielded twisted pair cable
- • Certified to 500 MHz up to 330 ft (100 m)
- • Four foil-shielded 22 AWG solid copper pairs
- • Sales, replacement and exchange
- • Part# 26-739-12 / 2673912
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

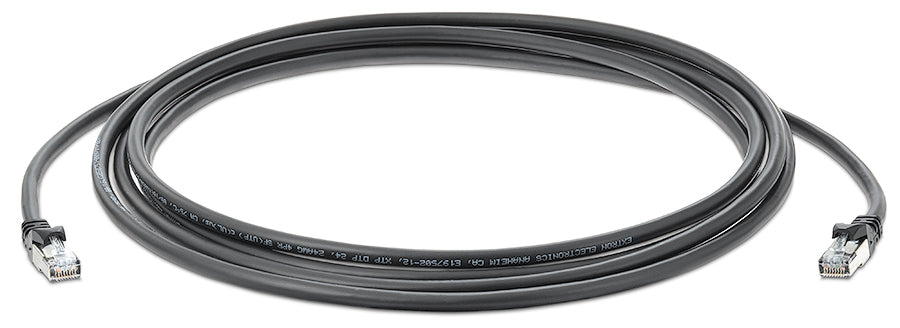

Extron XTP DTP 22/12 (part number 26-739-12) - a 12 ft (3.6 m) S/FTP twisted pair cable factory-terminated for XTP Systems and DTP systems.
Twelve feet is the length that gets a signal out of the rack and across the room without coiling. Extron makes it from XTP DTP 22 bulk cable: four solid 22 AWG copper pairs, each in its own aluminium foil wrap, all inside a tinned copper braid. That construction is why the assembly is certified to 500 MHz and why a DTP3 endpoint can push uncompressed 4K/60 at 4:4:4 through it without the picture softening. The RJ-45 plugs are Extron's own, molded with strain relief rather than crimped on site.
Key Capabilities
- Certified to 500 MHz bandwidth for system runs up to 330 ft (100 m).
- Passes DTP3 uncompressed 4K/60 video at 4:4:4 chroma sampling.
- Four foil-shielded 22 AWG solid copper pairs under an overall braid.
- Gold-plated contacts in shielded CAT6A RJ45 male connectors both ends.
- Approved across DTP3, DTP2, DTP, XTP II and XTP systems.
- 0.24 in outer diameter routes easily through tight cable management.
- Backed by Extron Limited Lifetime Performance warranty.
Where It Is Used
A dozen feet reaches from a rack to a nearby wall plate, from a lectern to a floor box, or from a ceiling-mounted receiver to a projector input in classrooms, meeting rooms, houses of worship and control rooms.
Specifications at a Glance
- Length: 12 ft (3.6 m)
- Termination standard: TIA/EIA T568B
- Bend radius: 3.5 in (89 mm)
- Jacket: gray PVC, non-plenum, NEC CM-rated
- Regulatory: NEC 800, CM UL 1685, RoHS, WEEE
Frequently asked questions about the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft
Does Ampronix sell the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft (26-739-12). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft. Call Ampronix for a quote.
Is the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft listed under other names?
Yes. The Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft is also referenced as Extron XTPDTP2212, XTP-DTP-22-12, part number 2673912.
What are the key features of the Extron XTP DTP 22/12 Shielded Twisted Pair Cable 12 ft?
Key points: Certified to 500 MHz bandwidth for system runs up to 330 ft (100 m); Passes DTP3 uncompressed 4K/60 video at 4:4:4 chroma sampling; Four foil-shielded 22 AWG solid copper pairs under an overall braid; Gold-plated contacts in shielded CAT6A RJ45 male connectors both ends. Call Ampronix to confirm details for your application.
Also referenced as Extron XTPDTP2212, XTP-DTP-22-12, part number 2673912.
