Extron XTP DTP 22/1000 22 AWG S/FTP Twisted Pair Cable 22-285-03
Extron XTP DTP 22/1000 22 AWG S/FTP Twisted Pair Cable 22-285-03
Extron XTP DTP 22/1000 Shielded Twisted Pair Cable
- • S/FTP build: four shielded 22 AWG solid copper pairs in an overall braided shield
- • DTP3 uncompressed 4K/60 video at 4:4:4 out to 330 ft (100 m)
- • 500 MHz certified bandwidth across the full 330 ft (100 m) run
- • Al/Mylar foil plus 40% tinned copper braid rejects outside interference
- • Pair-to-pair skew held between 8 and 45 ns per 100 m
- • Gray non-plenum PVC jacket, 0.34 in OD, NEC 800 CM and UL 1685 75 C
- • 1,000 ft (304.8 m) spool with Extron limited lifetime performance warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

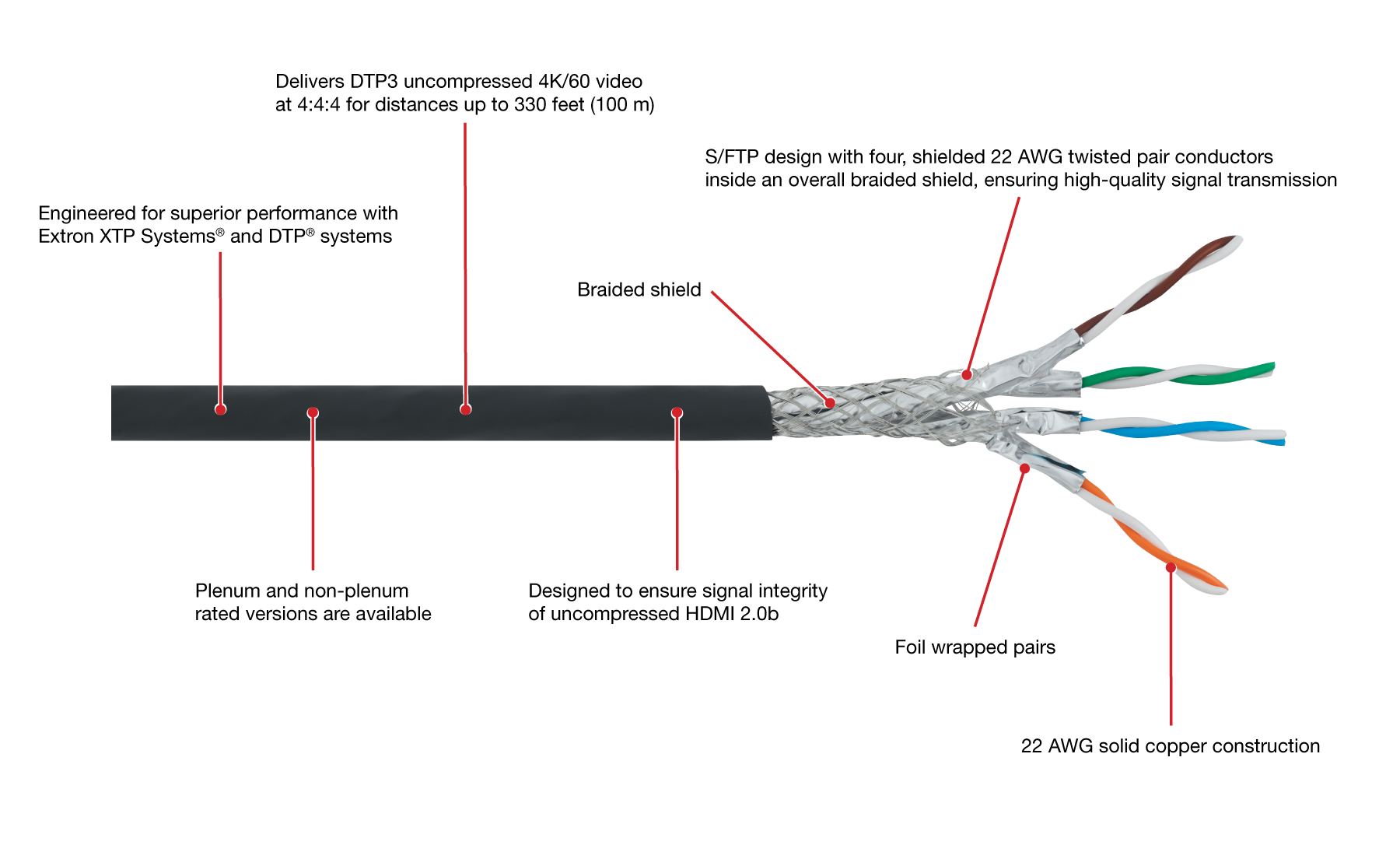

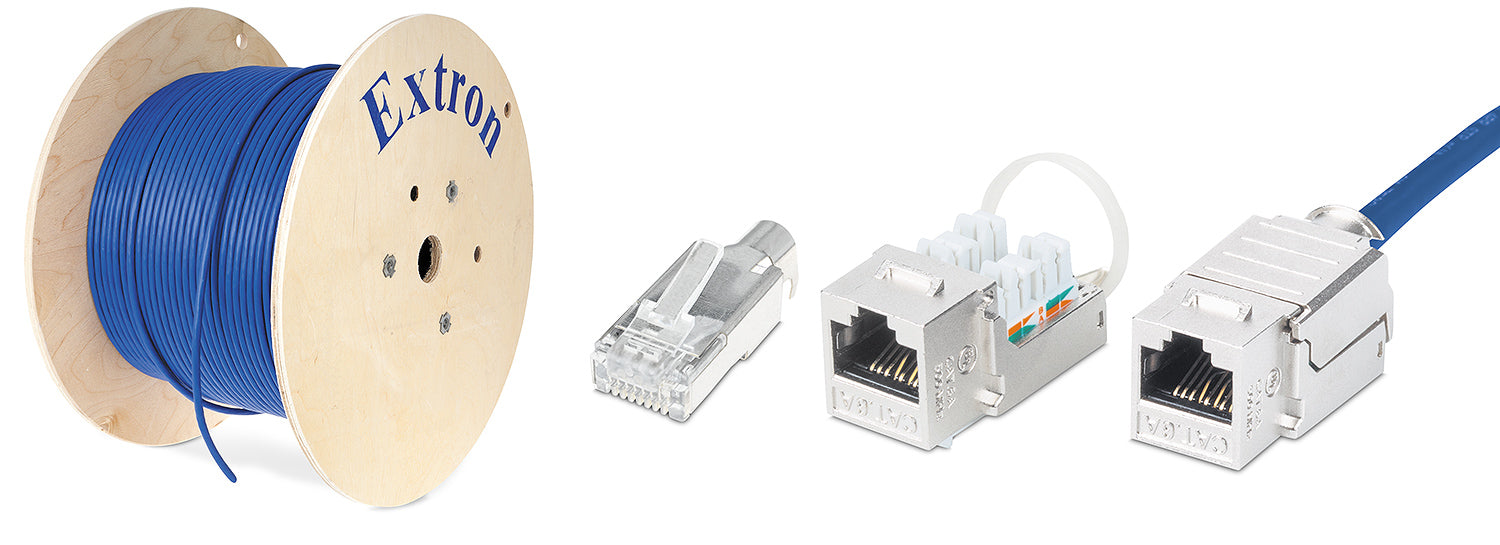

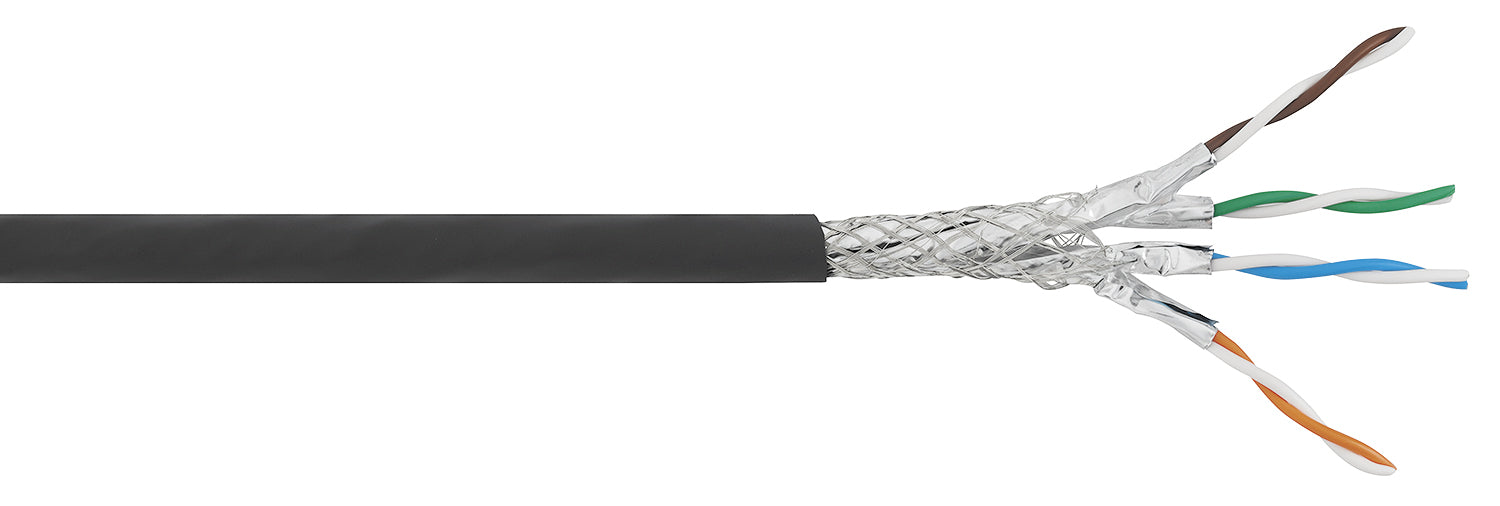

Extron XTP DTP 22/1000 (part number 22-285-03) — a 1,000 ft non-plenum spool of 22 AWG S/FTP shielded twisted pair cable built for Extron XTP Systems and DTP Systems.
DTP3 raised the bar on what the cable plant has to deliver, and this is the cable Extron built to meet it. Four twisted pairs of 22 AWG solid bare copper are individually shielded, then wrapped again in an aluminum/Mylar foil and 40 percent tinned copper braid — the S/FTP arrangement that keeps an uncompressed 4K/60 4:4:4 signal clean over a full 330 ft (100 m) run. Pair-to-pair skew is held between 8 and 45 ns per 100 m, and every reel is sweep tested from 0.8 MHz to 1 GHz. The gray PVC jacket measures 0.34 in and is rated NEC 800 CM.
Key Capabilities
- S/FTP construction: four shielded 22 AWG solid copper pairs inside an overall braided shield.
- Carries DTP3 uncompressed 4K/60 video at 4:4:4 to 330 ft (100 m) and preserves HDMI 2.0b signal integrity.
- 500 MHz bandwidth at the full 330 ft (100 m) distance.
- Aluminum/Mylar foil plus 40 percent tinned copper braid for interference rejection.
- Nominal impedance of 100 ohms; nominal outside diameter 0.34 in (8.6 mm).
- Non-plenum gray PVC jacket over solid polyolefin insulation; NEC 800 CM, UL 1685, 75 °C.
- Backed by an Extron limited lifetime performance warranty.
Where It Is Used
Structured AV backbones built on XTP II and DTP3 endpoints: divisible conference centers, university lecture halls, hospital and surgical video distribution, courtroom and legislative systems, and control rooms where a single twisted pair run has to carry 4K video, audio, control and power the length of a building.
Specifications at a Glance
- Conductors: 8 insulated (4 shielded twisted pairs), 22 AWG solid bare copper, 0.024 in (0.58 mm)
- Nominal overall OD 0.34 in (8.6 mm), gray; nominal core OD 0.024 in (0.61 mm)
- Overall shield: Al/Mylar plus tinned copper braid at 40 percent coverage
- Standard length: 1,000 ft (304.8 m) spool; NEC 800 CM, UL 1685, 75 °C
Also referenced as Extron XTPDTP221000, XTP-DTP-22-1000, part number 2228503.
