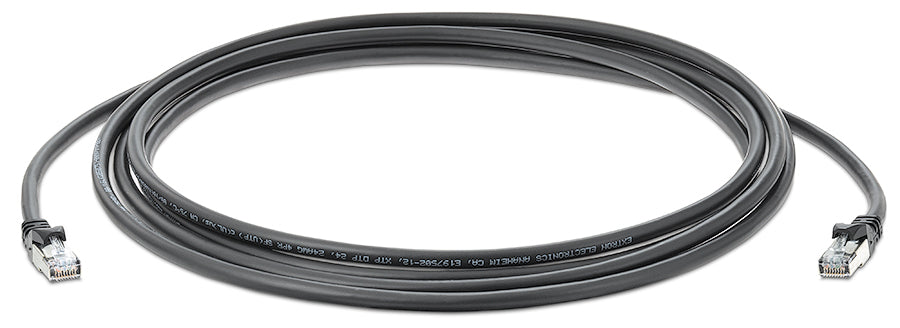

Extron XTP DTP 22/100 (part number 26-739-100) — a 100 ft (30.4 m) precision-terminated S/FTP cable for XTP Systems and DTP systems.

Once a run passes a hundred feet, the cable itself is the limiting component in a DTP3 link. Extron addresses that with construction rather than claims: four solid 22 AWG copper pairs, each wrapped in aluminium foil, gathered inside a tinned copper braid and jacketed in gray PVC. The design carries a 500 MHz bandwidth certification good to 330 ft, and Extron rates it to move DTP3 uncompressed 4K/60 at 4:4:4 the full distance. Ends are factory-terminated with XTP DTP 22 RJ-45 plugs and molded strain relief.

Key Capabilities

• Certified to 500 MHz bandwidth at distances up to 330 ft (100 m).
• Carries DTP3 uncompressed 4K/60 at 4:4:4 with no compression stage.
• Preserves signal integrity for uncompressed HDMI 2.0b.
• S/FTP construction with four shielded pairs under an overall braid.
• Shielded CAT6A RJ45 male plugs, gold-plated contacts.
• Approved across DTP3, DTP2, DTP, XTP II and XTP systems.
• NEC CM-rated non-plenum jacket, 0.24 in outer diameter.

Where It Is Used

One hundred feet reaches between floors or across a building wing: central rack to remote display, control room to studio floor, or head-end to a distant digital signage endpoint in campuses, hospitals and corporate headquarters.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• Conductors: solid bare copper 22 AWG
• Termination standard: TIA/EIA T568B
• Connector dimensions: 0.85 in L x 0.30 in W x 0.46 in thick, excluding tab
• Warranty: Limited Lifetime Performance

Also referenced as Extron XTPDTP22100, XTP-DTP-22-100, part number 26739100.
