Extron XTP CP 4o Fiber 4K SM Fiber I/O Board
- • Four LC singlemode fiber outputs extend 4K video up to 10 km from one XTP board
- • Passes embedded audio, bidirectional RS-232, and IR alongside video on one fiber run
- • Four RJ-45 Ethernet pass-through ports at 10/100Base-T for control network extension
- • Supports 4K (4096x2160) at 24 Hz and UHD (3840x2160) at 30 Hz with 4:4:4 chroma sampling
- • Draws just 19 watts, powered directly by the XTP or XTP II CrossPoint enclosure
- • Backed by Extron's 3-year parts-and-labor warranty
- • Mounts directly into XTP CrossPoint and XTP II CrossPoint matrix switcher frames
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

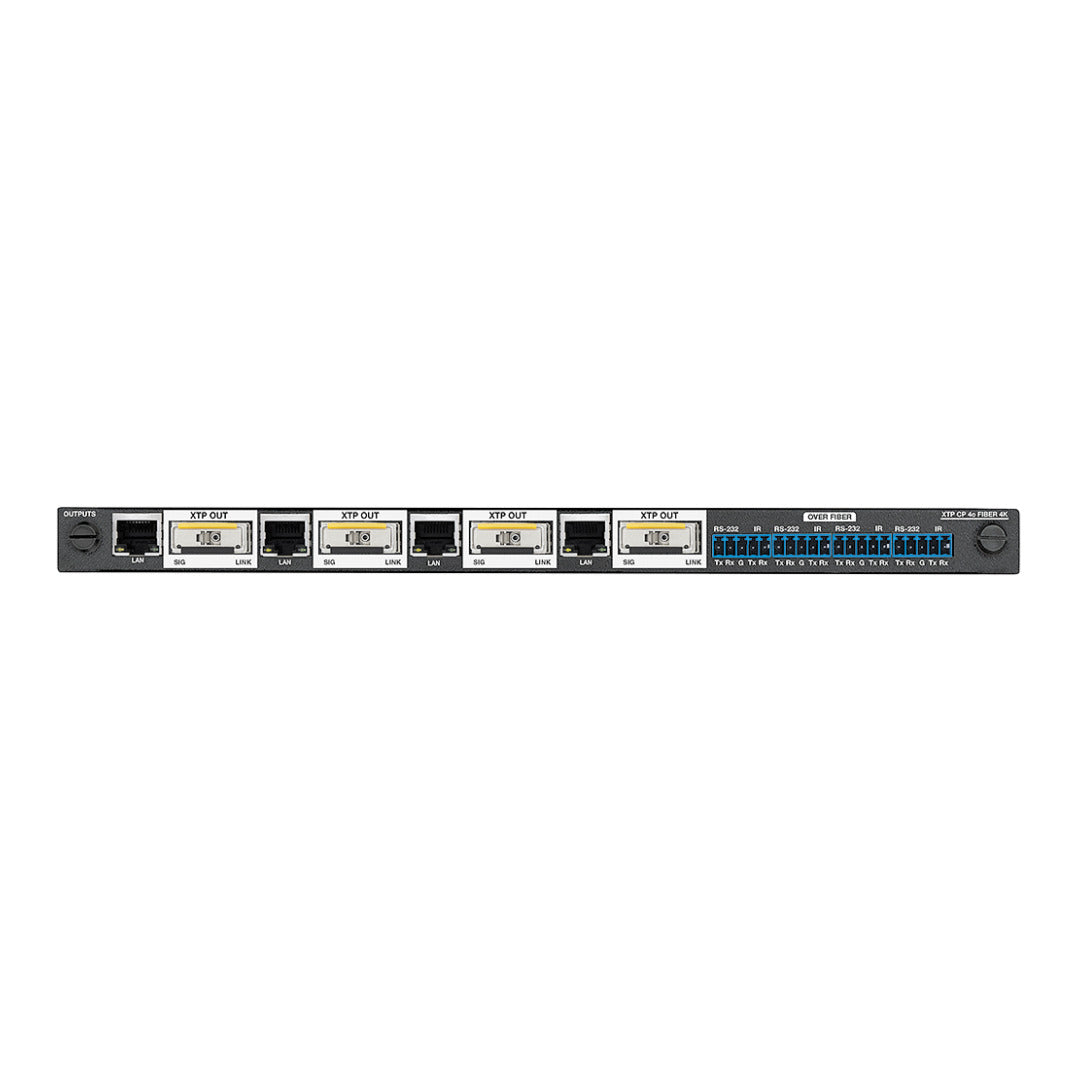

Extron XTP CP 4o Fiber 4K SM (part number 70-986-02) — a singlemode fiber output board for XTP-based 4K matrix switching.
This four-channel output board plugs into an XTP CrossPoint or XTP II CrossPoint frame and converts the switcher's internal video, audio, and control data into four independent singlemode fiber runs. Because RS-232, IR, and 10/100 Ethernet ride the same LC fiber connection as the video, integrators eliminate the separate copper control wiring that longer AV runs typically require, while keeping full compatibility with the XTP endpoint ecosystem at the display end.
Key Capabilities
- Four LC singlemode fiber outputs reach up to 10 km (6.2 miles) per run
- Carries 4K (4096x2160) at 24 Hz and UHD (3840x2160) at 30 Hz with 4:4:4 chroma sampling
- Passes bidirectional RS-232 and IR control alongside video on the same fiber
- Four RJ-45 Ethernet pass-through ports operate at 10/100Base-T
- Draws 19 watts, powered entirely from the host XTP CrossPoint enclosure
Where It Is Used
Fiber output boards like this one turn up in campus-wide AV distribution, large auditoriums, and multi-building command centers where copper twisted-pair runs can't cover the distance between the matrix switcher and the displays. Government and broadcast facilities also favor the singlemode path for its immunity to electrical interference over long conduit runs.
Specifications at a Glance
- 4 LC fiber connectors, 8.5 Gbps optical data rate
- Singlemode reach: 10 km (6.2 miles)
- Max video data rate: 8.91 Gbps (2.97 Gbps per color)
- Power consumption: 19 watts, supplied by the XTP enclosure
- 3-year Extron parts-and-labor warranty
Also referenced as Extron XTPCP4oFiber4KSM, XTP-CP-4o-Fiber-4K-SM, part number 7098602.
