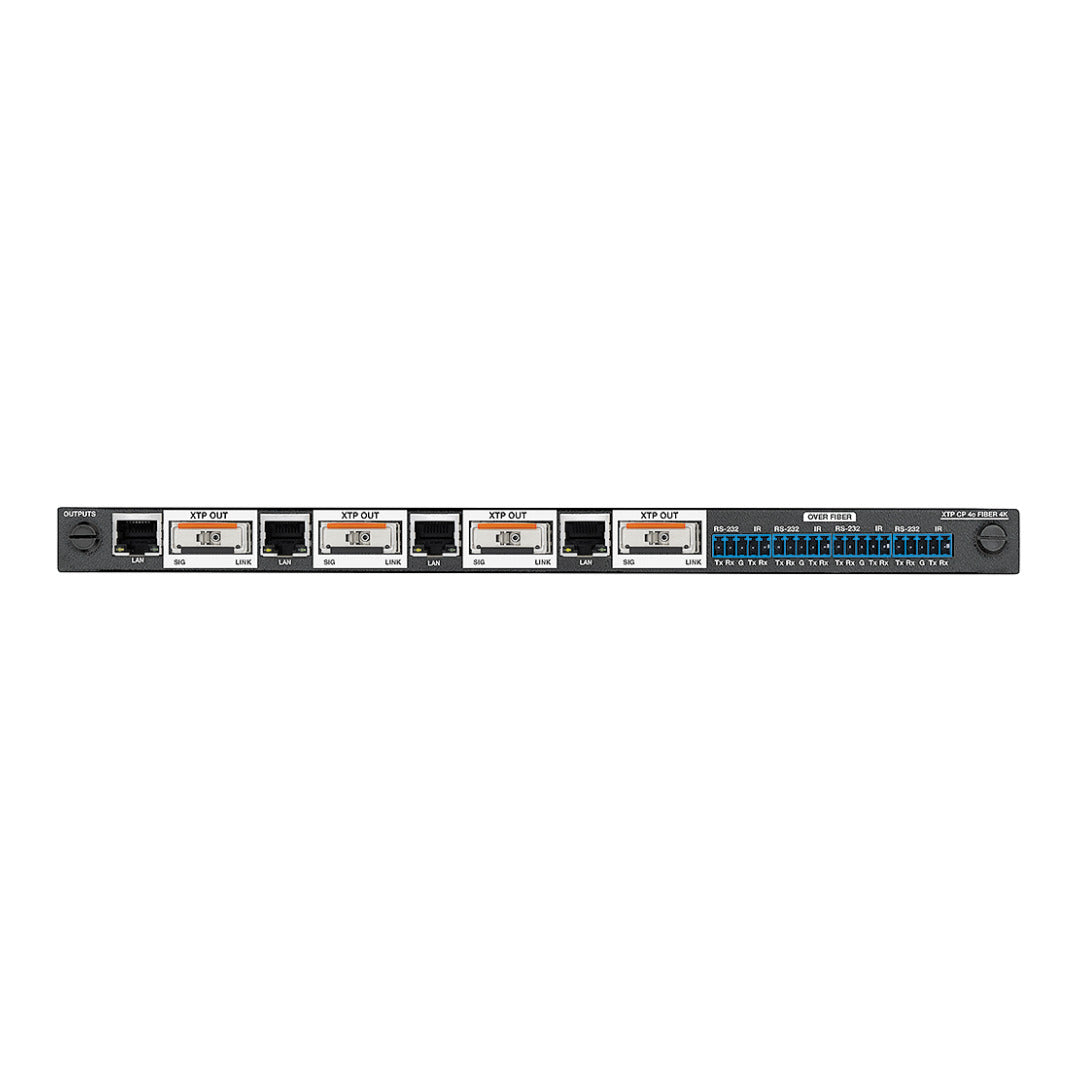

Extron XTP CP 4o Fiber 4K MM (part number 70-986-01) — a four-output multimode fiber optic board for the XTP CrossPoint and XTP II CrossPoint matrix family.

This board sends four fiber-connected signals out of an XTP CrossPoint frame over LC multimode cable, carrying 4K video with embedded audio, bidirectional RS-232 and IR, and 10/100 Ethernet on the same optical run. With an 8.5 Gbps optical data rate and an 8 dB maximum loss budget, it reaches up to 500 m on 50 µm OM4 laser-optimized cable, letting integrators drive displays and endpoints beyond the distance limits of copper CATx.

Key Capabilities

Four multimode LC fiber outputs reach up to 500 m (1640 ft) on OM4 cable
8.5 Gbps optical data rate; 8.91 Gbps max. video data rate
Bidirectional RS-232 (300 to 115200 baud) and IR pass-through on every port
10/100Base-T Ethernet pass-through alongside each fiber signal
-13 dBm receiver sensitivity with an 8 dB maximum optical loss budget
Supports resolutions up to 4096x2160 @24 Hz and UHD @60 Hz with 4:2:0 subsampling

Where It Is Used

Campus and multi-building XTP CrossPoint deployments, broadcast facilities, and command centers where displays or endpoints sit farther from the matrix than copper CATx can reliably reach.

Specifications at a Glance

Multimode reach: 500 m (1640 ft) on OM4, 400 m on OM3, 300 m on OM2, 200 m on OM1
Connectors: 4 LC fiber, 4 RJ-45 (Ethernet pass-through)
Data rate: 8.5 Gbps optical
Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure, 19 W
Warranty: 3 years parts and labor

Also referenced as Extron XTPCP4oFiber4KMM, XTP-CP-4o-Fiber-4K-MM, part number 7098601.

Specifications

Part Number: 70-986-01

Manufacturer: Extron

Model: XTP CP 4o Fiber 4K MM

Condition: New

Max. 4K Capabilities: 4096x2160 at 24 Hz (4:4:4, 8-bit); 3840x2160 at 30 Hz and 60 Hz (4:2:0, 8-bit)

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8 bits per color

Signal Type (General): Refer to XTP endpoints

Max. Video Data Rate: 8.91 Gbps (2.97 Gbps per color)

Video — Gain: Unity

Video — Resolution Range: Up to 2560x1600 @60 Hz (reduced blanking), 1080p @120 Hz, 4K (4096x2160) @24 Hz, UHD (3840x2160) @30 Hz, UHD @60 Hz with 4:2:0 subsampling

Video — Signal Type: Single-link HDMI (or DVI-D or DisplayPort)

Video — Maximum Pixel Clock: 300 MHz

Video — Formats: RGB and YCbCr digital video

Video — Switching Speed: 200 ms (max.)

Audio Format: Analog stereo, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, up to 8 ch PCM

Optical — Number/Signal Type: 4 sets of proprietary signals

Optical — Connectors: 4 LC fiber connector

Optical — Data Rate: 8.5 Gbps

Optical — Operating Distance (Multimode): 200 m (650 ft) OM1; 300 m (980 ft) OM2; 400 m (1312 ft) OM3 (2000 MHz laser-optimized); 500 m (1640 ft) OM4 (4700 MHz laser-optimized)

Optical — Nominal Peak Wavelength (Multimode): 850 nm, 980 nm, 780 nm

Optical — Transmission Power (Multimode): -5 dBm, typical

Optical — Maximum Receiver Sensitivity (Multimode): -13 dBm, typical

Optical — Optical Loss Budget (Multimode): 8 dB, maximum

Serial Control Pass-through Ports: RS-232 (±5 V) via (4) 3.5 mm, 5-pole captive screw connectors (uses 3 poles); shared with IR control ports

Baud Rates: 300 to 115200 baud

Protocol: 5 to 8 data bits, 1 or 2 stop bits, no parity (default) or even/odd parity, flow control Xon/Xoff/none

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control Ports: (4) 3.5 mm, 5-pole captive screw connectors (uses 3 poles); shared with RS-232 ports; TTL level (0-5 V) modulated IR, 30-56 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Ethernet Pass-through Ports: 4 female RJ-45

Ethernet Data Rate: 10/100Base-T, full duplex with autodetect

Power: Supplied by XTP CrossPoint or XTP II CrossPoint enclosures

Power Consumption: 19 watts

Product Weight: 2.0 lbs (0.9 kg)

Environmental: Complies with the appropriate requirements of RoHS, WEEE.

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | Extron Government Solutions

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP II Systems (xtp_II_systems_revG6.pdf)

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - XTP II CrossPointシリーズ

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | Extron-Lösungen für Behörden

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | Solutions Extron pour structures gouvernementales

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | Soluzioni Extron per ambienti governativi

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP II Systems (xtp_II_systems_revG6_FR.pdf)

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - Serie XTP II CrossPoint (XTP-Systems-II_BR_A4_SP_RevG4.pdf)

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - Serie XTP II CrossPoint (xtp_II_systems_revG6_IT.pdf)

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - XTP II CrossPoint 시리즈

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - XTP II CrossPoint 系列

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - XTP II CrossPoint-Serie

Brochure | XTP CP 4o Fiber 4K MM 70-986-01 | XTP Systems - Серия XTP II CrossPoint

Manual | XTP CP 4o Fiber 4K MM 70-986-01 | XTP II CrossPoint Series Setup Guide

Manual | XTP CP 4o Fiber 4K MM 70-986-01 | XTP II CrossPoint Series User Guide

Specifications | XTP CP 4o Fiber 4K MM 70-986-01 | XTP CP Fiber 4K I/O Boards

Panel Drawing | XTP CP 4o Fiber 4K MM 70-986-01 | XTP CP Fiber 4K I/O Boards

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron XTP CP 4o Fiber 4K MM Four-Output Optical Board 70-986-01

Name: Extron XTP CP 4o Fiber 4K MM Four-Output Optical Board 70-986-01
Brand: Extron
SKU: EXTRON-XTPCP4OFIBER4KMM-7098601
Availability: InStock

Manufacturer: Extron

Type: XTP Systems

Extron XTP CP 4o Fiber 4K MM Four-Output Optical Board

• 4 multimode fiber outputs extend 4K video up to 500 m (OM4)
• 8.5 Gbps optical data rate over 4 LC fiber connectors
• Bidirectional RS-232 and IR pass-through on all 4 ports
• 10/100Base-T Ethernet pass-through per port
• Supports 4096x2160 @24 Hz and UHD @60 Hz (4:2:0)
• 8 dB max optical loss budget, -13 dBm receiver sensitivity
• Backed by Extron 3-year parts and labor warranty
