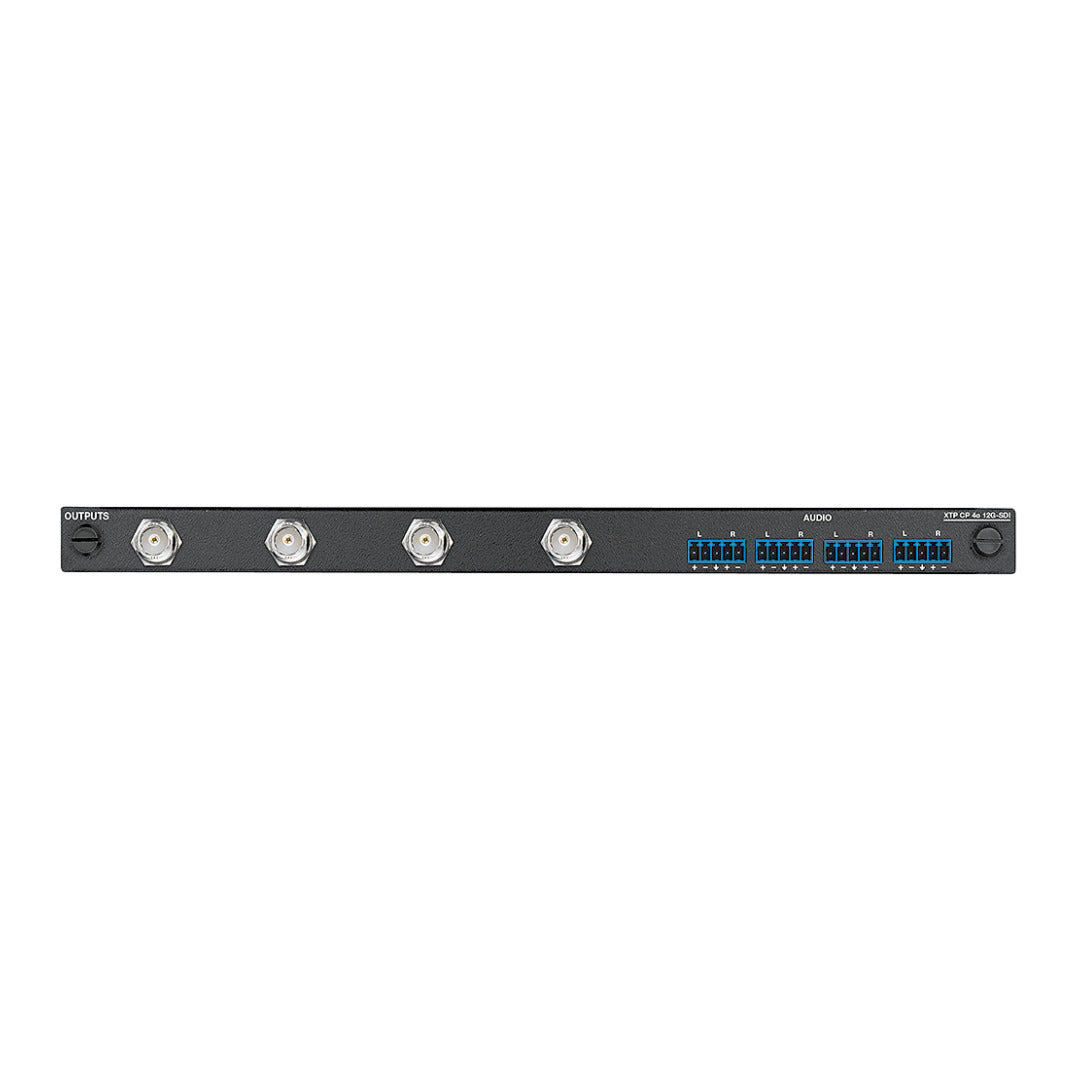

Extron XTP CP 4o 12G-SDI 4-Output I/O Board
- • 4 SDI outputs at 12G/6G/3G/HD-SDI up to 11.88 Gbps
- • Output reclocking preserves signal quality on every channel
- • Embeds or breaks out stereo audio: 4 BNC + 4 captive screw
- • Analog audio output up to +21 dBu (Hi-Z), <0.1% THD+N
- • Supports 4096x2160 at 60 Hz, 4:2:2, 10-bit
- • S/N >90 dB, stereo channel separation >80 dB @ 1 kHz
- • Powered directly by XTP/XTP II CrossPoint enclosure
- • Backed by Extron 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron XTP CP 4o 12G-SDI (part number 70-1172-01) — a 4-output 12G-SDI I/O board for the XTP CrossPoint and XTP II CrossPoint modular matrix enclosures.
This board delivers four reclocked SDI outputs from an XTP CrossPoint frame at data rates up to 11.88 Gbps, converting matrix video to 12G-SDI, 6G-SDI, 3G-SDI, or HD-SDI as required by the destination. Each output channel embeds AES3 audio and also breaks out a balanced/unbalanced analog stereo pair on a captive-screw connector, letting integrators feed SDI displays or routers and drive an analog audio system from the same board without external converters.
Key Capabilities
- Four SMPTE-compliant SDI outputs at up to 11.88 Gbps per 12G-SDI connection
- Output reclocking on every channel for clean, jitter-free signal delivery
- Embedded AES3 digital audio plus analog stereo breakout on captive-screw terminals
- Analog output up to +21 dBu (Hi-Z) with less than 0.1% THD+N
- Stereo channel separation greater than 80 dB and S/N greater than 90 dB
- Supports 4096x2160 at 60 Hz (4:2:2, 10-bit) and 30 Hz (4:4:4, 8-bit)
Where It Is Used
Broadcast control rooms, production trucks, and command-center integrations that need to distribute SDI signals with embedded or analog audio from a shared XTP CrossPoint matrix to displays, recorders, or downstream routers.
Specifications at a Glance
- Signal support: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI (4 outputs)
- Max. video data rate: 11.88 Gbps per 12G-SDI connection
- Connectors: 4 BNC (video), 4 BNC + 4 captive-screw (audio)
- Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure, 24.0 W
- Warranty: 3 years parts and labor
Also referenced as Extron XTPCP4o12GSDI, XTP-CP-4o-12G-SDI, part number 701172 01.
