Extron XTP CP 4i Fiber 4K SM Four-Input Optical Board 70-985-02
Extron XTP CP 4i Fiber 4K SM Four-Input Optical Board 70-985-02
Extron XTP CP 4i Fiber 4K SM Four-Input Optical Board
- • 4 singlemode fiber inputs extend 4K video up to 10 km
- • 8.5 Gbps optical data rate over 4 LC fiber connectors
- • Bidirectional RS-232 and IR pass-through on all 4 ports
- • 10/100Base-T Ethernet pass-through per port
- • Supports 4096x2160 @24 Hz and UHD @60 Hz (4:2:0)
- • 9 dB max optical loss budget, -15 dBm receiver sensitivity
- • Backed by Extron 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

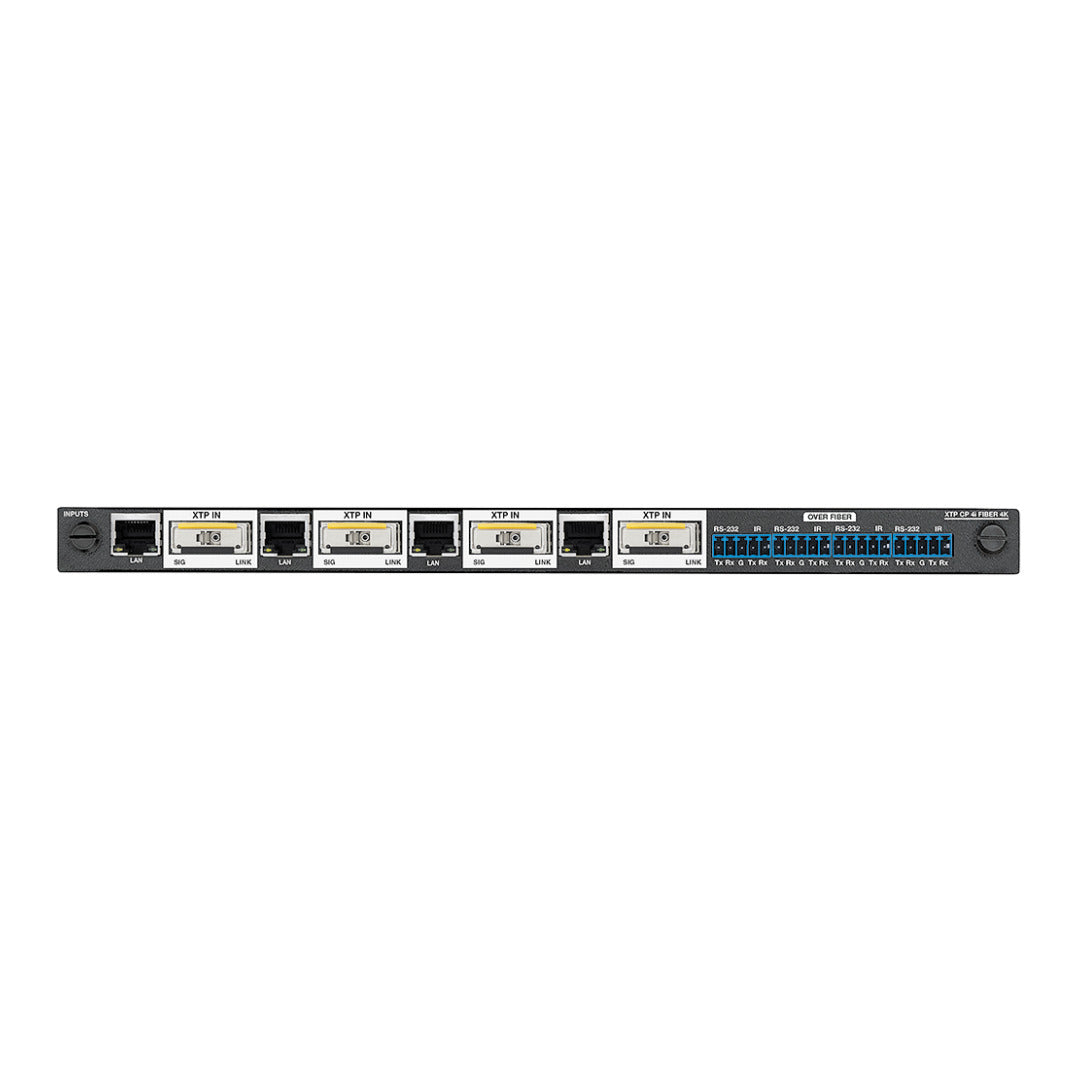

Extron XTP CP 4i Fiber 4K SM (part number 70-985-02) — a four-input singlemode fiber optic board for the XTP CrossPoint and XTP II CrossPoint matrix family.
This board brings four fiber-connected sources into an XTP CrossPoint frame over LC singlemode cable, carrying 4K video with embedded audio, bidirectional RS-232 and IR, and 10/100 Ethernet on the same optical run. With an 8.5 Gbps optical data rate and a 9 dB maximum loss budget, it reaches up to 10 km on singlemode fiber, letting integrators link sources across campuses or between buildings well beyond copper CATx or multimode fiber limits.
Key Capabilities
- Four singlemode LC fiber inputs reach up to 10 km (6.2 miles)
- 8.5 Gbps optical data rate; 8.91 Gbps max. video data rate
- Bidirectional RS-232 (300 to 115200 baud) and IR pass-through on every port
- 10/100Base-T Ethernet pass-through alongside each fiber signal
- -15 dBm receiver sensitivity with a 9 dB maximum optical loss budget
- Supports resolutions up to 4096x2160 @24 Hz and UHD @60 Hz with 4:2:0 subsampling
Where It Is Used
Long-haul XTP CrossPoint deployments spanning campuses, stadiums, or multiple buildings where a source sits kilometers from the matrix, plus broadcast and command-center facilities that standardize on singlemode fiber backbones.
Specifications at a Glance
- Singlemode reach: 10 km (6.2 miles)
- Connectors: 4 LC fiber, 4 RJ-45 (Ethernet pass-through)
- Data rate: 8.5 Gbps optical
- Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure, 19 W
- Warranty: 3 years parts and labor
Also referenced as Extron XTPCP4iFiber4KSM, XTP-CP-4i-Fiber-4K-SM, part number 7098502.
