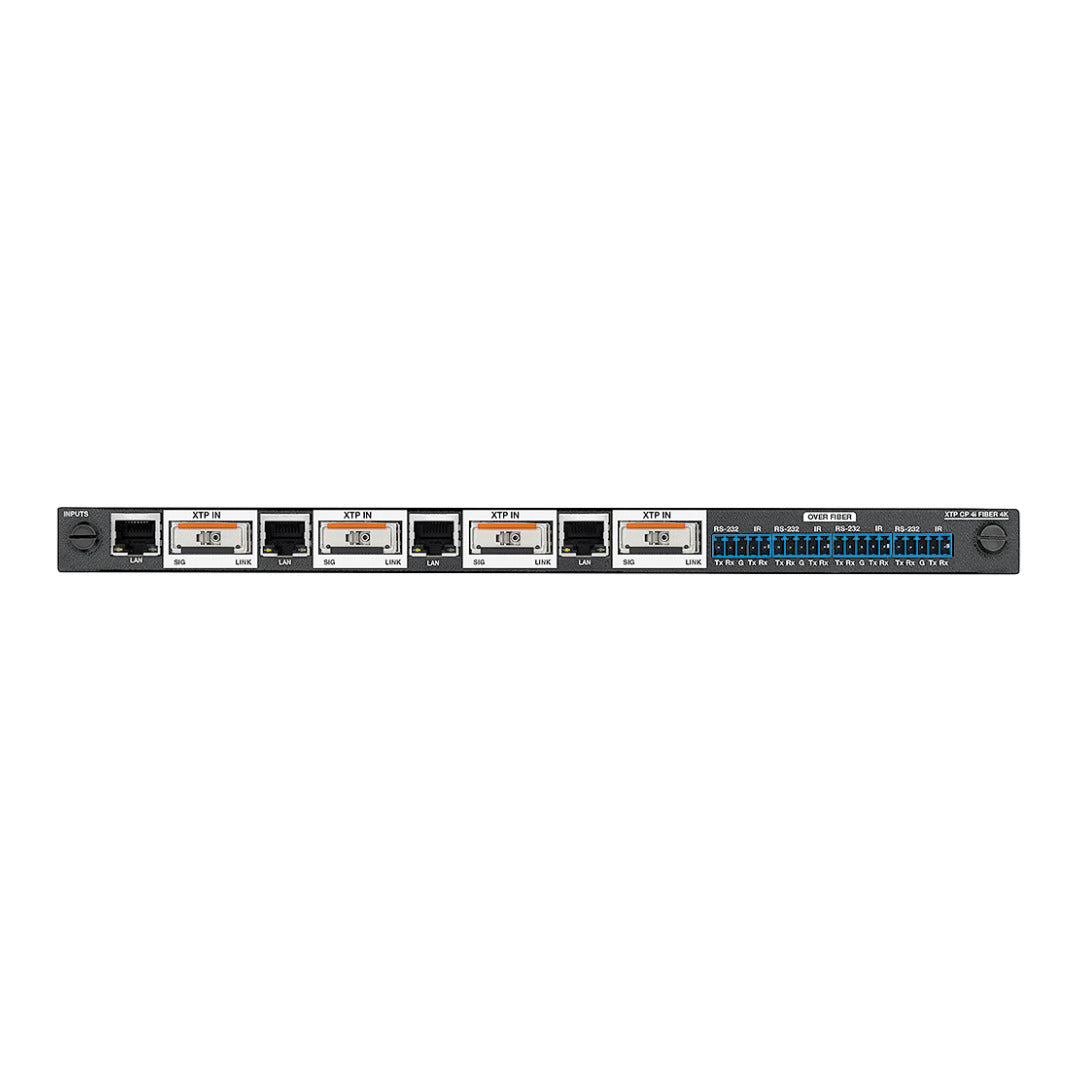

Extron XTP CP 4i Fiber 4K MM (part number 70-985-01) — a four-input multimode fiber optic board for the XTP CrossPoint and XTP II CrossPoint matrix family.

This board brings four fiber-connected sources into an XTP CrossPoint frame over LC multimode cable, carrying 4K video with embedded audio, bidirectional RS-232 and IR, and 10/100 Ethernet on the same optical run. With an 8.5 Gbps optical data rate and an 8 dB maximum loss budget, it reaches up to 500 m on 50 µm OM4 laser-optimized cable, letting integrators route sources between equipment rooms and remote spaces without the distance limits of copper CATx.

Key Capabilities

Four multimode LC fiber inputs reach up to 500 m (1640 ft) on OM4 cable
8.5 Gbps optical data rate; 8.91 Gbps max. video data rate
Bidirectional RS-232 (300 to 115200 baud) and IR pass-through on every port
10/100Base-T Ethernet pass-through alongside each fiber signal
-13 dBm receiver sensitivity with an 8 dB maximum optical loss budget
Supports resolutions up to 4096x2160 @24 Hz and UHD @60 Hz with 4:2:0 subsampling

Where It Is Used

Campus and multi-building XTP CrossPoint deployments, broadcast facilities, and command centers where sources sit farther from the matrix than copper CATx can reliably reach, or where fiber is preferred for noise immunity.

Specifications at a Glance

Multimode reach: 500 m (1640 ft) on OM4, 400 m on OM3, 300 m on OM2, 200 m on OM1
Connectors: 4 LC fiber, 4 RJ-45 (Ethernet pass-through)
Data rate: 8.5 Gbps optical
Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure, 19 W
Warranty: 3 years parts and labor

Also referenced as Extron XTPCP4iFiber4KMM, XTP-CP-4i-Fiber-4K-MM, part number 7098501.

Specifications

Part Number: 70-985-01

Manufacturer: Extron

Model: XTP CP 4i Fiber 4K MM

Condition: New

Max. 4K Capabilities: 4096x2160 at 24 Hz (4:4:4, 8-bit); 3840x2160 at 30 Hz and 60 Hz (4:2:0, 8-bit)

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8 bits per color

Signal Type (General): Refer to XTP endpoints

Max. Video Data Rate: 8.91 Gbps (2.97 Gbps per color)

Video — Gain: Unity

Video — Resolution Range: Up to 2560x1600 @60 Hz (reduced blanking), 1080p @120 Hz, 4K (4096x2160) @24 Hz, UHD (3840x2160) @30 Hz, UHD @60 Hz with 4:2:0 subsampling

Video — Signal Type: Single-link HDMI (or DVI-D or DisplayPort)

Video — Maximum Pixel Clock: 300 MHz

Video — Formats: RGB and YCbCr digital video

Video — Switching Speed: 200 ms (max.)

Audio Format: Analog stereo, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, up to 8 ch PCM

Optical — Number/Signal Type: 4 sets of proprietary signals

Optical — Connectors: 4 LC fiber connector

Optical — Data Rate: 8.5 Gbps

Optical — Operating Distance (Multimode): 200 m (650 ft) OM1; 300 m (980 ft) OM2; 400 m (1312 ft) OM3 (2000 MHz laser-optimized); 500 m (1640 ft) OM4 (4700 MHz laser-optimized)

Optical — Nominal Peak Wavelength (Multimode): 850 nm, 980 nm, 780 nm

Optical — Transmission Power (Multimode): -5 dBm, typical

Optical — Maximum Receiver Sensitivity (Multimode): -13 dBm, typical

Optical — Optical Loss Budget (Multimode): 8 dB, maximum

Serial Control Pass-through Ports: RS-232 (±5 V) via (4) 3.5 mm, 5-pole captive screw connectors (uses 3 poles); shared with IR control ports

Baud Rates: 300 to 115200 baud

Protocol: 5 to 8 data bits, 1 or 2 stop bits, no parity (default) or even/odd parity, flow control Xon/Xoff/none

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control Ports: (4) 3.5 mm, 5-pole captive screw connectors (uses 3 poles); shared with RS-232 ports; TTL level (0-5 V) modulated IR, 30-56 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Ethernet Pass-through Ports: 4 female RJ-45

Ethernet Data Rate: 10/100Base-T, full duplex with autodetect

Power: Supplied by XTP CrossPoint or XTP II CrossPoint enclosures

Power Consumption: 19 watts

Product Weight: 2.0 lbs (0.9 kg)

Environmental: Complies with the appropriate requirements of RoHS, WEEE.

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | Extron Government Solutions

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP II Systems (xtp_II_systems_revG6.pdf)

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - XTP II CrossPointシリーズ

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | Extron-Lösungen für Behörden

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | Solutions Extron pour structures gouvernementales

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | Soluzioni Extron per ambienti governativi

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP II Systems (xtp_II_systems_revG6_FR.pdf)

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - Serie XTP II CrossPoint (XTP-Systems-II_BR_A4_SP_RevG4.pdf)

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - Serie XTP II CrossPoint (xtp_II_systems_revG6_IT.pdf)

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - XTP II CrossPoint 시리즈

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - XTP II CrossPoint 系列

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - XTP II CrossPoint-Serie

Brochure | XTP CP 4i Fiber 4K MM 70-985-01 | XTP Systems - Серия XTP II CrossPoint

Manual | XTP CP 4i Fiber 4K MM 70-985-01 | XTP II CrossPoint Series Setup Guide

Manual | XTP CP 4i Fiber 4K MM 70-985-01 | XTP II CrossPoint Series User Guide

Specifications | XTP CP 4i Fiber 4K MM 70-985-01 | XTP CP Fiber 4K I/O Boards

Panel Drawing | XTP CP 4i Fiber 4K MM 70-985-01 | XTP CP Fiber 4K I/O Boards

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron XTP CP 4i Fiber 4K MM Four-Input Optical Board 70-985-01

Name: Extron XTP CP 4i Fiber 4K MM Four-Input Optical Board 70-985-01
Brand: Extron
SKU: EXTRON-XTPCP4IFIBER4KMM-7098501
Availability: InStock

Manufacturer: Extron

Type: XTP Systems

Extron XTP CP 4i Fiber 4K MM Four-Input Optical Board

• 4 multimode fiber inputs extend 4K video up to 500 m (OM4)
• 8.5 Gbps optical data rate over 4 LC fiber connectors
• Bidirectional RS-232 and IR pass-through on all 4 ports
• 10/100Base-T Ethernet pass-through per port
• Supports 4096x2160 @24 Hz and UHD @60 Hz (4:2:0)
• 8 dB max optical loss budget, -13 dBm receiver sensitivity
• Backed by Extron 3-year parts and labor warranty
