Extron XTP CP 4i 4K Four-Input XTP Board with RS-232/IR 70-940-31
Extron XTP CP 4i 4K Four-Input XTP Board with RS-232/IR 70-940-31
Extron XTP CP 4i 4K Four-Input XTP Board
- • 4 XTP inputs extend 4K video, audio, control up to 330 ft
- • 26 W remote power to compatible XTP transmitters/receivers
- • Bidirectional RS-232 and IR pass-through on all 4 ports
- • 10/100Base-T Ethernet pass-through per port
- • Supports 4096x2160 @30 Hz and UHD/4K @60 Hz (4:2:0)
- • HDCP 2.3 compliant with independent audio routing
- • Backed by Extron 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

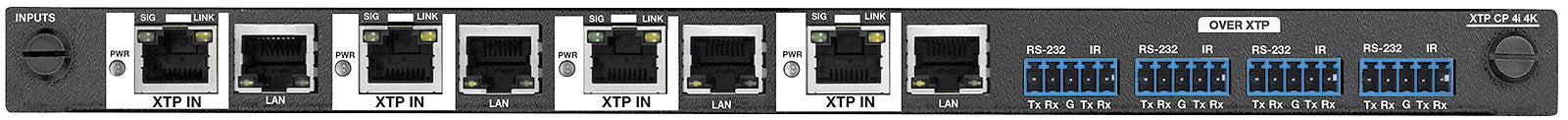

Extron XTP CP 4i 4K (part number 70-940-31) — a four-input XTP transport board with 26 W remote power capability for the XTP CrossPoint matrix family.
This board accepts four XTP-encoded sources over shielded CATx cable, carrying video up to 4K, embedded audio, bidirectional RS-232 and IR, and 10/100 Ethernet on the same run to a distant transmitter. Each of the four RJ-45 ports can remotely power a compatible XTP transmitter, receiver, or TouchLink Pro touchpanel at up to 26 W, cutting down on separate power runs at remote locations. HDCP 2.3 compliance and independent stereo audio de-embedding round out the feature set for boardroom- and campus-scale XTP deployments.
Key Capabilities
- Four XTP inputs extend video, audio, control, and Ethernet up to 330 ft (100 m)
- 26 W remote power to compatible XTP transmitters, receivers, and touchpanels
- Supports resolutions up to 4096x2160 @30 Hz and 4K/UHD @60 Hz with 4:2:0 subsampling
- Bidirectional RS-232 (300 to 115200 baud) and IR pass-through on every port
- 10/100Base-T Ethernet pass-through alongside each XTP signal
- HDCP 2.3 compliant with independent stereo audio routing per input
Where It Is Used
XTP CrossPoint installations in boardrooms, classrooms, and control rooms that need to add four-input XTP transport capacity while powering remote transmitters and touchpanels from the same cable run.
Specifications at a Glance
- Signal transmission distance: 330 ft (100 m) over shielded twisted pair or XTP DTP 24
- Max. video data rate: 10.2 Gbps (3.4 Gbps per color)
- Connectors: 4 female RJ-45 (XTP), 4 female RJ-45 (Ethernet pass-through)
- Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure
- Warranty: 3 years parts and labor
Also referenced as Extron XTPCP4i4K, XTP-CP-4i-4K, part number 7094031.
