Extron XTP CP 4i 4K Four-Input XTP Board
- • 4 XTP inputs extend 4K video, audio, control up to 330 ft
- • Bidirectional RS-232 and IR pass-through on all 4 ports
- • 10/100Base-T Ethernet pass-through per port
- • Supports 4096x2160 @30 Hz and UHD/4K @60 Hz (4:2:0)
- • Remote power to compatible XTP transmitters and receivers
- • Retired part number — legacy stock for existing XTP systems
- • Backed by Extron 3-year parts and labor warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

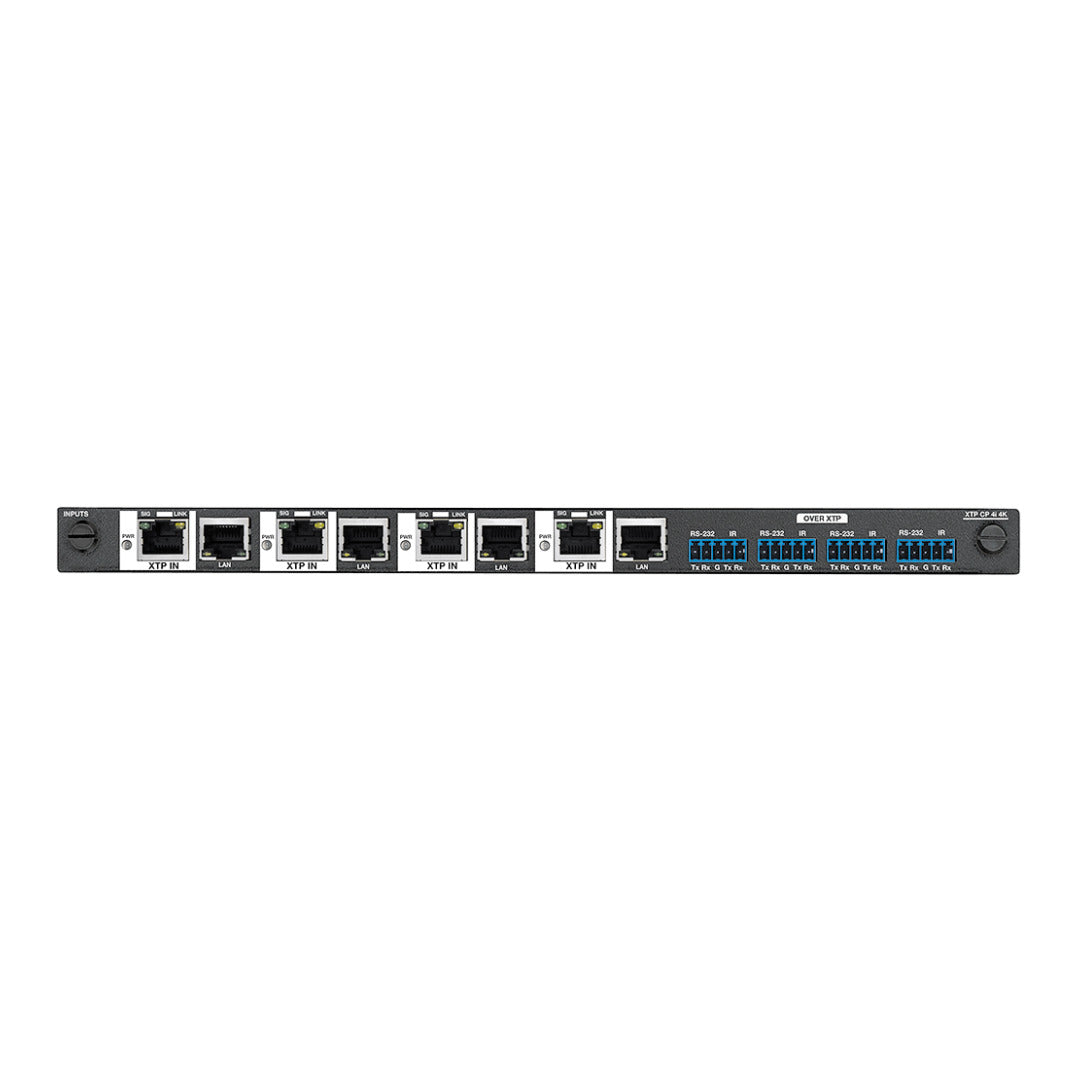

Extron XTP CP 4i 4K (part number 70-940-21) — a retired four-input XTP transport board for the XTP CrossPoint matrix family.
This board accepts four XTP-encoded sources over shielded CATx cable, carrying video up to 4K, embedded audio, bidirectional RS-232 and IR, and 10/100 Ethernet on the same run to a distant transmitter. Each of the four RJ-45 ports can also remotely power a compatible XTP transmitter, receiver, or TouchLink Pro touchpanel, cutting down on separate power runs at remote locations. Extron has retired 70-940-21 in favor of the 26 W remote-power-capable 70-940-31, so this listing serves integrators sourcing legacy stock for an existing XTP CrossPoint deployment.
Key Capabilities
- Four XTP inputs extend video, audio, control, and Ethernet up to 330 ft (100 m)
- Supports resolutions up to 4096x2160 @30 Hz and 4K/UHD @60 Hz with 4:2:0 subsampling
- Bidirectional RS-232 (300 to 115200 baud) and IR pass-through on every port
- 10/100Base-T Ethernet pass-through alongside each XTP signal
- Remote power delivery to compatible XTP transmitters, receivers, and touchpanels
- Wide audio support including Dolby and DTS formats plus analog stereo
Where It Is Used
Existing XTP CrossPoint installations in boardrooms, classrooms, and control rooms that need to add or replace a four-input XTP transport card without redesigning the surrounding cable plant.
Specifications at a Glance
- Signal transmission distance: 330 ft (100 m) over shielded twisted pair or XTP DTP 24
- Max. video data rate: 10.2 Gbps (3.4 Gbps per color)
- Connectors: 4 female RJ-45 (XTP), 4 female RJ-45 (Ethernet pass-through)
- Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure
- Warranty: 3 years parts and labor
Also referenced as Extron XTPCP4i4K, XTP-CP-4i-4K, part number 7094021. Note: 70-940-21 is a retired Extron part number, superseded by 70-940-31.
