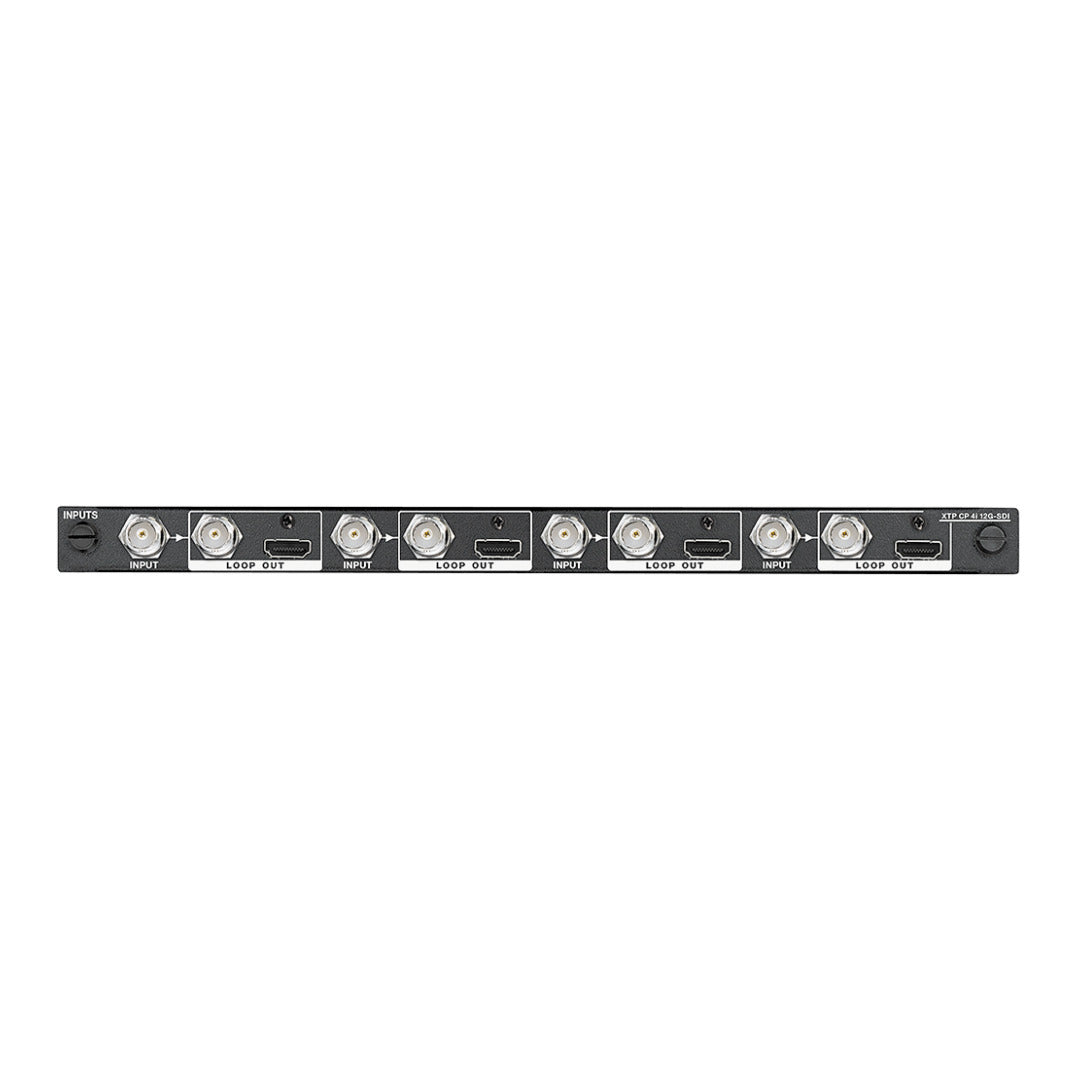

Extron XTP CP 4i 12G-SDI (part number 70-1171-01) — a 4-input 12G-SDI I/O board for the XTP CrossPoint and XTP II CrossPoint modular matrix enclosures.

This board brings four SDI sources into an XTP CrossPoint frame at data rates up to 11.88 Gbps, auto-detecting 12G-SDI, 6G-SDI, 3G-SDI, or HD-SDI on each input and applying automatic cable equalization to compensate for up to -30 dB of cable loss. Each channel also carries a BNC loop-through output and an HDMI mirror output alongside the embedded AES3 audio, so integrators get a clean copy of the incoming signal for local monitoring without touching the matrix switching path.

Key Capabilities

• Four SMPTE-compliant SDI inputs at up to 11.88 Gbps per 12G-SDI connection
• Automatic cable equalization for up to -30 dB of loss on every input
• 12G-SDI reach of 70 m (230 ft) on RG7; 6G-SDI reach of 100 m (330 ft) on RG6
• Per-channel BNC loop-through plus HDMI mirror output for local monitoring
• Embedded AES3 audio pass-through up to 24-bit/48 kHz per SDI input
• Supports 4096x2160 at 60 Hz (4:2:2, 10-bit) and 30 Hz (4:4:4, 8-bit)

Where It Is Used

Broadcast control rooms, production trucks, and government or command-center integrations that need to aggregate multiple SDI camera or router feeds into a shared XTP CrossPoint matrix while keeping a local monitoring tap on each input.

Specifications at a Glance

• Signal support: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI (4 inputs)
• Max. video data rate: 11.88 Gbps per 12G-SDI connection
• Connectors: 4 BNC input, 4 BNC loop-through, 4 HDMI
• Power: supplied by XTP CrossPoint / XTP II CrossPoint enclosure, 37.2 W
• Warranty: 3 years parts and labor

Also referenced as Extron XTPCP4i12GSDI, XTP-CP-4i-12G-SDI, part number 701171 01.
