Extron XPA U 758 Eight-Channel Power Amplifier
- • Eight channels of 75 W into 8 ohms in a half-rack 1U chassis
- • 50 W per channel into 4 ohms, with a 4 ohm minimum load per output
- • Convection cooled with no vents or fans - silent and clearance-free

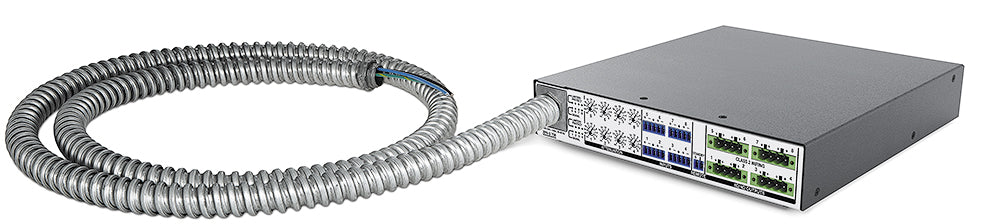

- • UL plenum rated for ceiling voids and closed furniture racks
- • 20 Hz-20 kHz ±1 dB, 100 dB S/N, damping factor above 100 at 8 ohms
- • Compact 4.2 lb chassis measuring 1.7 in H x 8.7 in W x 10.5 in D
- • 3-year product warranty plus 7-year Everlast power supply coverage
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

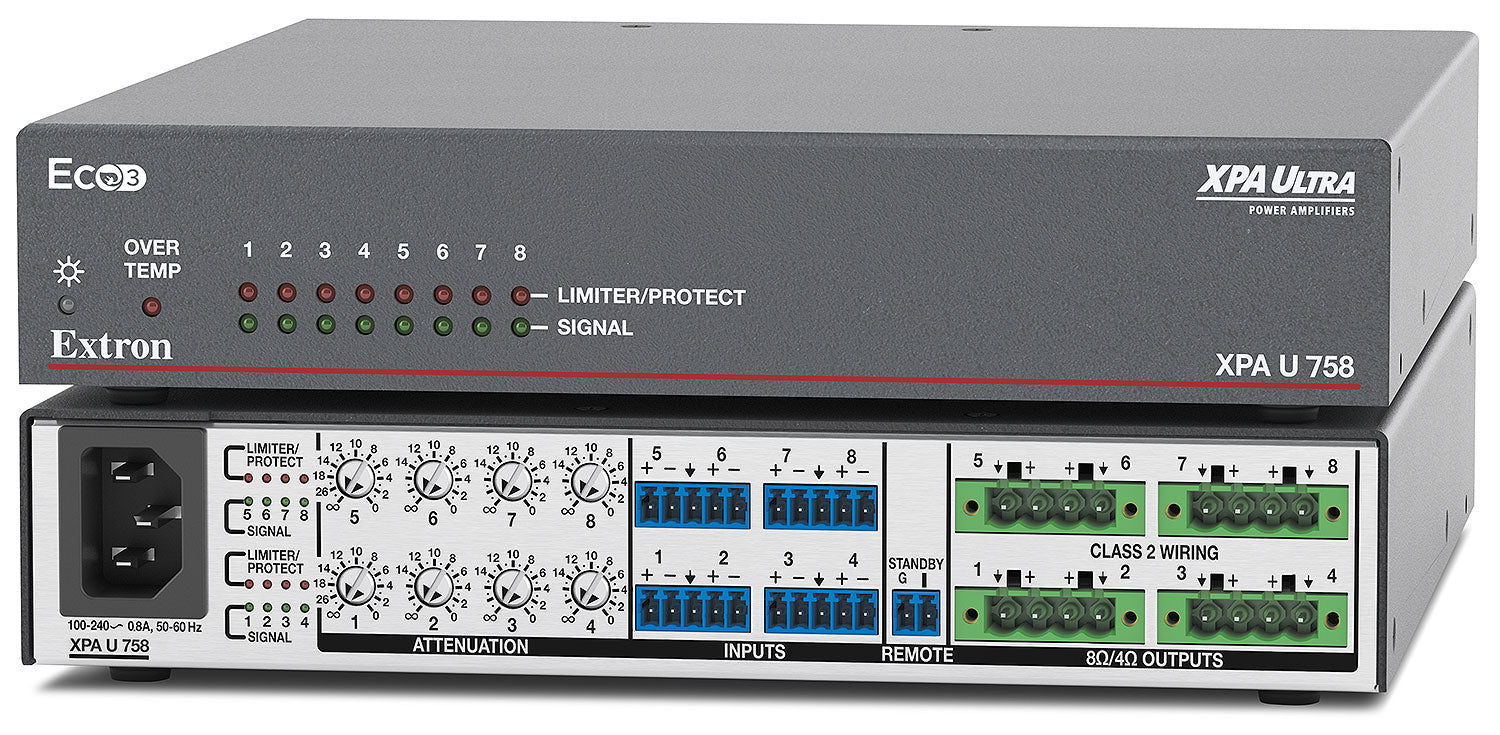

Extron XPA U 758 (part number 60-1863-01) — an eight-channel Class D amplifier delivering 75 watts per channel into 8 ohms from a half-rack, 1U chassis.
Channel count is usually what forces a second amplifier into a rack. This model puts eight of them in a frame half a rack wide and one unit high, and it cools by convection with no vents and no fan, so it can sit flush against neighboring gear or inside a closed credenza. Extron rates the enclosure for plenum airspaces, which widens where an installer is permitted to put it.
Key Capabilities
- Eight channels rated 75 W into 8 ohms, or 50 W into 4 ohms, each measured at 1 kHz and 0.1% THD.
- Convection cooling with no vents — silent operation, and no airflow clearance to budget for.
- Frequency response held to 20 Hz - 20 kHz within ±1 dB, with 100 dB unweighted S/N and a damping factor above 100 at 8 ohms.
- Eight balanced or unbalanced inputs across four 5-pole 3.5 mm captive screw connectors, +4 dBu nominal and +20 dBu maximum.
- Speaker outputs on four 4-pole, 5 mm screw-lock captive screw connectors, rated to a 4 ohm minimum load.
- Input signal detection threshold of -65 dBu ±3 dB balanced, plus a 2-pole contact-closure standby control port.
Where It Is Used
Huddle rooms, classrooms, distributed background music in restaurants and lobbies, paging in clinics and offices, and any zone-heavy design where rack units are scarce. The plenum rating and fanless operation also suit ceiling voids and furniture-mounted racks where a fan would be audible or hard to service.
Specifications at a Glance
- Output power: 75 W per channel into 8 ohms; 50 W per channel into 4 ohms
- Channels: 8, balanced or unbalanced inputs
- Enclosure: metal, 1.7 in H x 8.7 in W x 10.5 in D, 1U high, half rack wide
- Product weight: 4.2 lbs (1.9 kg)
- Warranty: 3 years parts and labor; 7 years on the Everlast power supply
Also referenced as Extron XPAU758, XPA-U-758, part number 60186301.
Specifications
Specifications

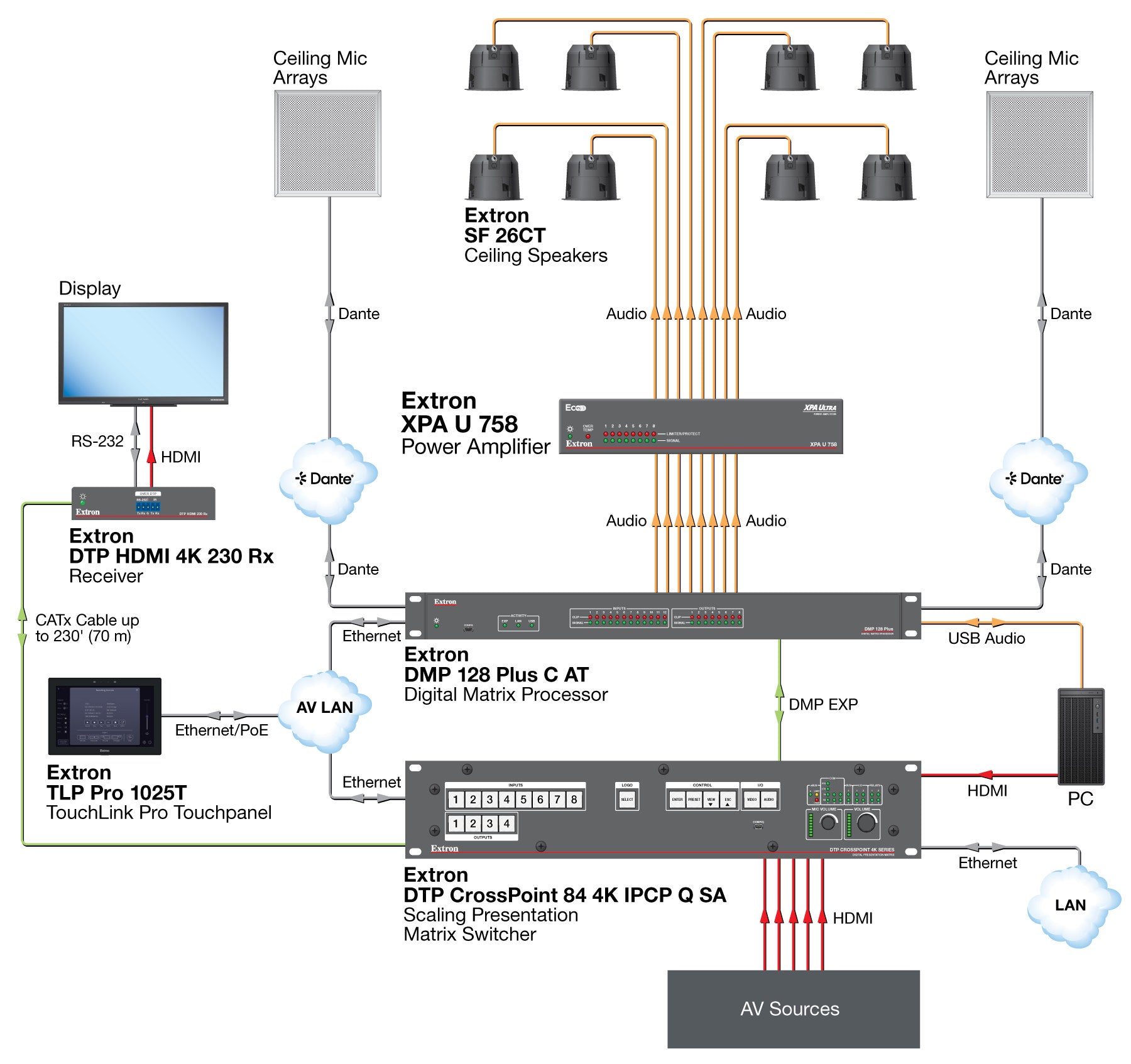

Diagram
