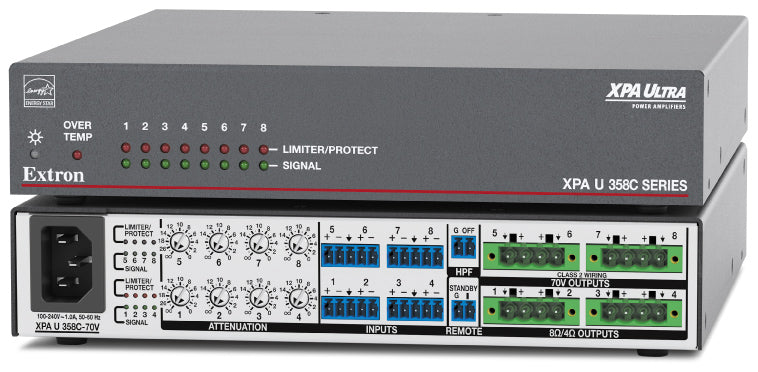

Part number 60-1762-01 — 8 Ch Amp: Four 8/4 Ohm + Four 70V, 35 W per ch

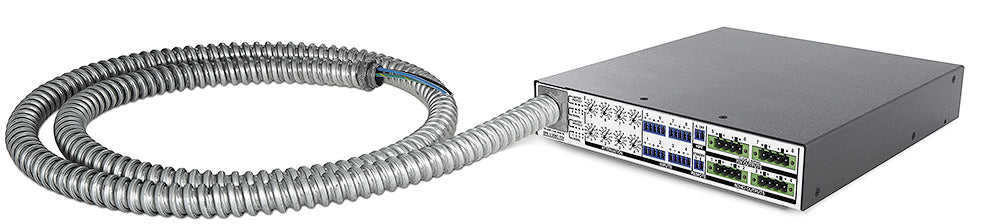

60-1762-01 supplies eight channels of 35 W output in one half rack 1U chassis. Four channels drive 8 ohm or 4 ohm loads while the remaining four channels drive 70 V loads. The unit occupies minimal rack volume because it requires no added ventilation space and supports plenum rated mounting, so integrators can place more amplifiers in a single rack without extra cooling provisions.

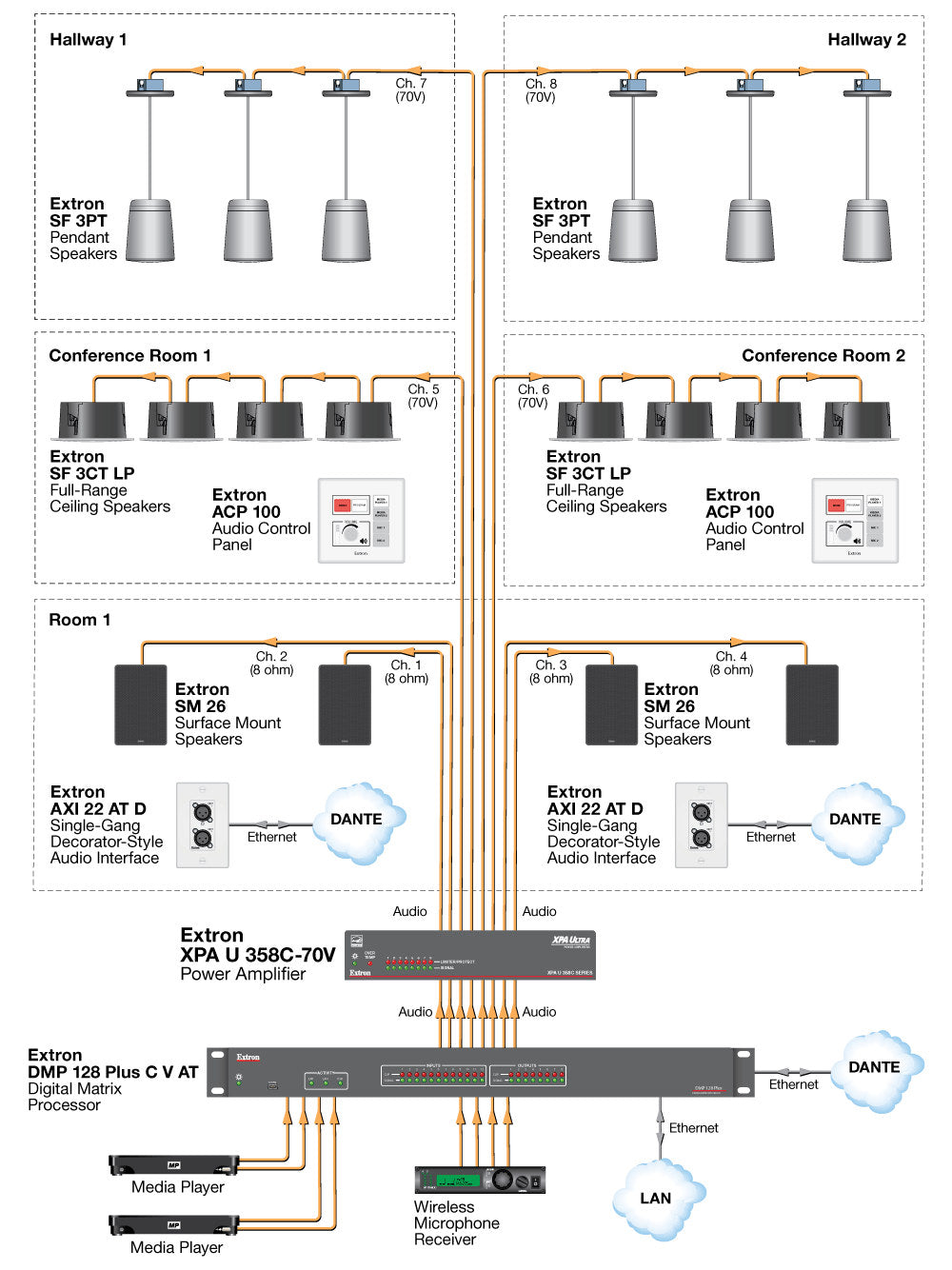

Conference rooms, classrooms, auditoriums and houses of worship commonly use this amplifier. Before ordering note the Class D topology, 75 dB CMRR at 1 kHz, automatic standby with wake up under 100 ms, convection cooling, and 4.75 in depth. AC current draw at 1/8 power with all channels driven appears in the listed specifications for 8 ohm and 70 V configurations.

Specifications

Part Number: 60-1762-01

Manufacturer: Extron

Condition: New

4Ω (ch 1-4) 100V (ch 5-8): 0.5

4Ω (ch 1-4) 70V (ch 5-8): 0.5

Height: 4.75" (12.1 cm)

AC Line Current: AC Power Consumed

Active (1/8 power), all channels driven: 8Ω (ch 1-4) 70V (ch 5-8)

Amplifier type: Class D

CMRR: 75 dB (typical) @ 1 kHz

Channels 1, 2, 3, and 4: 14x (23 dB)

Channels 5, 6, 7, and 8: 80 Hz, 12 dB per octave rolloff, selectable via captive screw

Condition: A

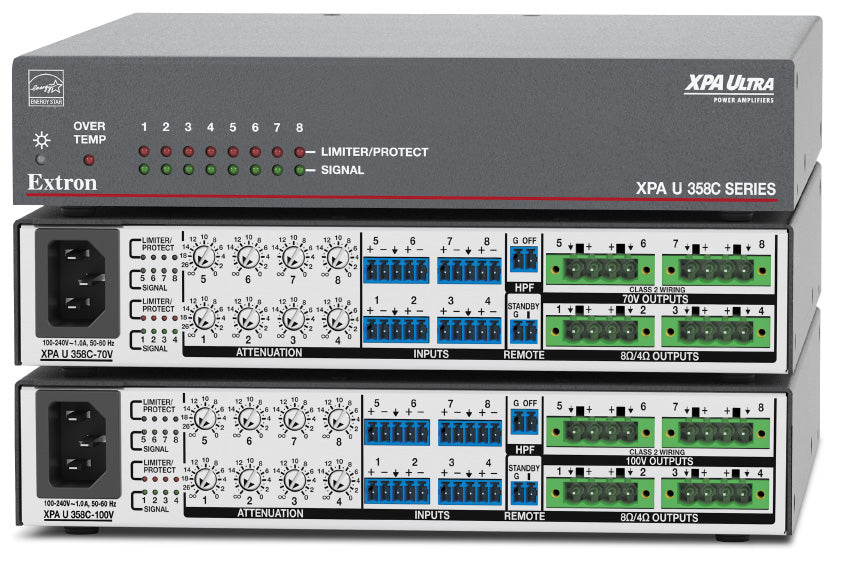

Connectors: (4) 3.5 mm captive screw connector, 5-pole

Control port: (2) 3.5 mm captive screw, 2-pole

Cooling: Convection, no vents

Enclosure: Metal

Enclosure dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)43 mm H x 220 mm W x 267 mm D

Everlast power supply warranty: 7 years parts and labor

Frequency response: 20 Hz to 20 kHz, ±1 dB

High pass filter (contact closure): Pin 1 = GND, pin 2 = OFF

Impedance: >10k ohms balanced/unbalanced, DC coupled

Indication: Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit. Over Temp LED indicates when the amplifier exceeds the recommended operating temperature for optimal unit longevity. Power LED indicates power state, DC output protection (see XPA Ultra Series User Guide for details).

Input sensitivity: +4 dBu

Input signal detection threshold: -65 dBu ±3 dB, balanced

Maximum level: +20 dBu, balanced

Nominal level: +4 dBu, balanced

Number/signal type: 8 balanced/unbalanced

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing

Power supply: InternalInput: 100 VAC - 240 VAC, 50-60 Hz

Product warranty: 3 years parts and labor

Product weight: 4.2 lbs (1.9 kg)

Protection: Clip limiting, thermal, short circuit, DC output

Quiescent (idle): 0.1

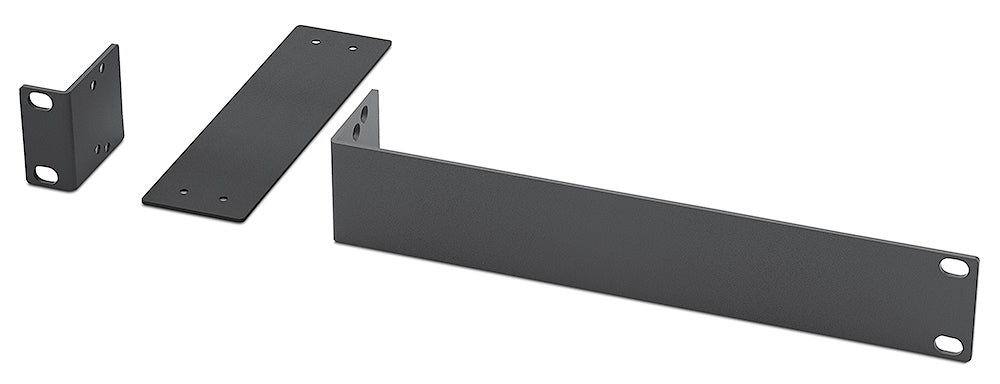

Rack mount: Yes, with included mounting brackets or optional rack shelf

Regulatory compliance: CE, CCC, CEC, CISPR 22 Class B, C-tick, c-UL, ENERGY STAR®, European Code of Conduct, FCC Class B, ICES, KC, RoHS, UL, VCCI Class B UL rated for use in plenum airspaces: meets UL 2043 and CAN/ULC_S142:16 for heat and smoke release meets UL/IEC 6238-1 for multimedia equipment meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for AV multimedia equipment

S/N: 100 dB, 20 Hz - 20 kHz, unweighted

Standby: <0.1

Standby power control (contact closure): Pin 1 = GND, pin 2 = Standby

Storage: −40 to +158 °F (−40 to +70 °C) / 10% to 90%, non-condensing

THD + Noise: 0.1% @ 1 kHz at 3 dB below clipping

XPA U 358C-70V: 57x (35 dB)
