Details

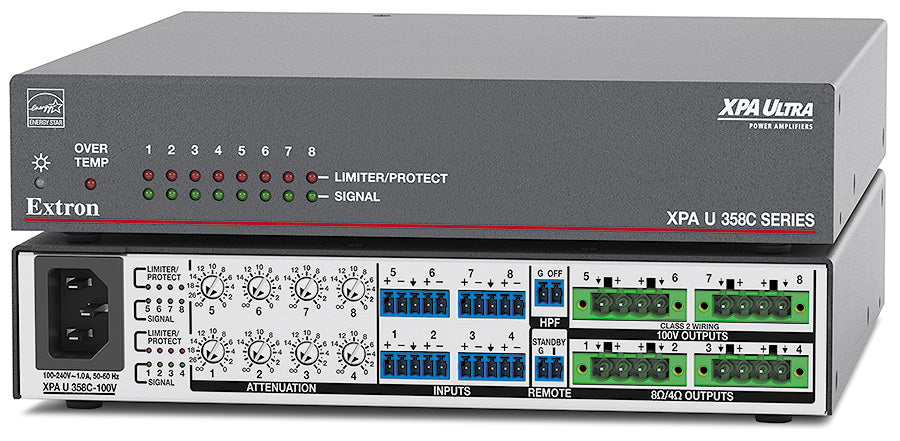

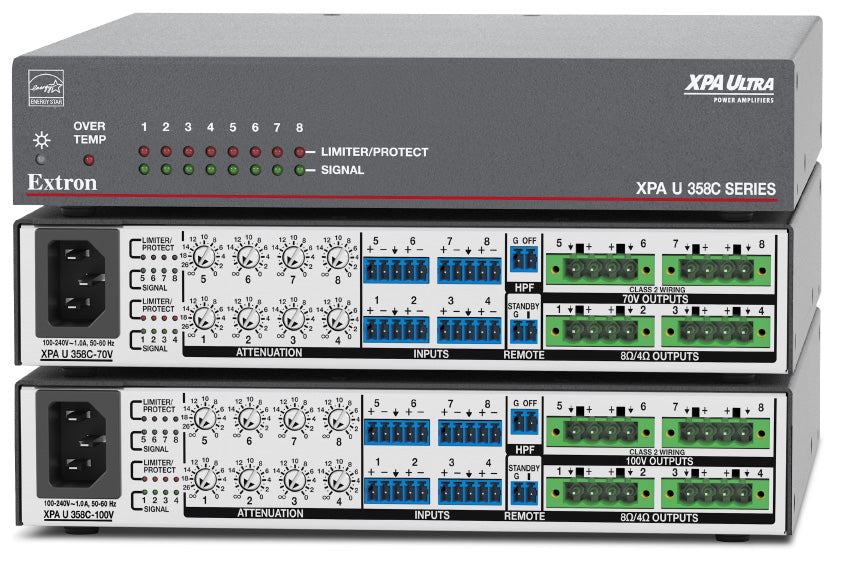

Part number 60-1762-11 — Eight-channel Class D power amplifier that splits its outputs between two load types.

Channels 1 through 4 drive 35 watts each into an 8 or 4 ohm speaker load, while channels 5 through 8 drive 35 watts each onto a 100-volt constant-voltage line with a switchable 80 Hz high-pass filter. Combining both load types in one half-rack, 1U chassis suits projects with a mix of direct-drive and distributed-audio zones, avoiding the need for two separate amplifiers.

Four 5-pole captive-screw connectors carry the eight balanced/unbalanced inputs, while output lands on four 4-pole screw-lock terminals wired for 12-22 AWG cable. Two 2-pole control ports handle standby switching and high-pass filter selection independently via external contact closure. The chassis is convection-cooled, ENERGY STAR qualified, and rated for plenum installation; Extron backs the internal power supply with a 7-year Everlast warranty in addition to standard product coverage.

Specifications

Part Number: 60-1762-11

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain - Channels 1-4: 14x (23 dB)

Voltage Gain - Channels 5-8: 81x (38 dB)

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 8 balanced/unbalanced

Audio Input Connectors: (4) 3.5 mm captive screw connectors, 5-pole

Audio Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu, balanced

Input Sensitivity: +4 dBu

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 8 channels, 4 low impedance (channels 1-4) and 4 high impedance 100V (channels 5-8)

Audio Output Connectors: (4) 5 mm screw-lock captive screw connectors, 4-pole

Load Impedance - Channels 1-4: 4 ohms minimum

Load Impedance - Channels 5-8: 286 ohms minimum

Output Power - Channels 1-4: 35 watts RMS per channel @ 4 ohms; 35 watts RMS per channel @ 8 ohms (1 kHz, 0.1% THD)

Output Power - Channels 5-8: 35 watts RMS per channel @ 100 V (1 kHz, 0.1% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1% @ 1 kHz, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor - Channels 1-4: >100 @ 8 ohms

Damping Factor - Channels 5-8: >100 @ 286 ohms

High Pass Filter (Channels 5-8): 80 Hz, 12 dB per octave rolloff, selectable via captive screw

Control Port: (2) 3.5 mm captive screw connectors, 2-pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = Standby

High Pass Filter Control (Contact Closure): Pin 1 = GND, pin 2 = OFF

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 1/8 Power, 8Ω Ch 1-4 / 100V Ch 5-8): 52.5 W

Power Consumption (115 VAC, Quiescent): 9.2 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Over Temp LED indicates when the amplifier exceeds recommended operating temperature. Power LED indicates power state and DC output protection.

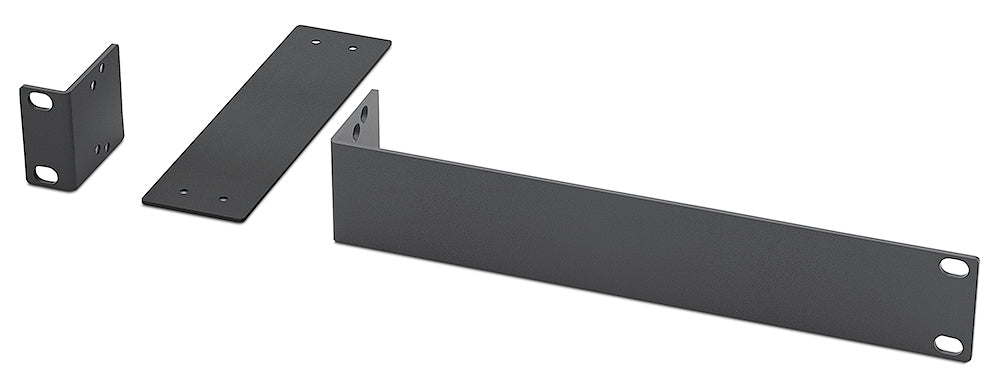

Rack Mount: Yes, with included mounting brackets or optional rack shelf

Enclosure: Metal

Enclosure Dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)

Product Weight: 4.2 lbs (1.9 kg)

Regulatory Compliance: CE, CCC, CEC, CISPR 22 Class B, C-tick, c-UL, ENERGY STAR, European Code of Conduct, FCC Class B, ICES, KC, RoHS, UL, VCCI Class B. UL rated for plenum airspaces (UL 2043, CAN/ULC_S142:16). Meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for multimedia equipment.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | XPA U 358C-100V 60-1762-11 | Everlast Power Supplies

Brochure | XPA U 358C-100V 60-1762-11 | In-Depth Independent Review of XPA Ultra Amplifier

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (xpa_ultra_series_rev_a4.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra Series - Power Amplifiers (XPA_Ultra_Series_Rev_A4_CN_Online.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra Series - Power Amplifiers (XPA-Ultra-Series_BR_A4_EN_RevA4_Japanese.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | Alimentatori Everlast

Brochure | XPA U 358C-100V 60-1762-11 | Ausführliche, unabhängige Bewertung des XPA Ultra-Verstärkers

Brochure | XPA U 358C-100V 60-1762-11 | Everlast 电源

Brochure | XPA U 358C-100V 60-1762-11 | Everlast-Netzteile

Brochure | XPA U 358C-100V 60-1762-11 | Fuentes de alimentación Everlast

Brochure | XPA U 358C-100V 60-1762-11 | Sources d'alimentation Everlast

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_GE_RevA4.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_IT_RevA4.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_SP_RevA4.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_FR_RevA4.pdf)

Brochure | XPA U 358C-100V 60-1762-11 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_RU_RevA4.pdf)

Manual | XPA U 358C-100V 60-1762-11 | Cleaning Instruction Card

Manual | XPA U 358C-100V 60-1762-11 | XPA Ultra Series Setup Guide

Manual | XPA U 358C-100V 60-1762-11 | XPA Ultra Series User Guide

Manual | XPA U 358C-100V 60-1762-11 | XPA Ultra

Manual | XPA U 358C-100V 60-1762-11 | XPA Ultra Series Audio Power Amplifiers - Guía de configuración

Specifications | XPA U 358C-100V 60-1762-11 | XPA Ultra Series 358C-70V, 358C-100V

Panel Drawing | XPA U 358C-100V 60-1762-11 | XPA U 358C
