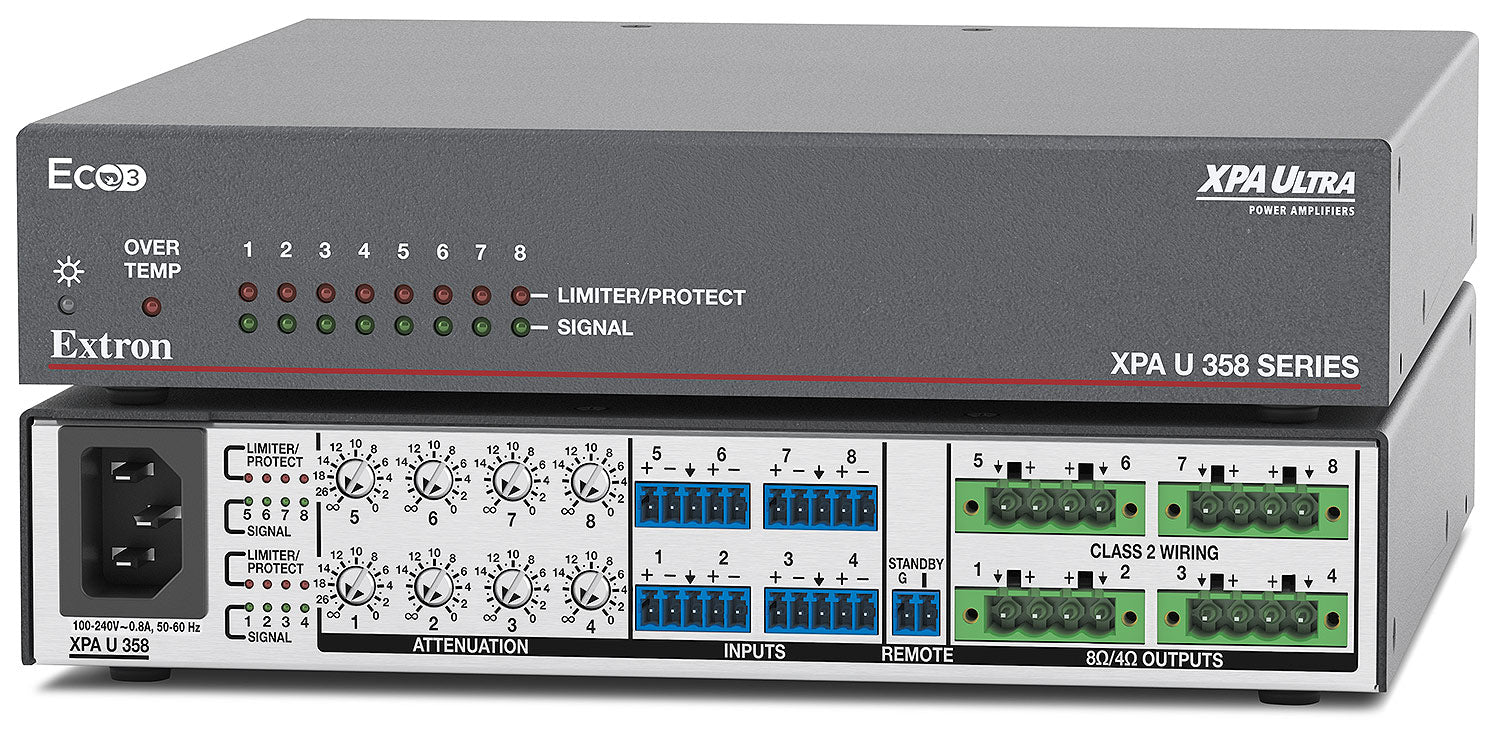

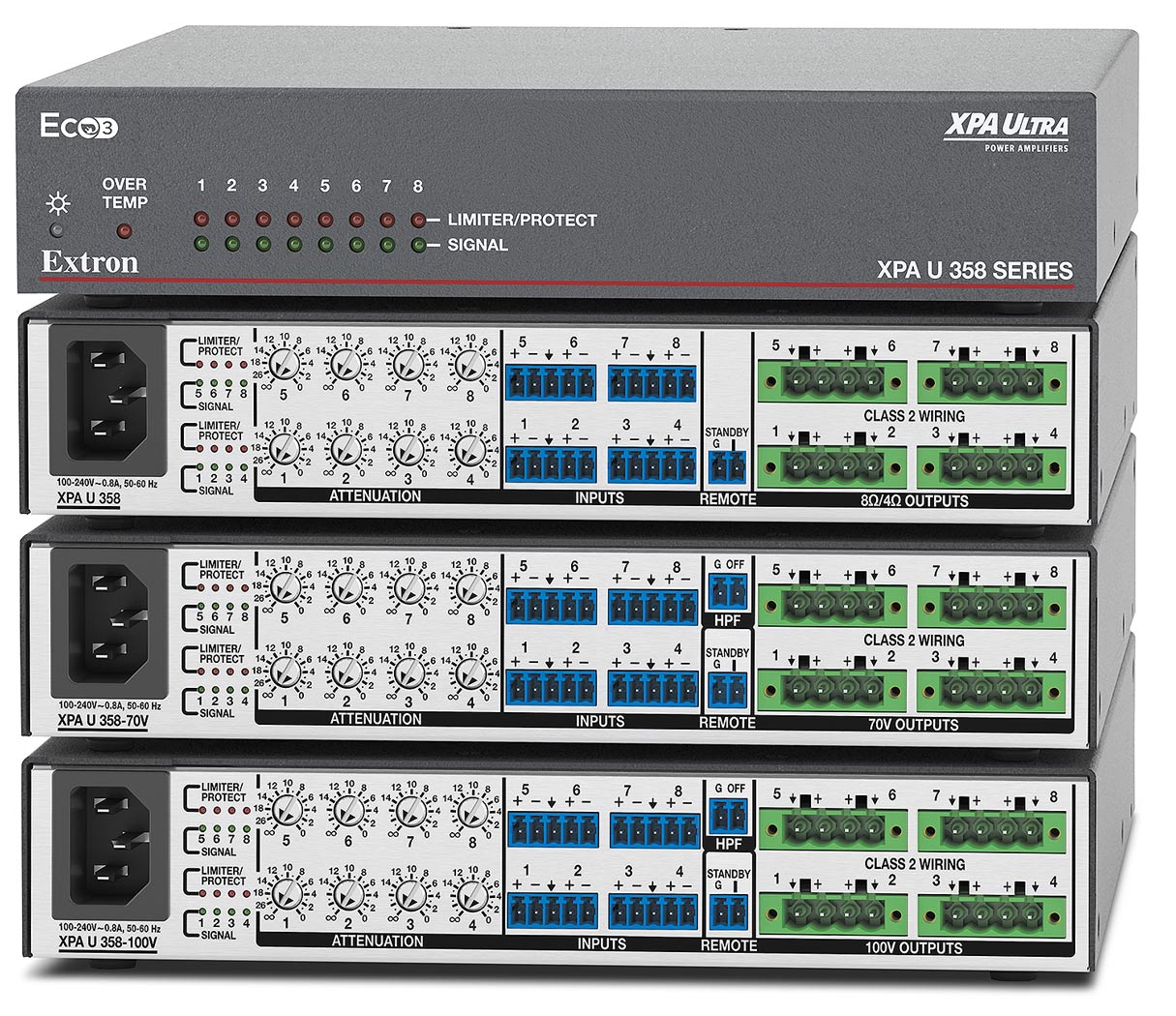

Part number 60-1759-01 — Eight-channel Class D power amplifier from Extron's XPA Ultra series.

Each of the eight channels drives 35 watts into an 8 or 4 ohm speaker load, packing a high channel count into a half-rack-width, 1U enclosure. Convection cooling with no fan or vents lets multiple units stack in a rack without extra clearance for airflow, useful in projects with many small zones such as ceiling speaker paging or background music.

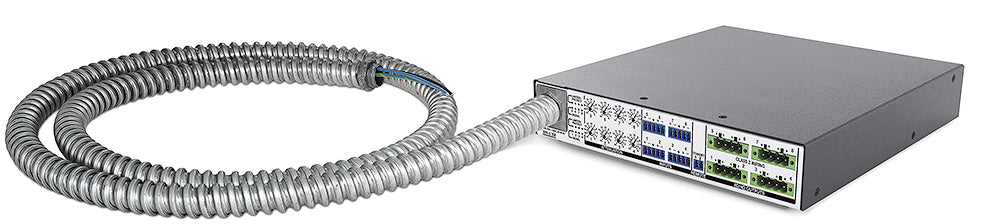

Four 5-pole captive-screw connectors carry the eight balanced/unbalanced audio channels, with output split across four 4-pole screw-lock terminals wired for 12-22 AWG cable. A single 2-pole control port supports standby switching via external contact closure. Extron rates the enclosure for plenum installation and backs the internal power supply with a 7-year Everlast warranty on top of standard product coverage. This model is speaker-load only — for constant-voltage 70V or 100V lines, see the XPA U 358-70V or -100V variants.

Specifications

Part Number: 60-1759-01

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 14x (23 dB)

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 8 balanced/unbalanced

Audio Input Connectors: (4) 3.5 mm captive screw connectors, 5-pole

Audio Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu, balanced

Input Sensitivity: +4 dBu

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 8 channels, 4 or 8 ohms

Audio Output Connectors: (4) 5 mm screw-lock captive screw connectors, 4-pole

Load Impedance: 4 ohms minimum

Output Power: 35 watts RMS per channel @ 4 ohms; 35 watts RMS per channel @ 8 ohms (1 kHz, 0.1% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1% @ 1 kHz, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

Control Port: (1) 3.5 mm captive screw, 2-pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = Standby

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 1/8 Power 8Ω): 50.0 W

Power Consumption (115 VAC, Quiescent): 8.5 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Over Temp LED indicates when the amplifier exceeds recommended operating temperature. Power LED indicates power state and DC output protection.

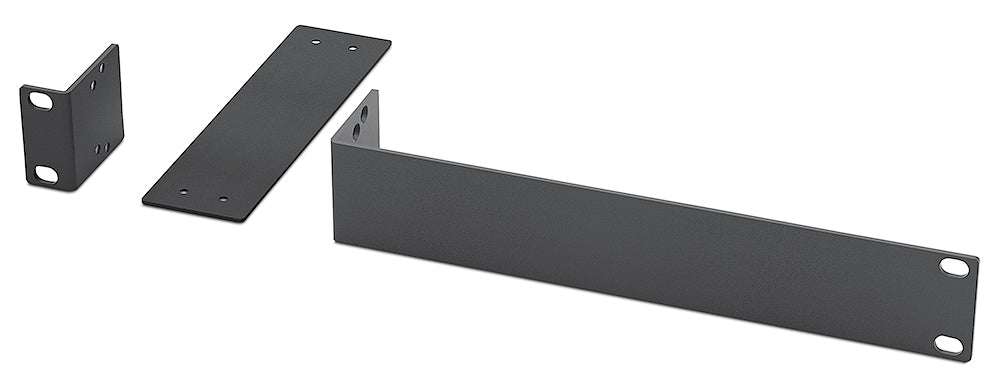

Rack Mount: Yes, with included mounting brackets or optional rack shelf

Enclosure: Metal

Enclosure Dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)

Product Weight: 4.2 lbs (1.9 kg)

Regulatory Compliance: CE, CCC, CEC, CISPR 22 Class B, C-tick, c-UL, Ecofficient Level 3, European Code of Conduct, FCC Class B, ICES, KC, RoHS, UL, VCCI Class B. UL rated for plenum airspaces (UL 2043, CAN/ULC_S142:16). Meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for AV multimedia equipment.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
