Extron XPA U 358-100V 8-Channel Power Amplifier 60-1759-12

Extron XPA U 358-100V 8-Channel Power Amplifier 60-1759-12

Manufacturer: Extron

Type: Power Amplifiers

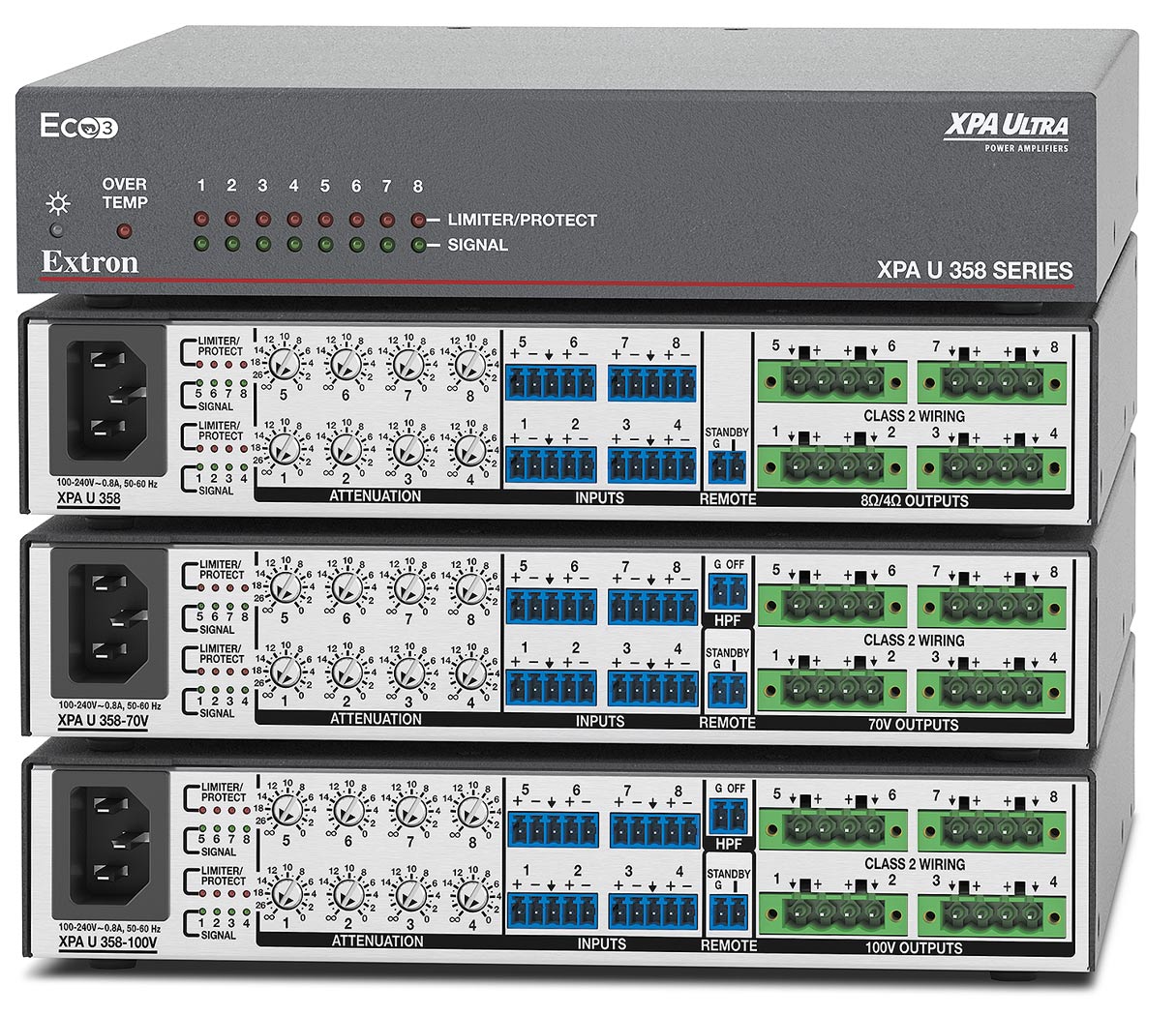

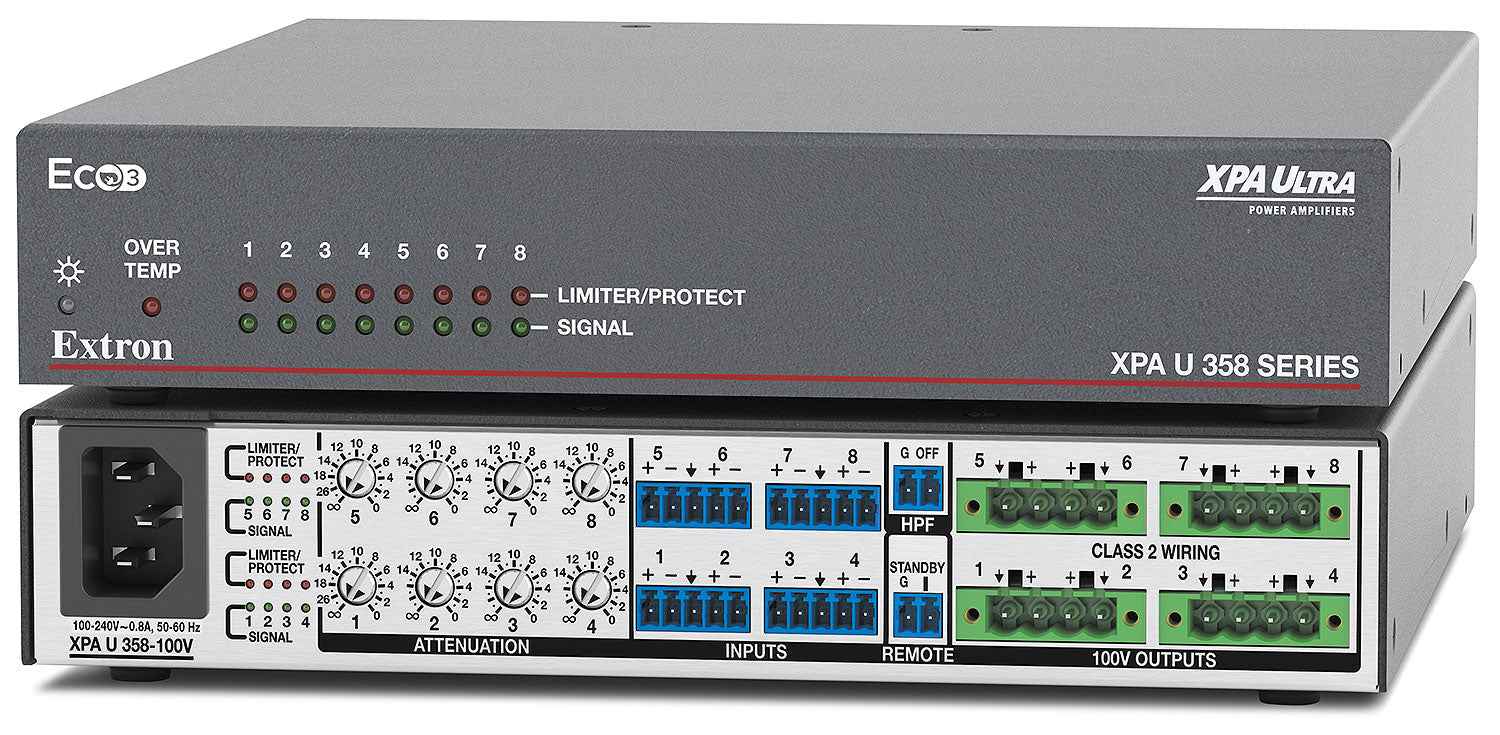

Extron XPA U 358-100V Eight-Channel Power Amplifier

  • • Eight channels, 35W each into a 100V constant-voltage line
  • • Switchable 80Hz high-pass filter protects loudspeakers
  • • Half-rack, fanless 1U chassis, UL 2043 plenum rated
  • • Independent standby and high-pass filter control ports
  • • 7-year Everlast power supply warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XPAU358100V-60175912

Details

Part number 60-1759-12 — 100V constant-voltage version of the eight-channel XPA Ultra 358 Class D power amplifier.

Each of the eight channels drives 35 watts onto a 100-volt distributed-audio line, with a switchable 80 Hz high-pass filter to protect ceiling and pendant speakers from low-frequency overdrive. The half-rack, 1U metal enclosure cools by convection alone, letting units stack closely without dedicated airflow clearance.

Four 5-pole captive-screw connectors carry the eight balanced/unbalanced inputs, while output lands on four 4-pole screw-lock terminals wired for 12-22 AWG cable. Two 2-pole control ports handle standby switching and high-pass filter selection independently via external contact closure. Extron rates the chassis for plenum installation and backs the internal power supply with a 7-year Everlast warranty in addition to standard product coverage.
