Extron XPA U 2004 FX Four Channel Power Amplifier
- • Extron XPA U 2004 FX 4-channel 200W power amplifier
- • Frequency response 20 Hz to 20 kHz, +/-1 dB
- • Voltage gain 33 dB at 8 ohm, up to 38 dB at 100 V
- • Sales, replacement and exchange
- • Part# 60-2026-01 / 60202601
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron XPA U 2004 FX (part number 60-2026-01) - a four-channel, 200 watt Class D amplifier whose every output is configurable for low-impedance or constant-voltage duty.

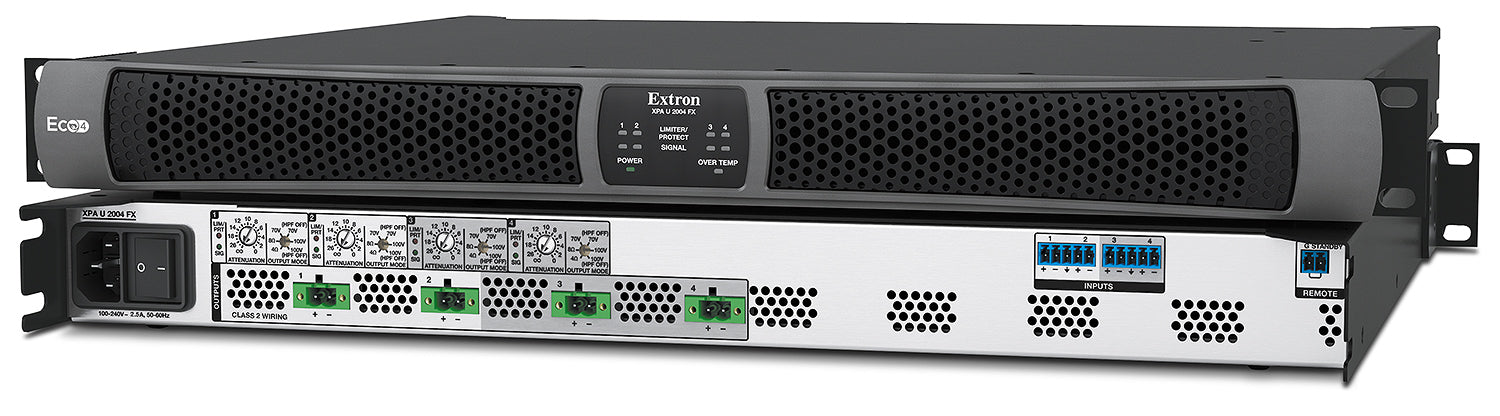

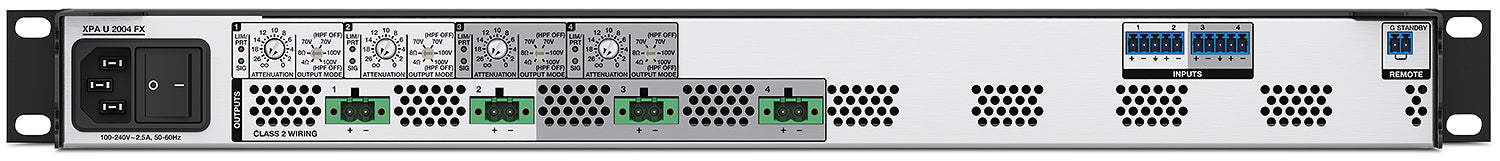

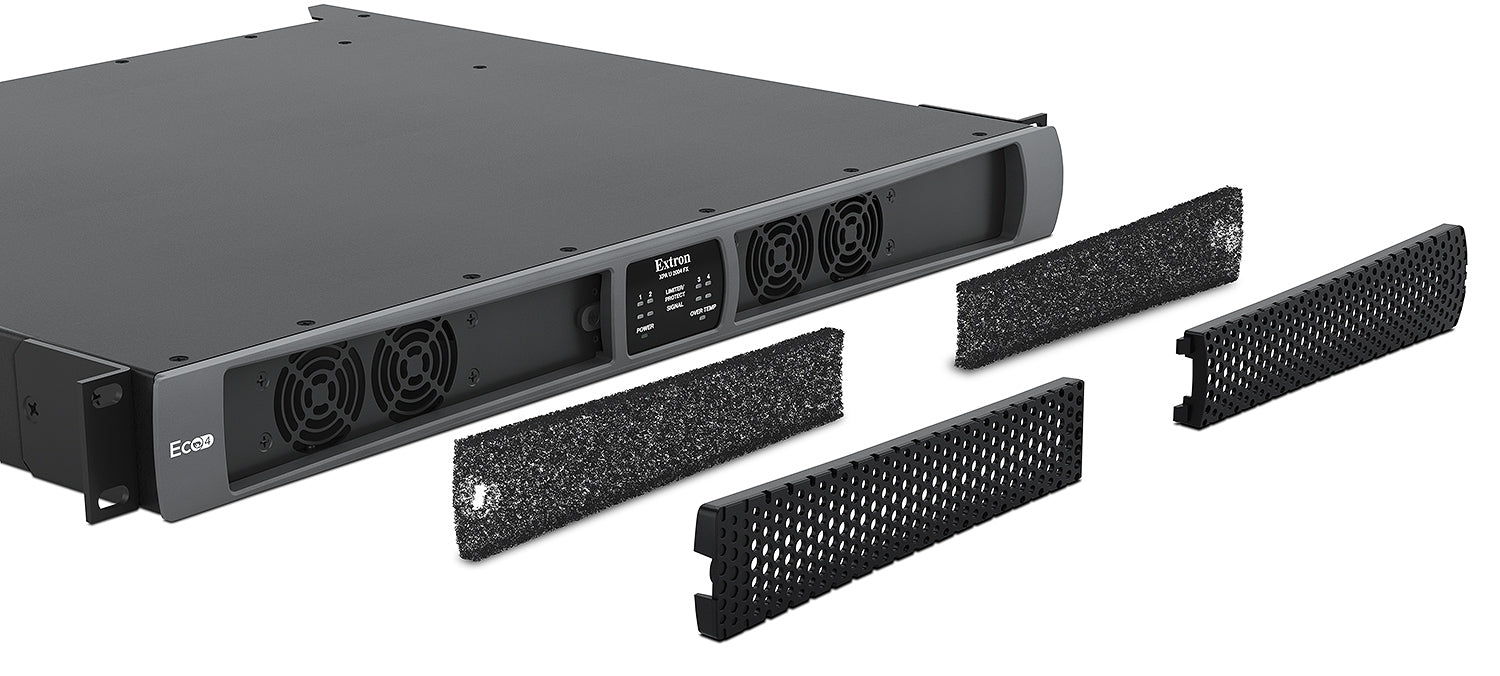

Rotary switches on the rear panel set each channel independently to 8 ohm, 4 ohm, 70 V or 100 V, so a single 1U box can drive a low-Z boardroom pair, a 70 V corridor line and a 100 V overflow zone at once. Power is pooled across adjacent channel pairs: leave one channel of a pair unused and the other delivers 400 watts. InstaWake+ brings the amplifier back to full output from auto-standby in under 5 milliseconds, and the fan-cooled aluminium chassis draws air front to rear so it needs no empty rack slot for ventilation.
Key Capabilities
- 200 W per channel with all four driven into 4 ohm, 8 ohm, 70 V or 100 V at 0.1% THD
- 400 W from one channel of an adjacent pair when the other is idle
- Output mode selected per channel by rear-panel rotary switch
- InstaWake+ returns the amplifier to full power from standby in under 5 ms
- Switch-selectable 80 Hz high-pass filter at 12 dB per octave in 70 V and 100 V modes
- Front and rear rack hardware included; fan cooling needs no adjacent empty rack space
Where It Is Used
Multi-zone commercial audio where the zone types are mixed and rack space is tight: corporate campuses, university teaching blocks, houses of worship, hotels and conference venues, retail and transport concourses. The flexible power pool is particularly useful where one zone needs materially more headroom than its neighbours.
Specifications at a Glance
- Voltage gain 46x (33 dB) in 8 ohm mode up to 81x (38 dB) in 100 V mode
- Frequency response 20 Hz to 20 kHz, plus/minus 1 dB; S/N 100 dB unweighted
- Idle draw 28.0 W at 115 VAC; CMRR 75 dB typical at 1 kHz
- Enclosure 1.74 in H x 17.31 in W x 16.5 in D (1U, full rack), 10.1 lb
- Ecofficient Level 2; 3 years parts and labor plus 7 year Everlast supply warranty
Frequently asked questions about the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier
Does Ampronix sell the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier (60-2026-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier?
Yes. Ampronix provides sales, replacement and exchange for the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier. Call Ampronix for a quote.
Is the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier listed under other names?
Yes. The Extron XPA U 2004 FX 4-Channel 200W Power Amplifier is also referenced as Extron XPAU2004FX, XPA-U-2004-FX, part number 60202601.
What are the key features of the Extron XPA U 2004 FX 4-Channel 200W Power Amplifier?
Key points: 200 W per channel with all four driven into 4 ohm, 8 ohm, 70 V or 100 V at 0.1% THD; 400 W from one channel of an adjacent pair when the other is idle; Output mode selected per channel by rear-panel rotary switch; InstaWake+ returns the amplifier to full power from standby in under 5 ms. Call Ampronix to confirm details for your application.
Also referenced as Extron XPAU2004FX, XPA-U-2004-FX, part number 60202601.
