Part number 60-1301-01 — Four-channel Class D amplifier with switchable bridging from Extron's XPA Ultra series.

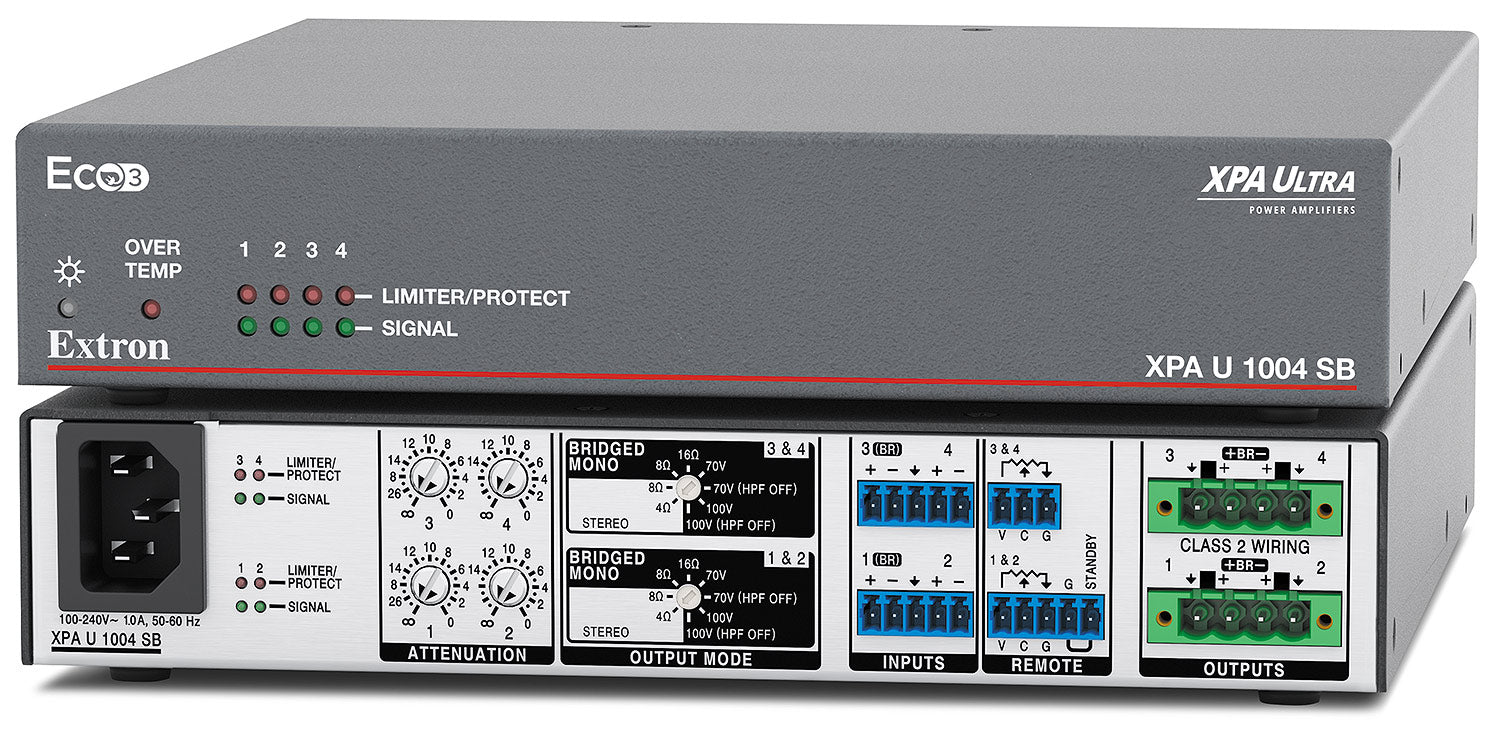

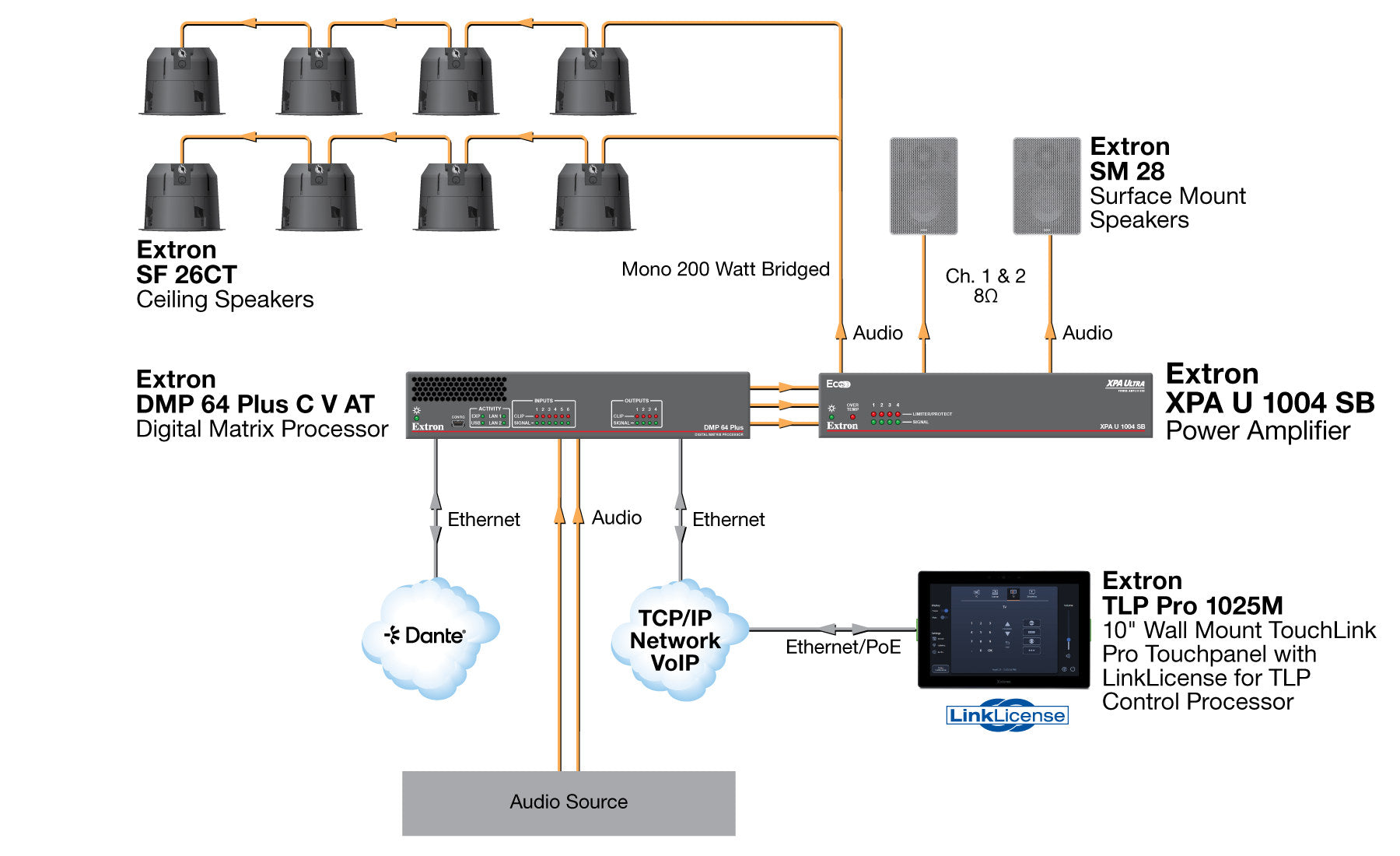

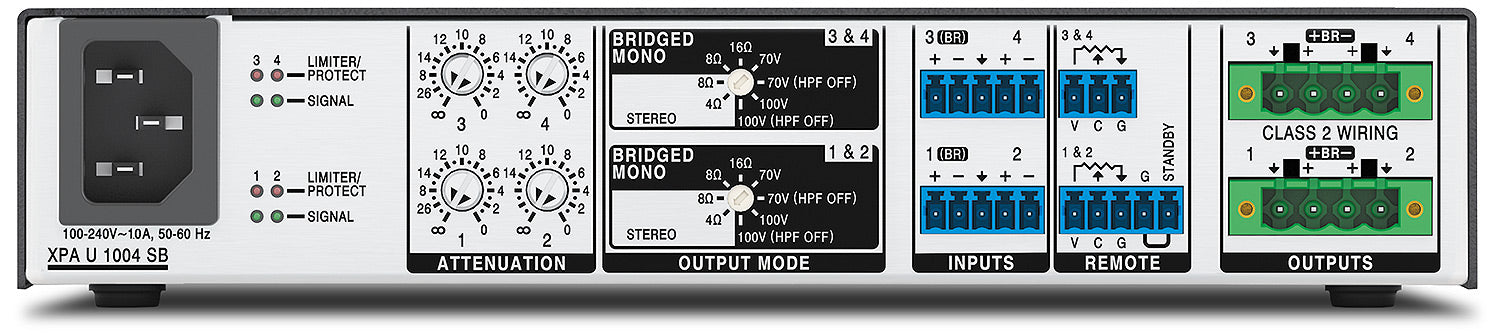

A rear rotary switch reconfigures the four channels per pair: run stereo at 100 watts per channel into 4 or 8 ohms, or bridge each pair into a single higher-output channel — 200 watts into 8 or 16 ohm speaker loads, or 200 watts into a 70V or 100V constant-voltage line with a switchable 80 Hz high-pass filter. That flexibility lets one chassis cover mixed zones that would otherwise need separate low-impedance and 70V/100V amplifiers.

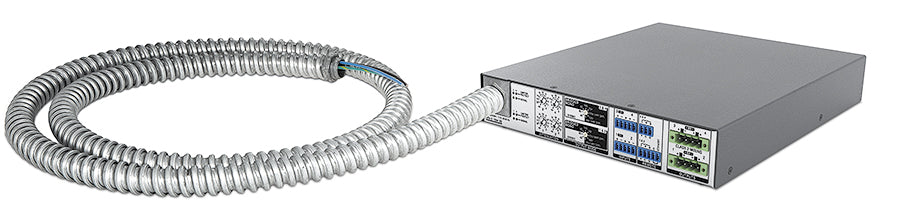

The half-rack, 1U aluminum enclosure cools by convection with no fans or vents. A dedicated captive-screw port accepts DC volume and mute commands from an Extron VCM or MediaLink controller, while a separate 5-pole port handles standby switching. Extron rates the chassis for plenum installation, notes ENERGY STAR qualification, and backs the internal power supply with a 7-year Everlast warranty in addition to standard product coverage.

Specifications

Part Number: 60-1301-01

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain - Stereo Mode (8 ohm): 23x (27 dB)

Voltage Gain - Stereo Mode (4 ohm): 16x (24 dB)

Voltage Gain - Bridged Mono Mode (16 ohm): 46x (33 dB)

Voltage Gain - Bridged Mono Mode (8 ohm): 33x (30 dB)

Voltage Gain - Bridged Mono Mode (70V): 57x (35 dB)

Voltage Gain - Bridged Mono Mode (100V): 81x (38 dB)

CMRR: 75 dB @ 1 kHz (typical)

Audio Input Number/Signal Type: 4 balanced/unbalanced

Audio Input Connectors: (2) 5-pin 3.5mm captive connectors

Audio Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu, balanced

Input Sensitivity: +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 4 channels, 8 or 4 ohms; or 2 bridged mono, 8 ohms, 16 ohms, 70V or 100V

Audio Output Connectors: (2) 5 mm screw lock captive screw connectors, 4 pole

Load Impedance - Stereo Mode (8 ohm): 8 ohms minimum

Load Impedance - Stereo Mode (4 ohm): 4 ohms minimum

Load Impedance - Bridged Mono Mode (16 ohm): 16 ohms minimum

Load Impedance - Bridged Mono Mode (8 ohm): 8 ohms minimum

Load Impedance - Bridged Mono Mode (70V): 25 ohms minimum

Load Impedance - Bridged Mono Mode (100V): 50 ohms minimum

Output Power - Stereo Mode: 100 watts per channel, 4 or 8 ohms, 1 kHz, 0.2% THD

Output Power - Bridged Mono, Low Impedance: 200 watts per channel, 8 ohms or 16 ohms, 1 kHz, 0.2% THD

Output Power - Bridged Mono, High Impedance: 200 watts per channel, 70V or 100V, 1 kHz, 0.2% THD

Frequency Response: 20 Hz to 20 kHz, ±1 dB, 8 ohms / 70V / 100V

THD + Noise: 0.2% @ 1 kHz, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

High Pass Filter (Bridged Mono, 70V or 100V): 80 Hz, 12 dB per octave rolloff (switch selectable)

Control Port: (1) 3.5 mm captive screw connector, 5-pole; (1) 3.5 mm captive screw connector, 3-pole

DC Volume Control (Analog): Pin 1 = +10 VDC, 50 mA (max.); Pin 2 = volume/mute (variable voltage); Pin 3 = GND

Standby Power Control (Contact Closure): Pin 4 = GND, Pin 5 = Standby

Power: 100-240 VAC, 50-60 Hz, internal

Power Consumption (115 VAC, Active 1/8 Power, Stereo 8Ω): 66.7 W

Power Consumption (115 VAC, Quiescent): 9.2 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents

Protection: Clip limiting, thermal, short circuit, DC output

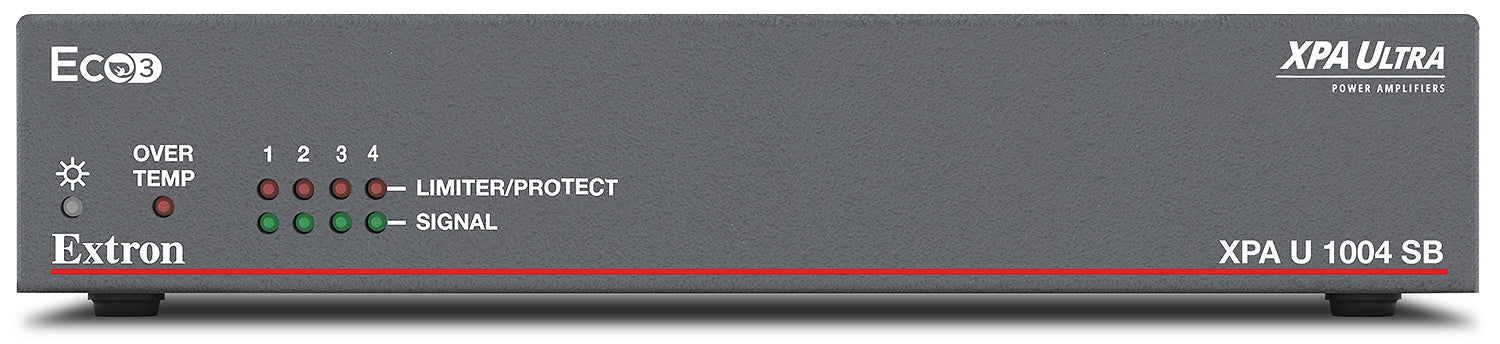

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Power LED indicates DC output protection.

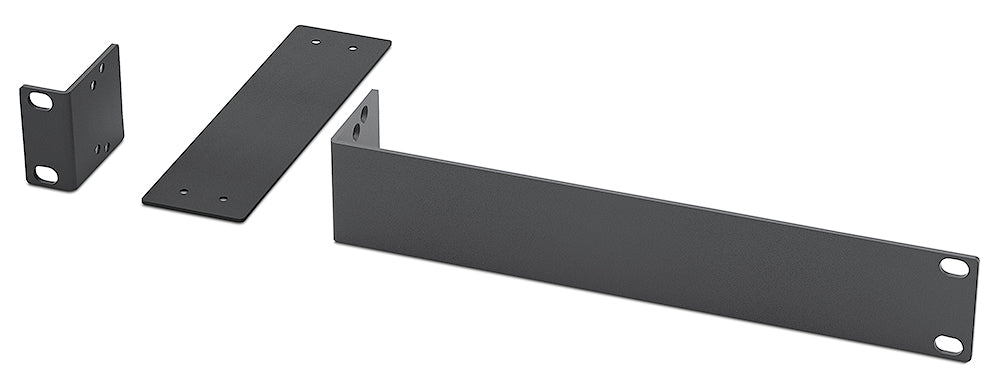

Rack Mount: Yes, with included brackets and optional rack shelf

Enclosure: Metal (Aluminum)

Enclosure Dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)

Product Weight: 4.2 lbs (1.9 kg)

Regulatory Compliance: CE, c-UL, UL, CCC, C-tick, EN55032, EN55035, FCC Class B, ICES, KC, VCCI Class B, RoHS, WEEE. Meets UL 62368-1 and BSEN 62368-1. UL rated for plenum airspaces (UL 2043). ENERGY STAR qualified amplifier.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
