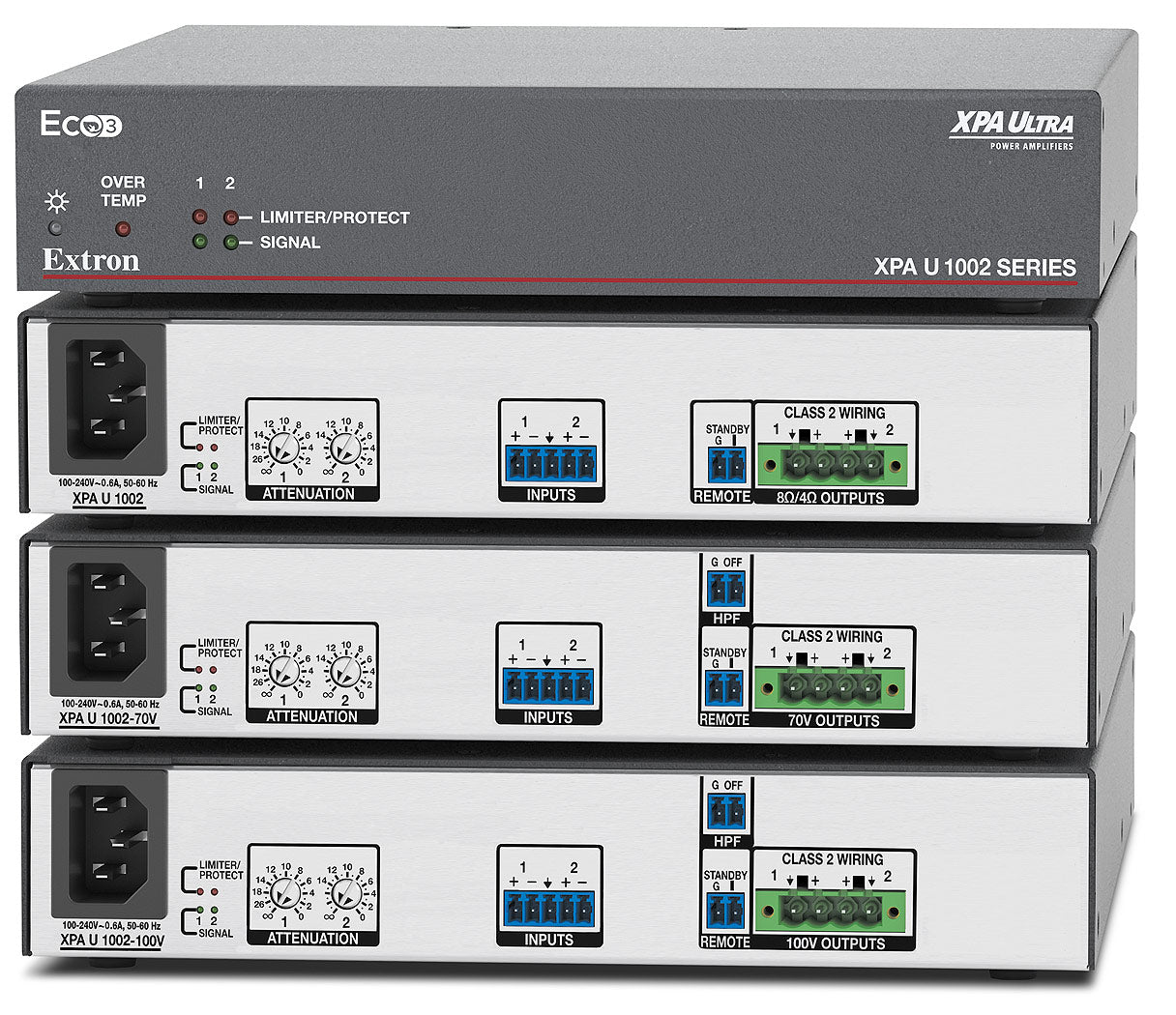

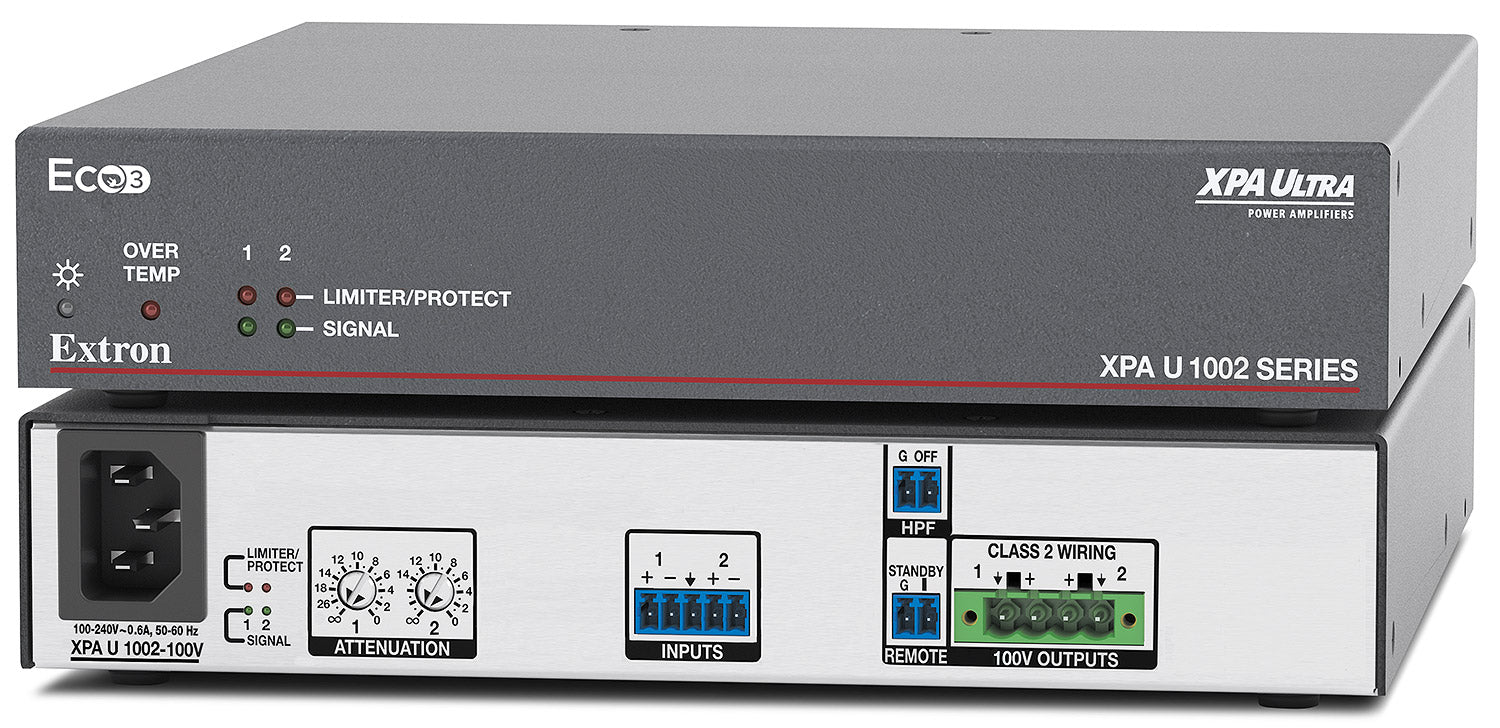

Part number 60-1761-12 - 100V constant-voltage version of the two-channel XPA Ultra 1002 Class D power amplifier.

Both channels push 100 watts each onto a 100-volt distributed-audio line, with a switchable 80 Hz high-pass filter to protect ceiling and pendant speakers from low-frequency overdrive. The half-rack, 1U metal enclosure cools by convection alone, so it can sit stacked with other equipment without dedicated airflow clearance.

A single 5-pole captive-screw connector carries both balanced/unbalanced inputs, while output lands on a 4-pole screw-lock terminal wired for 12-22 AWG cable. Two 2-pole control ports handle standby switching and high-pass filter selection independently via external contact closure. Extron rates the chassis for plenum installation and backs the internal power supply with a 7-year Everlast warranty in addition to standard product coverage.

Model: 60-1761-12 / 60176112

Frequently asked questions about the Extron XPA U 1002-100V 2-Channel Power Amplifier

Does Ampronix sell the Extron XPA U 1002-100V 2-Channel Power Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron XPA U 1002-100V 2-Channel Power Amplifier (60-1761-12). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron XPA U 1002-100V 2-Channel Power Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron XPA U 1002-100V 2-Channel Power Amplifier. Call Ampronix for a quote.

What does the Extron XPA U 1002-100V 2-Channel Power Amplifier do?

Key details: Both channels push 100 watts each onto a 100-volt distributed-audio line, with a switchable 80 Hz high-pass filter to protect ceiling and pendant speakers from low-frequency overdrive. Call Ampronix to confirm it fits your installation.

What is the part number for the Extron XPA U 1002-100V 2-Channel Power Amplifier?

The part number is 60-1761-12. Quote 60-1761-12 when you contact Ampronix to order.

Will the Extron XPA U 1002-100V 2-Channel Power Amplifier work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron XPA U 1002-100V 2-Channel Power Amplifier is the right fit before you order.

How do I get a quote or lead time for the Extron XPA U 1002-100V 2-Channel Power Amplifier?

Call Ampronix with the model (60-1761-12) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 60-1761-12

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 81x (38 dB)

CMRR: 75 dB @ 1 kHz (typical)

Audio Input Number/Signal Type: 2 balanced/unbalanced

Audio Input Connectors: (1) 3.5 mm captive screw connector, 5 pole

Audio Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Sensitivity: +4 dBu

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 2 channels, 100 V

Audio Output Connectors: (1) 5 mm screw lock captive screw connector, 4 pole (accepts 22-12 AWG)

Load Impedance: 100 ohms minimum

Output Power: 100 watts per channel @ 100 V (1 kHz, 0.2% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1% @ 1 kHz, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 100 ohms

High Pass Filter: 80 Hz, 12 dB per octave rolloff, selectable via captive screw

Control Port: (2) 3.5 mm captive screw connectors, 2-pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = Standby

High Pass Filter Control (Contact Closure): Pin 1 = GND, pin 2 = OFF

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 100V Line): 35.6 W

Power Consumption (115 VAC, Quiescent): 5.4 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Over Temp LED indicates when the amplifier exceeds recommended operating temperature. Power LED indicates power state and DC output protection.

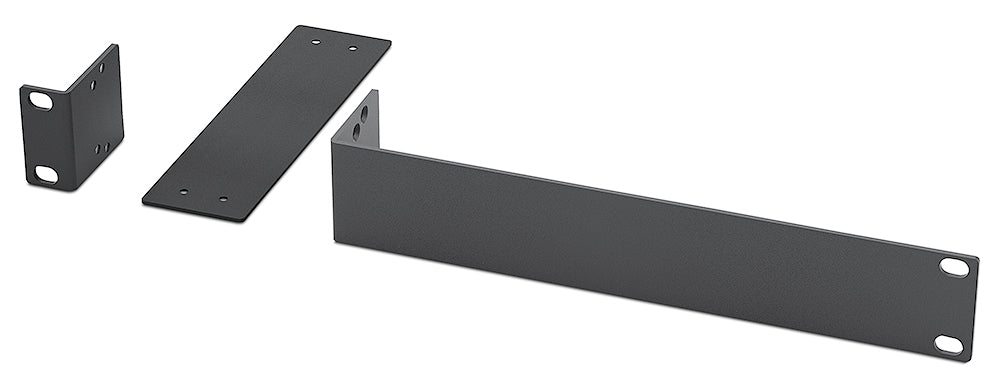

Rack Mount: Yes, with included mounting brackets or optional rack shelf

Enclosure: Metal

Enclosure Dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)

Product Weight: 3.4 lbs (1.5 kg)

Regulatory Compliance: CCC, CE, C-tick, c-UL, EN55032, EN55035, Ecofficient Level 3, FCC Class B, ICES, KC, UL, VCCI Class B. Meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for multimedia equipment. RoHS, WEEE. UL rated for plenum airspaces (UL 2043).

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

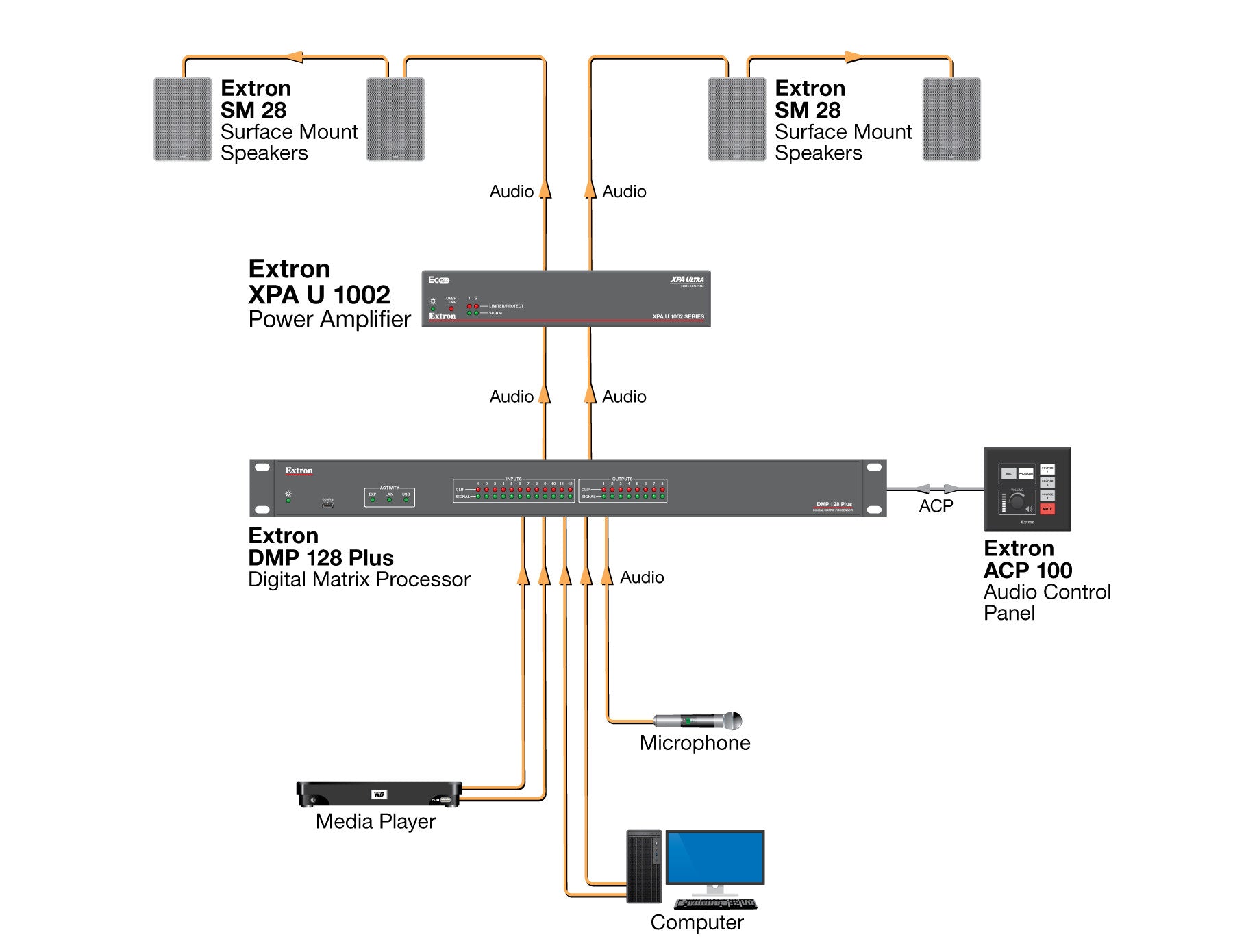

Diagram
