Details

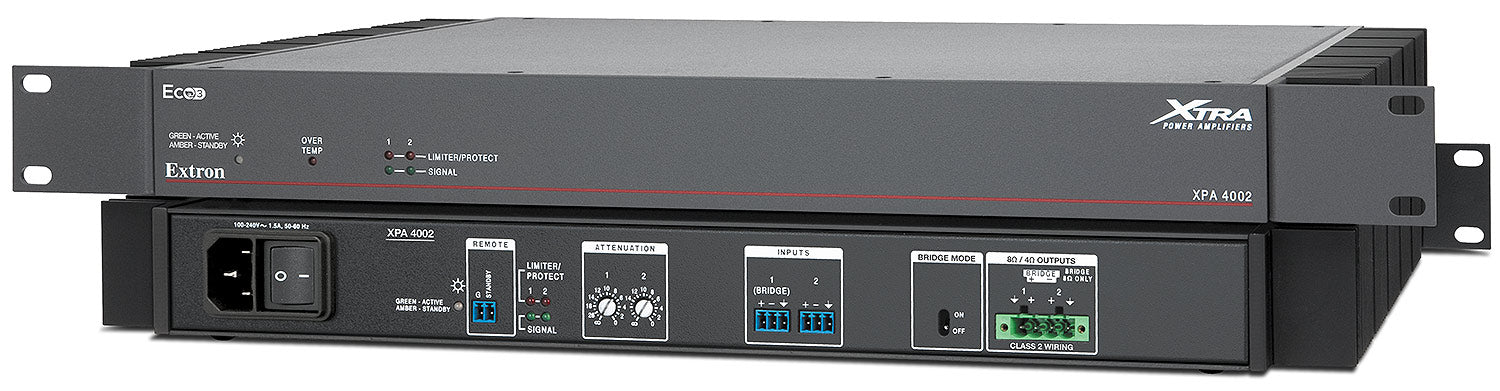

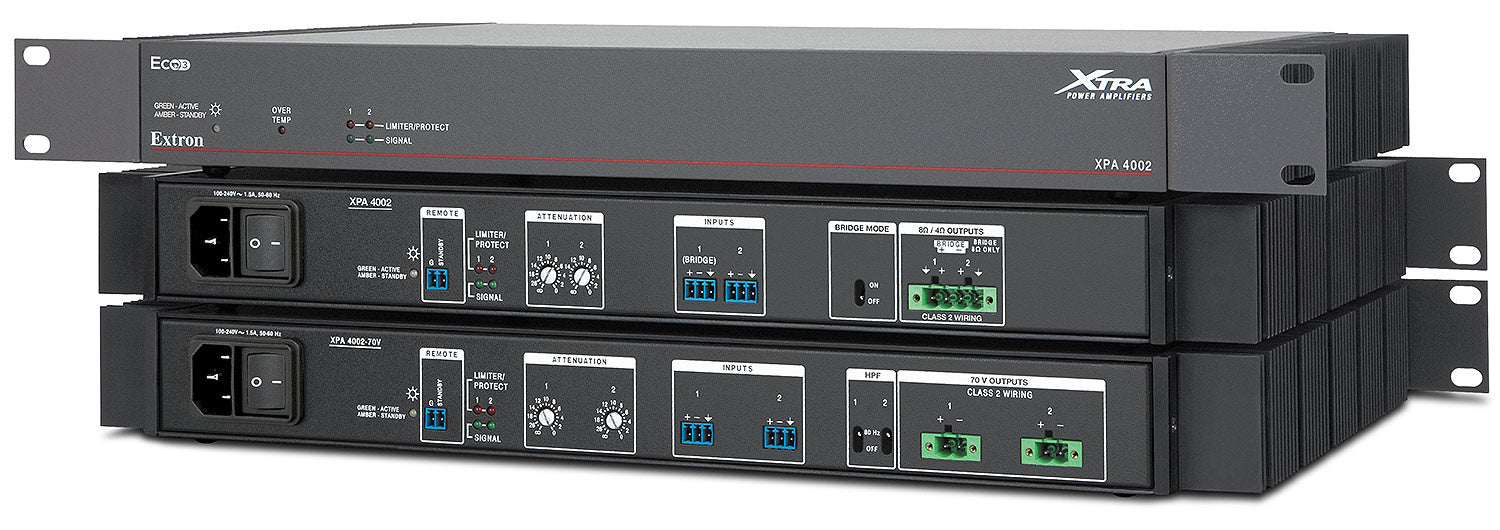

Part number 60-1244-01 — Two-channel Class D power amplifier from Extron's XPA 4002 series.

Each of the two channels puts out 200 watts into 8 ohms or 400 watts into 4 ohms, and a bridging mode combines both into a single 800-watt output at 8 ohms for zones that need extra headroom. The 1U, full-rack-width enclosure relies entirely on convection through side heat sinks, so no fan noise reaches nearby equipment or listening spaces.

Program audio arrives through a pair of balanced/unbalanced captive-screw inputs, with output routed through a single multi-pole screw-lock terminal wired for 12-22 AWG cable. A 2-pole control port accepts a contact closure to drop the amp into standby below 1 watt, and Extron backs the internal power supply with a 7-year Everlast warranty on top of standard product coverage.

Specifications

Part Number: 60-1244-01

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 33x (30 dB)

Crosstalk: 75 dB (typical) @ 1 kHz

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 2 balanced/unbalanced

Audio Input Connectors: (2) 3.5 mm captive screw connectors, 3 pole

Audio Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Nominal Level: +4 dBu (1.23 Vrms), balanced

Maximum Level: +21 dBu (8.69 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 2 channels, 4 or 8 ohms; or 1 bridged mono, 8 ohms

Audio Output Connectors: (1) 5 mm screw lock captive screw connector, 4 pole (accepts 22-12 AWG)

Load Impedance: 4 ohms (8 ohms if bridged) minimum

Output Power: 200 watts RMS per channel @ 8 ohms; 400 watts RMS per channel @ 4 ohms; 800 watts RMS bridged mono @ 8 ohms (1 kHz, 0.05% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1%, 20 Hz to 20 kHz, 8 ohms, 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

Control Port: (1) 3.5 mm captive screw connector, 2 pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = standby

Power Input: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 1/8 Power 8Ω): 94.3 W

Power Consumption (115 VAC, Quiescent): 28.1 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents, with heat sinks on the sides

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit

Rack Mount: Yes, with included mounting brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.7" H x 17.4" W x 12.0" D (1U high, full rack wide; 19.0" W with rack ears)

Product Weight: 9.2 lbs (4.2 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
