Part number 60-563-02 — Four-channel Class D power amplifier for commercial audio distribution.

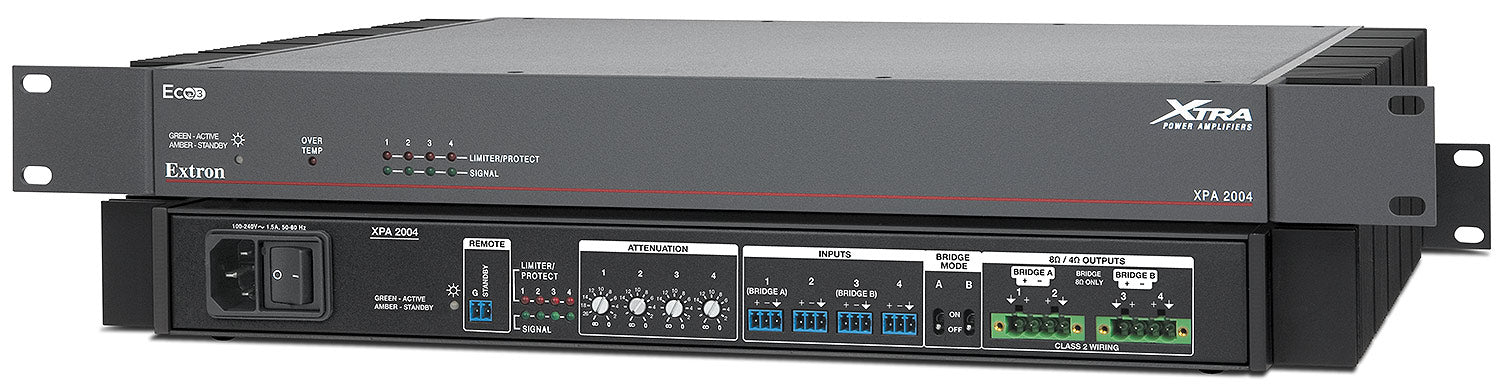

The XPA 2004 packs four independent amplifier channels into a single-rack-unit, full-rack-width enclosure, each channel producing 100 watts into 8 ohms or 200 watts into 4 ohms. A bridging option combines a pair of channels into one 400-watt output at 8 ohms for applications needing extra headroom on a single zone. Class D output stages keep both power draw and heat generation low, so the unit relies on convection alone — side-mounted heat sinks with no vents or fans — to stay cool during continuous operation.

Balanced or unbalanced program audio enters through four captive-screw input connectors, while outputs land on two multi-pole screw-lock terminals sized for 12-22 AWG wiring. A dedicated 2-pole control port lets an external contact closure drop the unit into a sub-1-watt standby state, useful for paging and background-music zones that sit idle for long stretches. Extron backs the internal power supply with its 7-year Everlast warranty on top of the standard product coverage.

Specifications

Part Number: 60-563-02

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 23x (27 dB)

Crosstalk: 75 dB (typical) @ 1 kHz

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 4 balanced/unbalanced

Audio Input Connectors: (4) 3.5 mm captive screw connectors, 3 pole

Audio Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Nominal Level: +4 dBu (1.23 Vrms), balanced

Maximum Level: +21 dBu (8.69 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 4 channels, 4 or 8 ohms; or 2 bridged mono, 8 ohms

Audio Output Connectors: (2) 5 mm screw lock captive screw connectors, 4 pole (accepts 22-12 AWG)

Load Impedance: 4 ohms (8 ohms if bridged) minimum

Output Power: 100 watts RMS per channel @ 8 ohms; 200 watts RMS per channel @ 4 ohms; 400 watts RMS bridged mono @ 8 ohms (1 kHz, 0.05% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1%, 20 Hz-20 kHz, 8 ohms, 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

Control Port: (1) 3.5 mm captive screw connector, 2 pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = standby

Power Input: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 1/8 Power 8Ω): 89.3 W

Power Consumption (115 VAC, Quiescent): 28.7 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents, with heat sinks on the sides

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit

Rack Mount: Yes, with included mounting brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.7" H x 17.4" W x 12.0" D (1U high, full rack wide; 19.0" W with rack ears)

Product Weight: 9.2 lbs (4.2 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

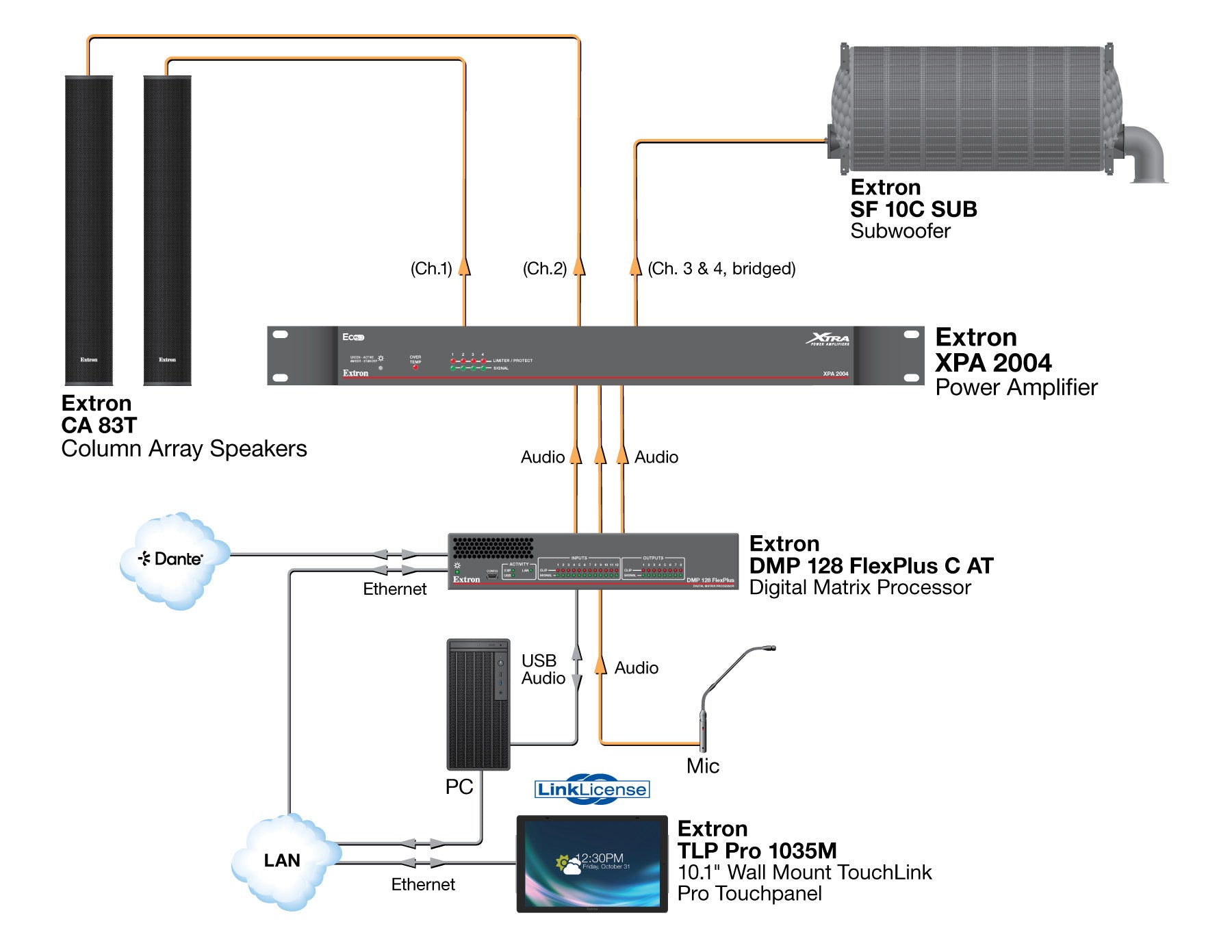

Diagram
