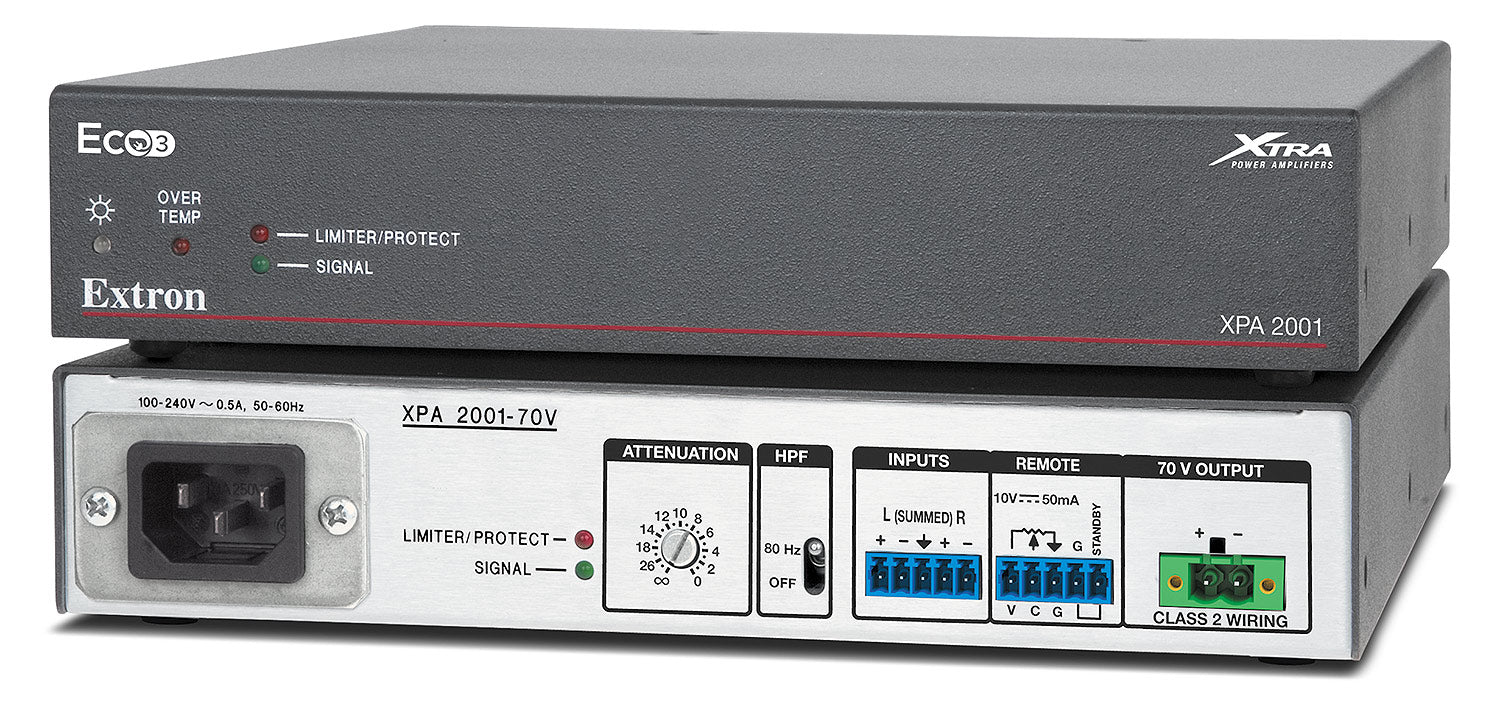

Extron XPA 2001-70V (part number 60-850-01) — a half-rack, single-channel power amplifier built for high-power 70V distributed speaker lines.

This convection-cooled, fanless amplifier delivers a full 200 watts rms into a 70V line from a compact half-rack chassis, giving integrators a single-zone, high-output option for large paging or program-audio runs. A switch-selectable 80 Hz high-pass filter protects speaker-line transformers, and the analog DC volume/mute control port lets the amplifier work with simple wall-mounted or contact-closure control systems.

Key Capabilities

200 W rms into a 70V line at 1 kHz, less than 0.1% THD
Switch-selectable 80 Hz high-pass filter protects speaker transformers
100 dB signal-to-noise ratio with damping factor greater than 100
Analog 0-10V DC volume/mute control plus contact-closure standby
Convection-cooled, fanless half-rack 1U enclosure at 2.5 lbs
Backed by a 3-year product warranty plus a 7-year Everlast power supply warranty

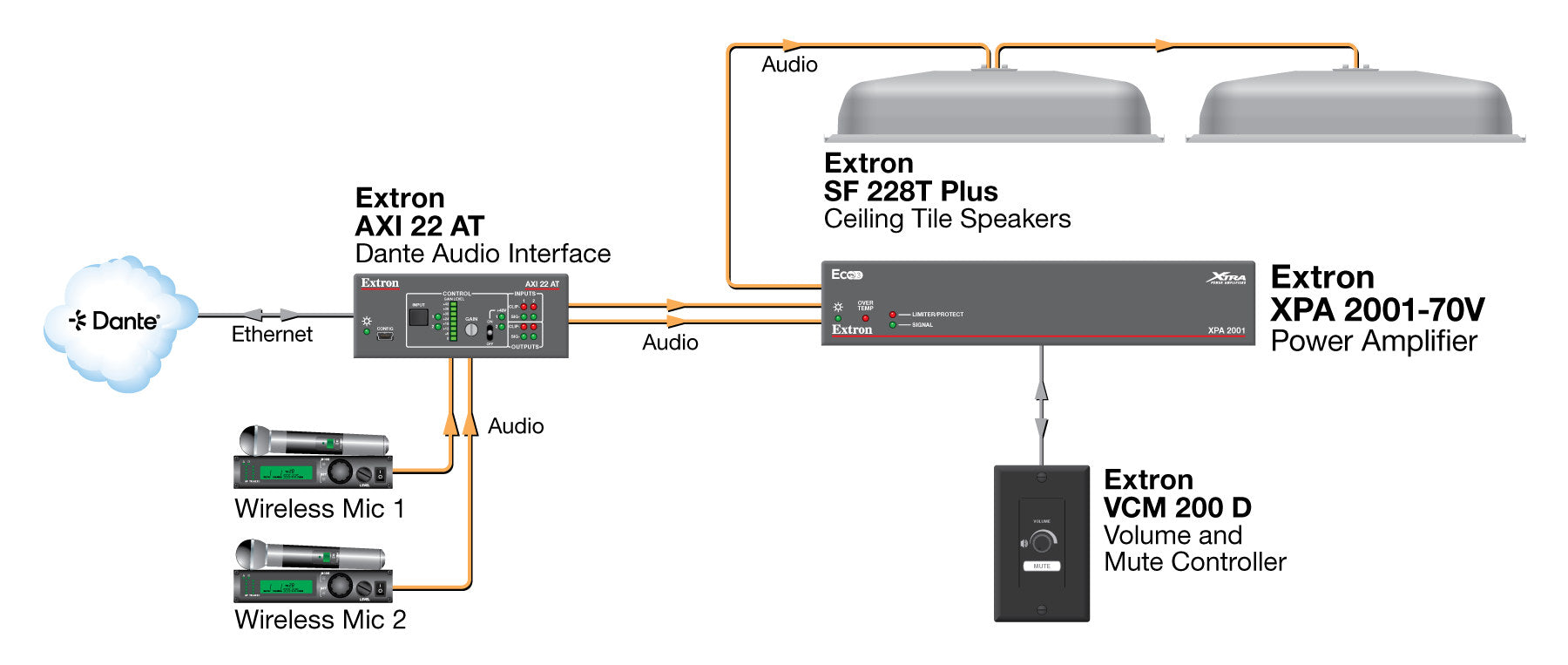

Where It Is Used

The single high-power 70V channel fits large paging zones, houses of worship, and auditoriums where one amplifier needs to drive a long run of 70V ceiling or horn speakers without stepping up to a multi-channel chassis.

Specifications at a Glance

Output: 200 W rms @ 70V, 1 kHz, <0.1% THD
Frequency response: 20 Hz to 20 kHz, ±1 dB
Enclosure: 1.7" H x 8.7" W x 9.5" D, half-rack 1U, metal, convection cooled
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron XPA200170V, XPA-2001-70V, part number 6085001.

Specifications

Part Number: 60-850-01

Manufacturer: Extron

Model: XPA 2001-70V

Condition: New

Amplifier Type: Class D

Voltage Gain: 57x (35 dB)

Output Power: 200 W rms, 70 V, 1 kHz, <0.1% THD

Load Impedance: 25 ohms minimum

Damping Factor: >100 @ 25 ohms

Audio Output: 1 mono, 70 V line; (1) 5 mm captive screw connector, 2-pole (22-12 AWG)

High-Pass Filter: 80 Hz, 12 dB per octave rolloff, switch selectable

Stereo Channel Separation: >75 dB @ 1 kHz

CMRR: 75 dB @ 1 kHz (typical)

Audio Input: 1 stereo or 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Input Nominal Level: +4 dBu (1.23 Vrms), balanced

Input Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms) single input; -2 dBu (0.615 Vrms) if both inputs summed

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD+N: <0.1% @ 1 kHz at 3 dB below clipping

S/N: 100 dB, 20 Hz - 20 kHz, unweighted

Control Port: (1) 3.5 mm captive screw connector, 5-pole

DC Volume Control (Analog): Pin 1 = +10 VDC (50 mA max), Pin 2 = volume/mute (variable voltage), Pin 3 = GND

Volume Control Voltage Range: 0 V (mute) to 10 V (maximum volume)

Standby Power Control (Contact Closure): Pin 4 = GND, Pin 5 = standby

Protection: Clip limiting, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (Active, 70V): 0.4 A / 42.2 W / 17.2 W / 59 BTU/hr at 115 VAC; 0.3 A / 43.3 W / 18.3 W / 62 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.2 A / 9.5 W / 9.5 W / 32 BTU/hr at 115 VAC; 0.1 A / 10.2 W / 10.2 W / 35 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <1 W / <1 W / <3 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents, with internal heat sinks

Mounting: Rack mountable with optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 9.5" D (4.3 x 22.1 x 24.1 cm)

Weight: 2.5 lbs (1.1 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE; UL rated for plenum airspaces, meets UL 2043

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
