Details

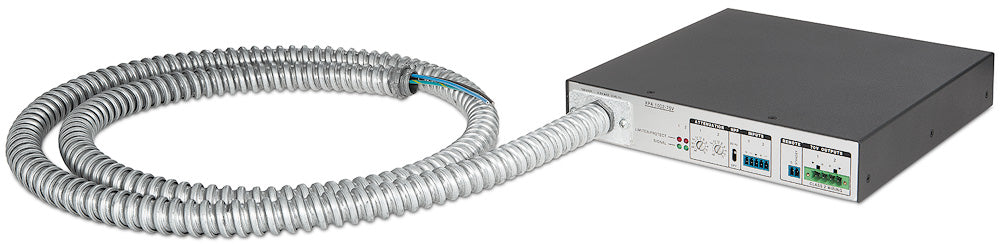

Extron XPA 1002 Plus (part number 60-849-21) — a half-rack, stereo Class D power amplifier delivering full-rated power into both 4 and 8 ohm loudspeakers.

Unlike the standard XPA 1002, which steps down to 60 watts per channel at 8 ohms, the Plus variant holds a full 100 watts per channel at both 4 and 8 ohms, or 200 watts bridged mono into a single 8 ohm load. The convection-cooled, fanless design and ultra-low inrush current mean multiple units can share a circuit without power sequencing, and an auto power-down feature drops the amplifier into standby after 25 minutes of inactivity to cut idle energy use.

Key Capabilities

100 W per channel at both 4 and 8 ohms — no power drop-off at 8 ohms
200 W bridged mono output into a single 8 ohm load
105 dB signal-to-noise ratio and 0.05% THD+N
ENERGY STAR qualified with auto power-down after 25 minutes idle
Extron CDRS Class D Ripple Suppression for a cleaner audio waveform
Convection-cooled, fanless half-rack 1U enclosure at 2.5 lbs

Where It Is Used

The Plus variant suits dual-zone or higher-power stereo applications — classrooms, boardrooms, and lecture halls — where 8 ohm ceiling speakers need the same full output as a 4 ohm pair, without stepping up to a larger chassis.

Specifications at a Glance

Output: 100 W/ch @ 4 or 8 ohms, or 200 W bridged mono @ 8 ohms
Frequency response: 20 Hz to 20 kHz, ±1 dB
Enclosure: 1.7" H x 8.7" W x 9.5" D, half-rack 1U, metal, convection cooled
Weight: 2.5 lbs (1.1 kg)

Also referenced as Extron XPA1002Plus, XPA-1002-Plus, part number 6084921.

Specifications

Part Number: 60-849-21

Manufacturer: Extron

Model: XPA 1002 Plus

Condition: New

Amplifier Type: Class D

Voltage Gain: 23x (27 dB)

Output Power (8 ohms): 100 W rms per channel, 1 kHz, <0.05% THD

Output Power (4 ohms): 100 W rms per channel, 1 kHz, <0.05% THD

Output Power (Bridged): 200 W, single channel, 8 ohms

Load Impedance: 4 ohms minimum

Audio Output: 1 stereo, 4 or 8 ohm direct; (1) 5 mm captive screw connector, 4-pole

Audio Input: 1 stereo or 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Nominal Level: +4 dBu (1.23 Vrms), balanced

Input Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD+N: 0.05% @ 20 Hz-20 kHz, 8 ohms, at 3 dB below clipping

S/N: 105 dB, 20 Hz - 20 kHz, unweighted

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 0.5 A

Power Consumption (Typical 1/8 power, 4 ohms x2): 46 watts

Power Consumption (Typical 1/8 power, 8 ohms x2): 45 watts

Power Consumption (Quiescent): 14 watts

Power Consumption (Standby): <1 watt (contact closure, or after 25 ±5 minutes with no signal)

Cooling: Convection, no vents, with internal heat sinks

Protection: Clip limiting, thermal, short circuit, DC output

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 9.5" D (4.3 x 22.1 x 24.1 cm)

Weight: 2.5 lbs (1.1 kg)

Regulatory Compliance (Safety): CCC, CE, c-UL, GS, KC Mark, PSE, S Mark, UL, BSMI; UL rated for plenum airspaces, UL 2043; meets UL 60065, IEC 60065, BSEN 60065

Regulatory Compliance (Environmental): ENERGY STAR qualified, EU code of conduct, RoHS, WEEE

Auto Power-Down: Places amplifier into standby after 25 minutes (±5 minutes) of inactivity, or via contact closure

Remote Control Port: Volume/mute compatible with optional Extron VCM 100, VCM 200, or VC 50 controllers; separate remote standby port

Diagram

Resources

Brochure | XPA 1002 Plus 60-849-21 | XPA 1002 Series

Brochure | XPA 1002 Plus 60-849-21 | XTRA Series

Brochure | XPA 1002 Plus 60-849-21 | Everlast Power Supplies

Brochure | XPA 1002 Plus 60-849-21 | Gamme XTRA

Brochure | XPA 1002 Plus 60-849-21 | Serie XTRA (xtraseries_spbro_revB.pdf)

Brochure | XPA 1002 Plus 60-849-21 | Serie XTRA (XtraSeries_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | XPA 1002 Plus 60-849-21 | XTRA-Serie

Brochure | XPA 1002 Plus 60-849-21 | Alimentatori Everlast

Brochure | XPA 1002 Plus 60-849-21 | Everlast 电源

Brochure | XPA 1002 Plus 60-849-21 | Everlast-Netzteile

Brochure | XPA 1002 Plus 60-849-21 | Fuentes de alimentación Everlast

Brochure | XPA 1002 Plus 60-849-21 | Sources d'alimentation Everlast

Brochure | XPA 1002 Plus 60-849-21 | XPA 1002 - Bid Sheet

Brochure | XPA 1002 Plus 60-849-21 | XTRA 系列

Brochure | XPA 1002 Plus 60-849-21 | XTRAシリーズ

Manual | XPA 1002 Plus 60-849-21 | Cleaning Instruction Card

Manual | XPA 1002 Plus 60-849-21 | XTRA Series Half-Rack Audio Power Amplifiers Setup Guide

Manual | XPA 1002 Plus 60-849-21 | XTRA™ Series User Guide

Manual | XPA 1002 Plus 60-849-21 | XTRA Series Half-Rack Audio Power Amplifiers SUG Simplified Chinese

Manual | XPA 1002 Plus 60-849-21 | XTRA Series Half-Rack Audio Power Amplifiers SUG TCH

Manual | XPA 1002 Plus 60-849-21 | XTRA Series Half-Rack Audio Power Amplifiers SUG Traditional Chinese

Specifications | XPA 1002 Plus 60-849-21 | XPA 1002

Panel Drawing | XPA 1002 Plus 60-849-21 | XPA 1002

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron XPA 1002 Plus 100W Half-Rack Power Amplifier 60-849-21

Name: Extron XPA 1002 Plus 100W Half-Rack Power Amplifier 60-849-21
Brand: Extron
SKU: EXTRON-XPA1002PLUS-6084921
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron XPA 1002 Plus Half-Rack Power Amplifier

• 100 W per channel at both 4 and 8 ohms, no power drop-off
• 200 W bridged mono output into a single 8 ohm load
• 105 dB signal-to-noise ratio with 0.05% THD+N
• ENERGY STAR qualified with auto power-down after 25 minutes idle
• Extron CDRS Class D Ripple Suppression for cleaner audio
• Fanless, convection-cooled half-rack 1U enclosure weighs 2.5 lbs

Product discontinued. Replacement: https://www.extron.com/product/xpau1002.
