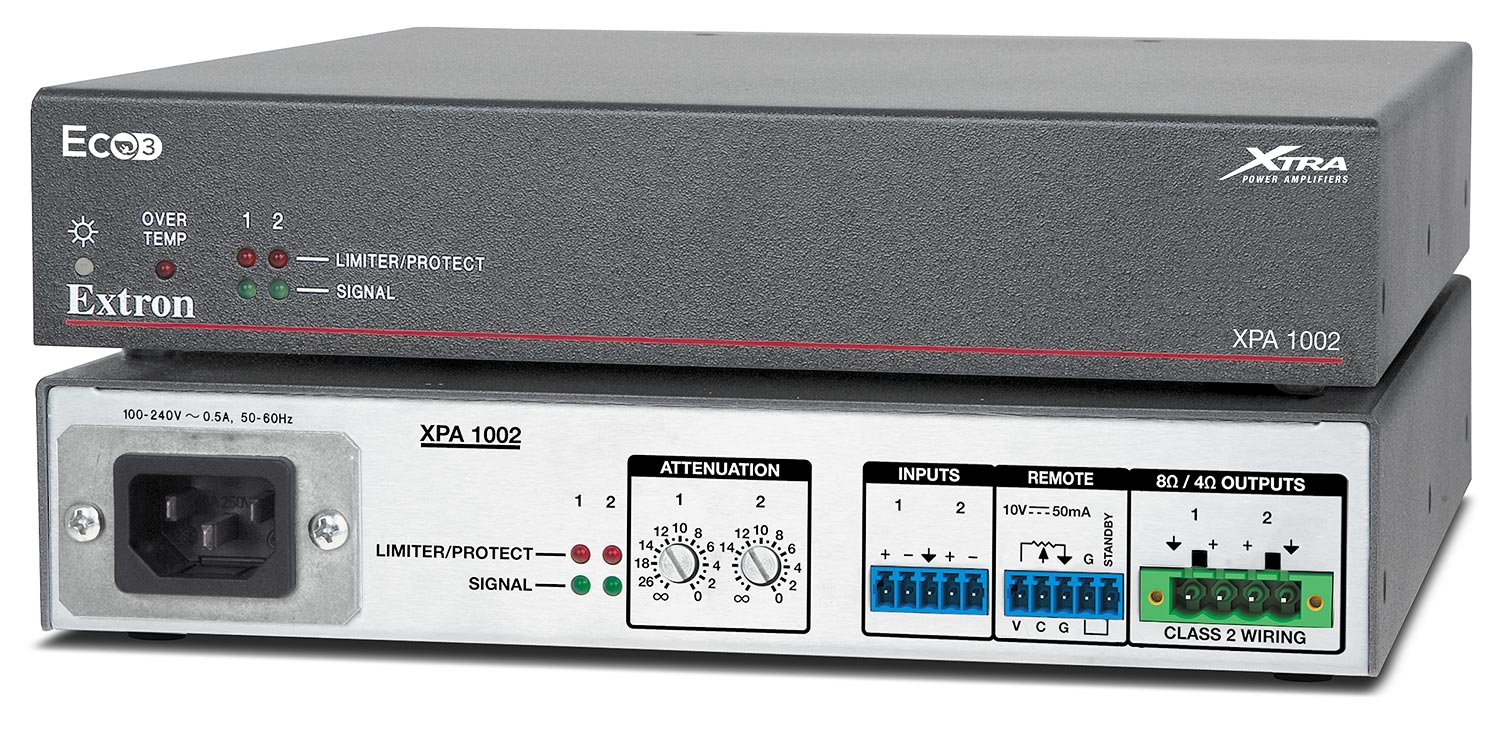

Extron XPA 1002 (part number 60-849-01) - a half-rack, stereo Class D power amplifier for direct-drive 4 or 8 ohm loudspeakers.

This 1U, half-rack chassis delivers 60 watts per channel into 8 ohms or 100 watts per channel into 4 ohms from a convection-cooled design with internal heat sinks, so integrators get rack-mountable stereo amplification without fan noise or forced-air cooling. A 5-pole captive-screw control port carries an analog 0-10V DC volume/mute signal and a contact-closure standby line, letting the amplifier integrate with simple analog control systems.

Key Capabilities

60 W per channel at 8 ohms, or 100 W per channel at 4 ohms
Class D design with >100 damping factor at 8 ohms for tight bass control
105 dB signal-to-noise ratio and >75 dB stereo channel separation
Analog 0-10V DC volume/mute and contact-closure standby control
Convection-cooled, fanless half-rack 1U enclosure at 2.5 lbs
Backed by a 3-year product warranty plus a 7-year Everlast power supply warranty

Where It Is Used

A compact stereo amplifier fits background-music zones, huddle rooms, and classrooms where a single pair of direct-drive loudspeakers needs clean, fanless amplification and simple analog volume control rather than networked audio or DSP.

Specifications at a Glance

Output: 60 W/ch @ 8 ohms or 100 W/ch @ 4 ohms, 1 kHz, <0.05% THD
Frequency response: 20 Hz to 20 kHz, ±1 dB
Enclosure: 1.7" H x 8.7" W x 9.5" D, half-rack 1U, metal, convection cooled
Warranty: 3 years parts and labor; Everlast power supply 7 years

Frequently asked questions about the Extron XPA 1002 Half-Rack Audio Power Amplifier

Does Ampronix sell the Extron XPA 1002 Half-Rack Audio Power Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron XPA 1002 Half-Rack Audio Power Amplifier (60-849-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron XPA 1002 Half-Rack Audio Power Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron XPA 1002 Half-Rack Audio Power Amplifier. Call Ampronix for a quote.

Is the Extron XPA 1002 Half-Rack Audio Power Amplifier listed under other names?

Yes. The Extron XPA 1002 Half-Rack Audio Power Amplifier is also referenced as Extron XPA1002, XPA-1002, part number 6084901.

What are the key features of the Extron XPA 1002 Half-Rack Audio Power Amplifier?

Key points: 60 W per channel at 8 ohms, or 100 W per channel at 4 ohms; Class D design with >100 damping factor at 8 ohms for tight bass control; 105 dB signal-to-noise ratio and >75 dB stereo channel separation; Analog 0-10V DC volume/mute and contact-closure standby control. Call Ampronix to confirm details for your application.

Also referenced as Extron XPA1002, XPA-1002, part number 6084901.

Specifications

Part Number: 60-849-01

Manufacturer: Extron

Model: XPA 1002

Condition: New

Amplifier Type: Class D

Output Power (8 ohms): 60 W rms per channel, 1 kHz, <0.05% THD

Output Power (4 ohms): 100 W rms per channel, 1 kHz, <0.05% THD

Load Impedance: 4 ohms minimum

Audio Output: 1 stereo, 4 or 8 ohm direct; (1) 5 mm captive screw connector, 4-pole (22-12 AWG)

Voltage Gain: 16x (24 dB)

Stereo Channel Separation: >75 dB @ 1 kHz

CMRR: 75 dB @ 1 kHz (typical)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD+N: 0.05% @ 20 Hz-20 kHz, 8 ohms, at 3 dB below clipping

S/N: 105 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

Audio Input: 1 stereo or 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Input Nominal Level: +4 dBu (1.23 Vrms), balanced

Input Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Control Port: (1) 3.5 mm captive screw connector, 5-pole

DC Volume Control (Analog): Pin 1 = +10 VDC (50 mA max), Pin 2 = volume/mute (variable voltage), Pin 3 = GND

Volume Control Voltage Range: 0 V (mute) to 10 V (maximum volume)

Standby Power Control (Contact Closure): Pin 4 = GND, Pin 5 = standby

Protection: Clip limiting, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 0.5 A

Power Consumption (Active, 8 ohms): 0.3 A / 29.9 W / 14.9 W / 51 BTU/hr at 115 VAC; 0.2 A / 29.9 W / 14.9 W / 51 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 0.4 A / 41.1 W / 16.1 W / 55 BTU/hr at 115 VAC; 0.2 A / 41.1 W / 16.1 W / 55 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 10.1 W / 10.1 W / 34 BTU/hr at 115 VAC; 0.1 A / 9.8 W / 9.8 W / 33 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <1 W / <1 W / <3 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents, with internal heat sinks

Mounting: Rack mountable with optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 9.5" D (4.3 x 22.1 x 24.1 cm)

Weight: 2.5 lbs (1.1 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE; UL rated for plenum airspaces, meets UL 2043

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

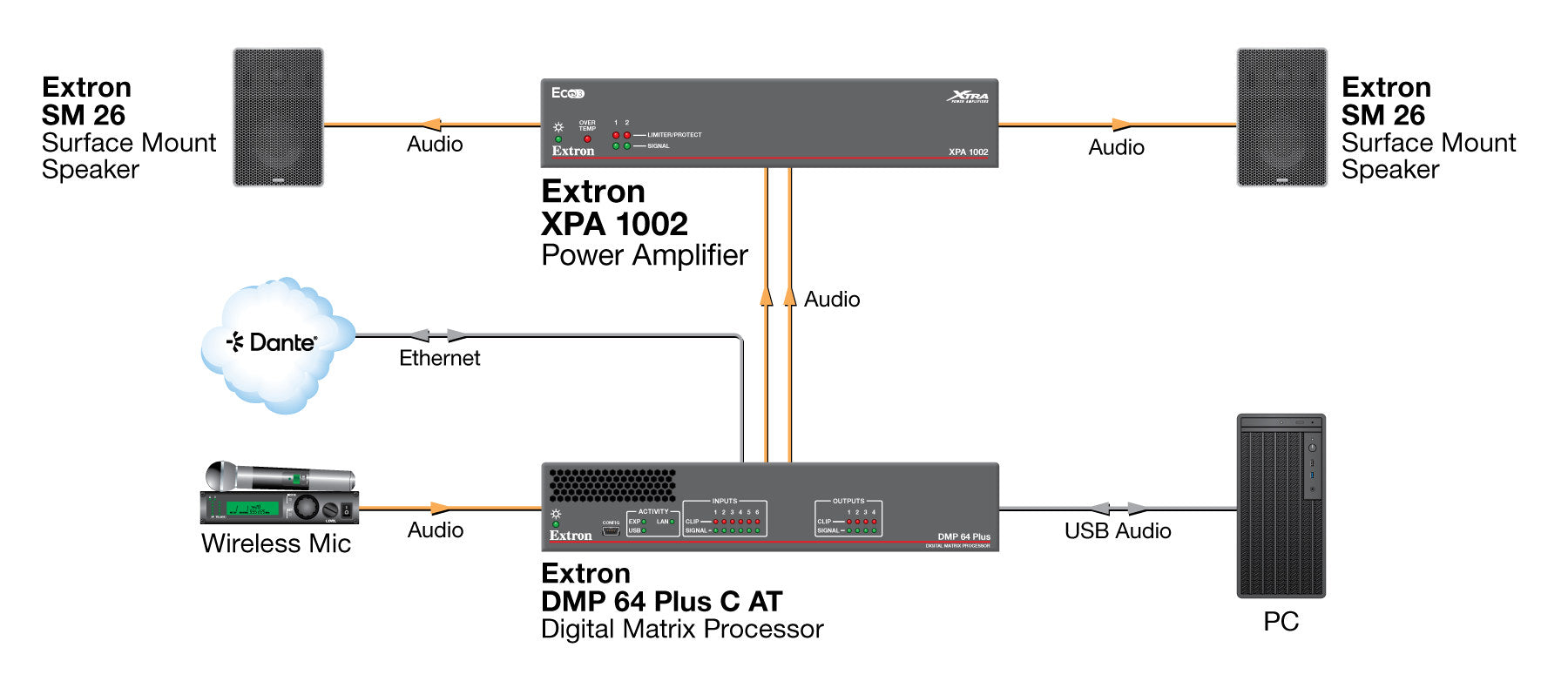

Diagram

Resources

Brochure | XPA 1002 60-849-01 | XPA 1002 Series

Brochure | XPA 1002 60-849-01 | XTRA Series

Brochure | XPA 1002 60-849-01 | Everlast Power Supplies

Brochure | XPA 1002 60-849-01 | Gamme XTRA

Brochure | XPA 1002 60-849-01 | Serie XTRA (xtraseries_spbro_revB.pdf)

Brochure | XPA 1002 60-849-01 | Serie XTRA (XtraSeries_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | XPA 1002 60-849-01 | XTRA-Serie

Brochure | XPA 1002 60-849-01 | Alimentatori Everlast

Brochure | XPA 1002 60-849-01 | Everlast 电源

Brochure | XPA 1002 60-849-01 | Everlast-Netzteile

Brochure | XPA 1002 60-849-01 | Fuentes de alimentación Everlast

Brochure | XPA 1002 60-849-01 | Sources d'alimentation Everlast

Brochure | XPA 1002 60-849-01 | XPA 1002 - Bid Sheet

Brochure | XPA 1002 60-849-01 | XTRA 系列

Brochure | XPA 1002 60-849-01 | XTRAシリーズ

Manual | XPA 1002 60-849-01 | Cleaning Instruction Card

Manual | XPA 1002 60-849-01 | XTRA Series Half-Rack Audio Power Amplifiers Setup Guide

Manual | XPA 1002 60-849-01 | XTRA™ Series User Guide

Manual | XPA 1002 60-849-01 | XTRA Series Half-Rack Audio Power Amplifiers SUG Simplified Chinese

Manual | XPA 1002 60-849-01 | XTRA Series Half-Rack Audio Power Amplifiers SUG TCH

Manual | XPA 1002 60-849-01 | XTRA Series Half-Rack Audio Power Amplifiers SUG Traditional Chinese

Specifications | XPA 1002 60-849-01 | XPA 1002

Panel Drawing | XPA 1002 60-849-01 | XPA 1002
