Extron XPA 1002-100V 100V Line Power Amplifier
- • Extron XPA 1002-100V two-channel power amplifier
- • 100 W rms per channel into 100 V lines
- • Switchable 80 Hz high-pass filter, UL 2043 plenum
- • Sales, replacement and exchange
- • Part# 60-1302-11 / 60130211
Product discontinued. Replacement: https://www.extron.com/product/xpau1002.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

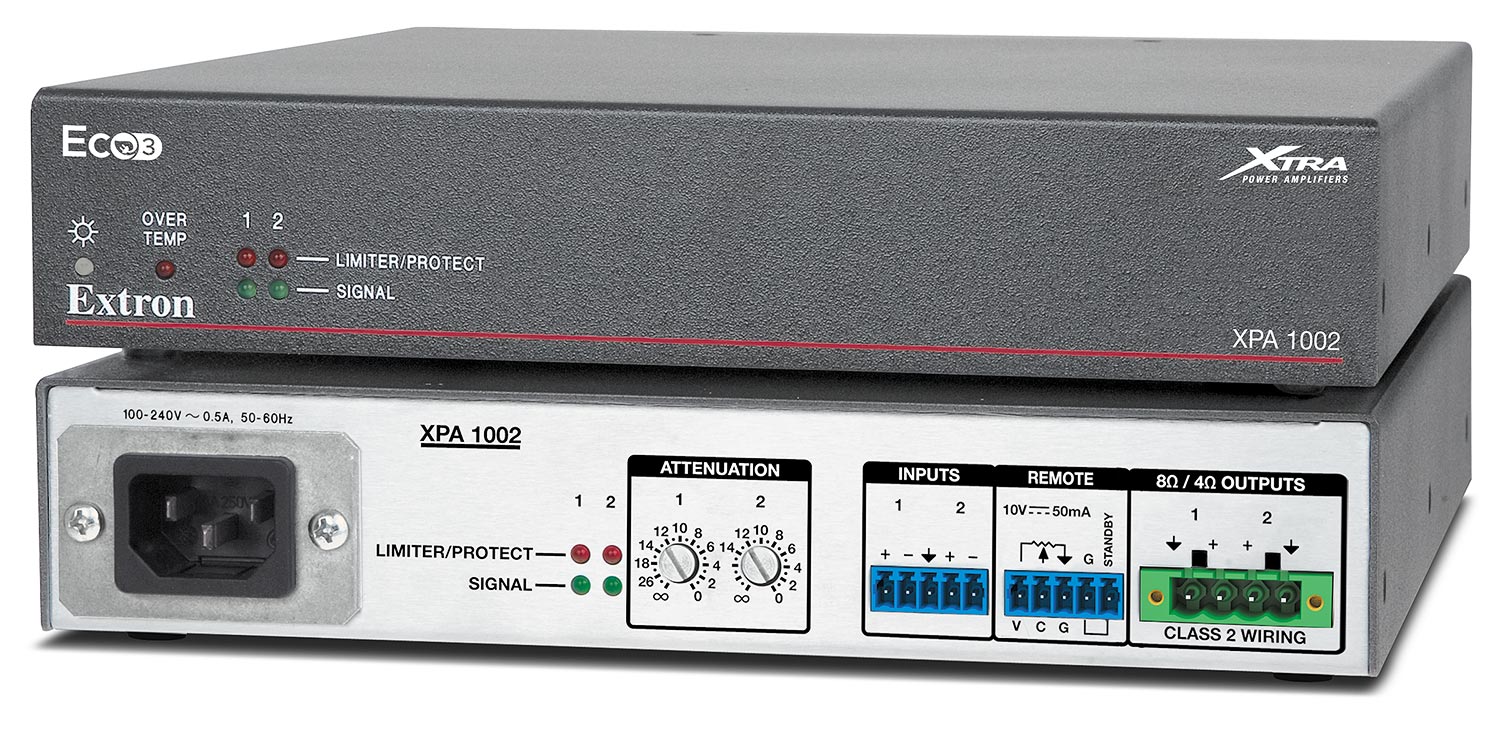

Extron XPA 1002-100V (part number 60-1302-11) - a half-rack, two-channel power amplifier built for 100V constant-voltage speaker lines.
This convection-cooled, fanless amplifier delivers 100 watts rms per channel into a 100V line, giving integrators long cable-run speaker distribution without the power loss of low-impedance direct drive. A switch-selectable 80 Hz high-pass filter rolls off frequencies that would otherwise saturate speaker-line transformers, and the ENERGY STAR-qualified design keeps standby draw under 1 watt.
Key Capabilities
- 100 W rms per channel into 100V constant-voltage lines
- Switch-selectable 80 Hz high-pass filter protects speaker transformers
- 100 dB signal-to-noise ratio with less than 0.1% THD+N
- ENERGY STAR qualified, standby draw under 1 watt
- Convection-cooled, fanless half-rack 1U enclosure at 2.5 lbs

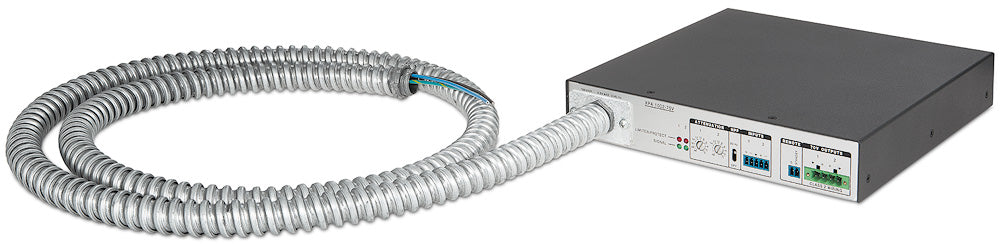

- UL 2043 plenum rated for above-ceiling installation
Where It Is Used
The 100V output suits distributed ceiling-speaker paging and background-music zones with long cable runs - classrooms, retail floors, and multi-zone facilities where constant-voltage distribution keeps cable losses low across many speaker taps.
Specifications at a Glance
- Output: 100 W rms per channel @ 100V, 1 kHz, <0.1% THD
- Frequency response: 20 Hz to 20 kHz, ±1 dB
- Enclosure: 1.7" H x 8.7" W x 9.5" D, half-rack 1U, metal, convection cooled
- Weight: 2.5 lbs (1.1 kg)
Frequently asked questions about the Extron XPA 1002-100V 100V Two-Channel Power Amplifier
Does Ampronix sell the Extron XPA 1002-100V 100V Two-Channel Power Amplifier?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XPA 1002-100V 100V Two-Channel Power Amplifier (60-1302-11). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XPA 1002-100V 100V Two-Channel Power Amplifier?
Yes. Ampronix provides sales, replacement and exchange for the Extron XPA 1002-100V 100V Two-Channel Power Amplifier. Call Ampronix for a quote.
Is the Extron XPA 1002-100V 100V Two-Channel Power Amplifier listed under other names?
Yes. The Extron XPA 1002-100V 100V Two-Channel Power Amplifier is also referenced as Extron XPA1002100V, XPA-1002-100V, part number 60130211.
What are the key features of the Extron XPA 1002-100V 100V Two-Channel Power Amplifier?
Key points: 100 W rms per channel into 100V constant-voltage lines; Switch-selectable 80 Hz high-pass filter protects speaker transformers; 100 dB signal-to-noise ratio with less than 0.1% THD+N; ENERGY STAR qualified, standby draw under 1 watt. Call Ampronix to confirm details for your application.
Also referenced as Extron XPA1002100V, XPA-1002-100V, part number 60130211.
