Extron XMP 240 C AT Dante Expansion Matrix Processor
- • 24 channels of Extron acoustic echo cancellation in a half rack space
- • 48x48 Dante/AES-67 connectivity on a 2-port 1 Gbps switch
- • Pairs with a DMP Plus for a combined 36 AEC channels
- • EXP port adds 16 channels Rx and 16 channels Tx over shielded CAT6
- • Runs on PoE (IEEE 802.3af) or the included PS 1215 C supply
- • Draws only 9.8 watts at the device; convection cooled, no fan
- • Selectable Dante latency: 0.25, 0.5, 1.0, 2.0 or 5.0 ms
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

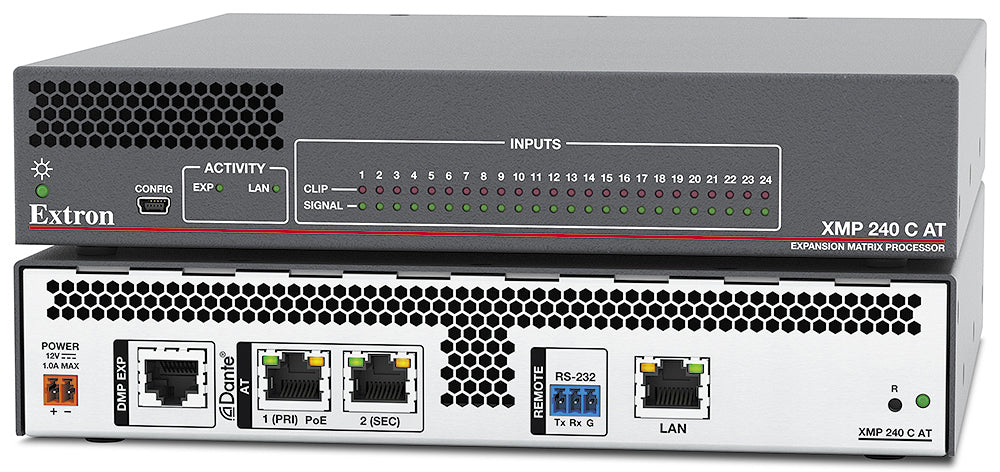

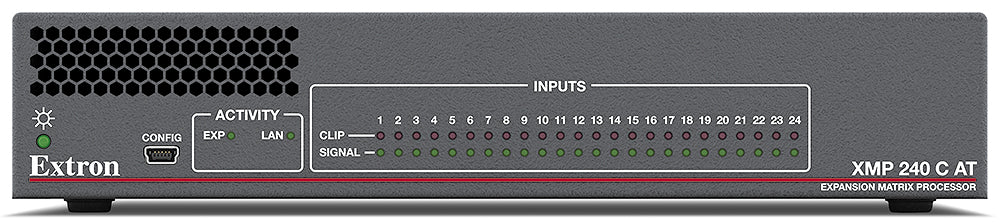

Extron XMP 240 C AT (part number 60-1836-01) — a half-rack Dante expansion matrix processor that adds 24 channels of acoustic echo cancellation and 48x48 network audio to a system.
This is a channel-count problem solver. It carries no analog audio connectors at all: everything arrives and leaves over Dante or the EXP expansion port. Used on its own it is the matrix and DSP engine of an all-network audio system. Tied to a DMP Plus processor over Dante or EXP, it lifts the combined system to as many as 36 AEC channels while the DMP contributes analog I/O, USB audio and optional VoIP. It draws under 10 watts and can run on standard PoE.
Key Capabilities
- 24 channels of acoustic echo cancellation with tail length above 200 msec and convergence up to 60 dB per second.
- Dante/AES-67 transport on a 2-port 1 Gbps switch: 48 channels received and 48 transmitted.
- EXP expansion port carrying 16 channels in and 16 channels out over shielded CAT6.
- Selectable network latency of 0.25, 0.5, 1.0 (default), 2.0 or 5.0 ms.
- Powered by PoE (IEEE 802.3af) or the included PS 1215 C 12 VDC supply.
- Configured in Extron DSP Configurator; controlled over RS-232, Ethernet, SIS commands or the 200-session web server.
Where It Is Used

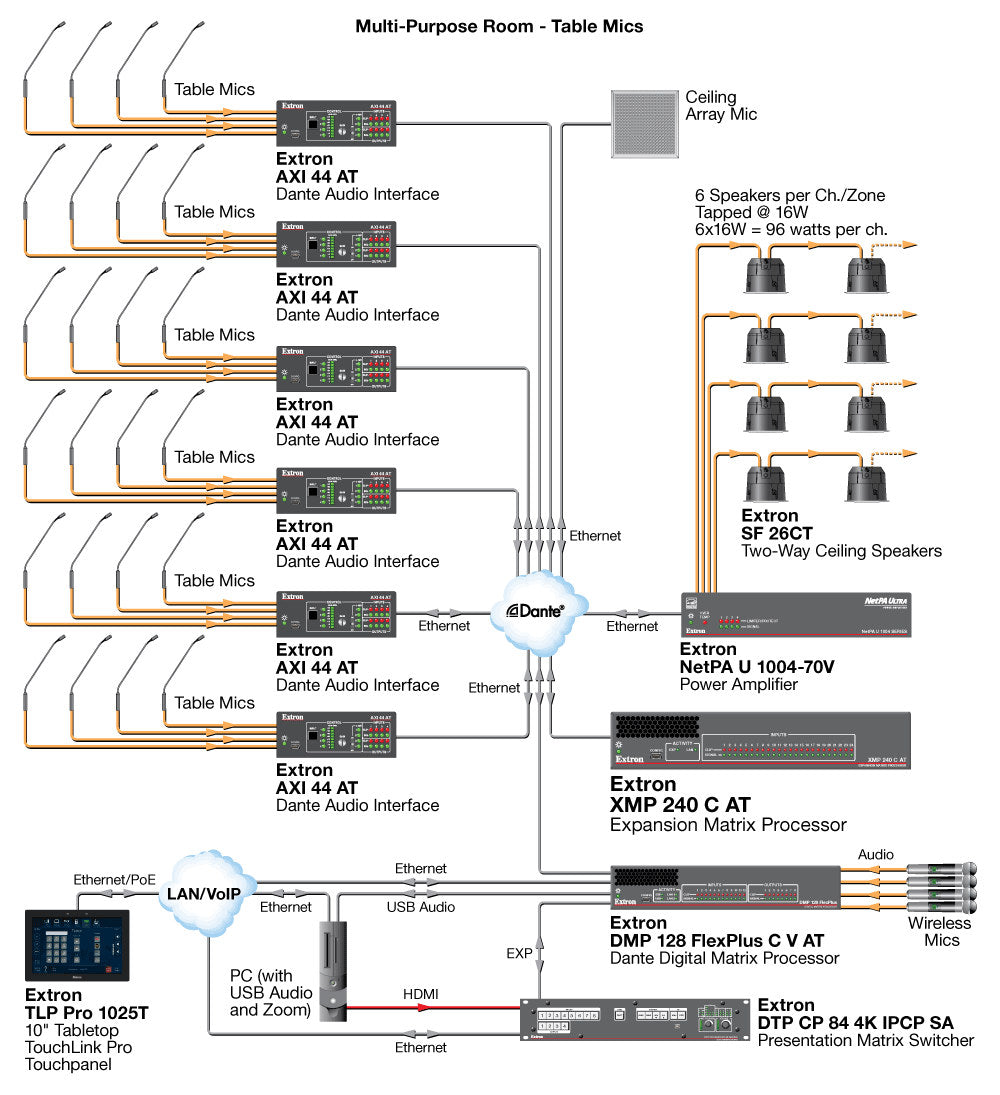

Large conference floors, multipurpose rooms, lecture blocks and campus deployments that have outgrown a single DSP, plus all-Dante designs where microphone arrays and networked amplifiers do all the talking. Convection cooled with no fan, it can go in a lectern, a credenza or a shared rack shelf.
Specifications at a Glance

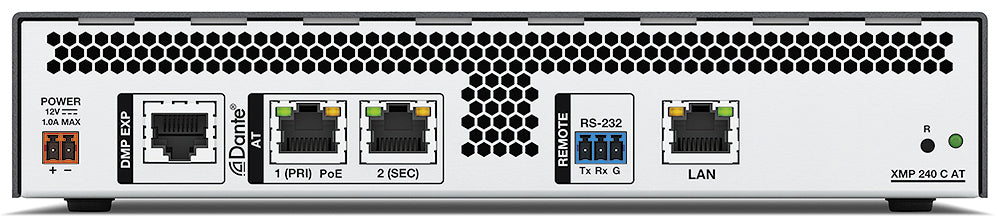

- Dante/AES-67: 48 channels Rx, 48 channels Tx on 2 RJ-45 ports
- AEC: 24 channels, tail length greater than 200 msec
- Signal to noise 115 dB digital in to digital out; crosstalk better than -90 dB
- Power consumption 9.8 W device, 10.5 W with the PS 1215 C supply
- Enclosure 1.7 in H x 8.7 in W x 9.5 in D, 2.0 lbs (0.9 kg)
Also referenced as Extron XMP240CAT, XMP-240-C-AT, part number 60183601.
