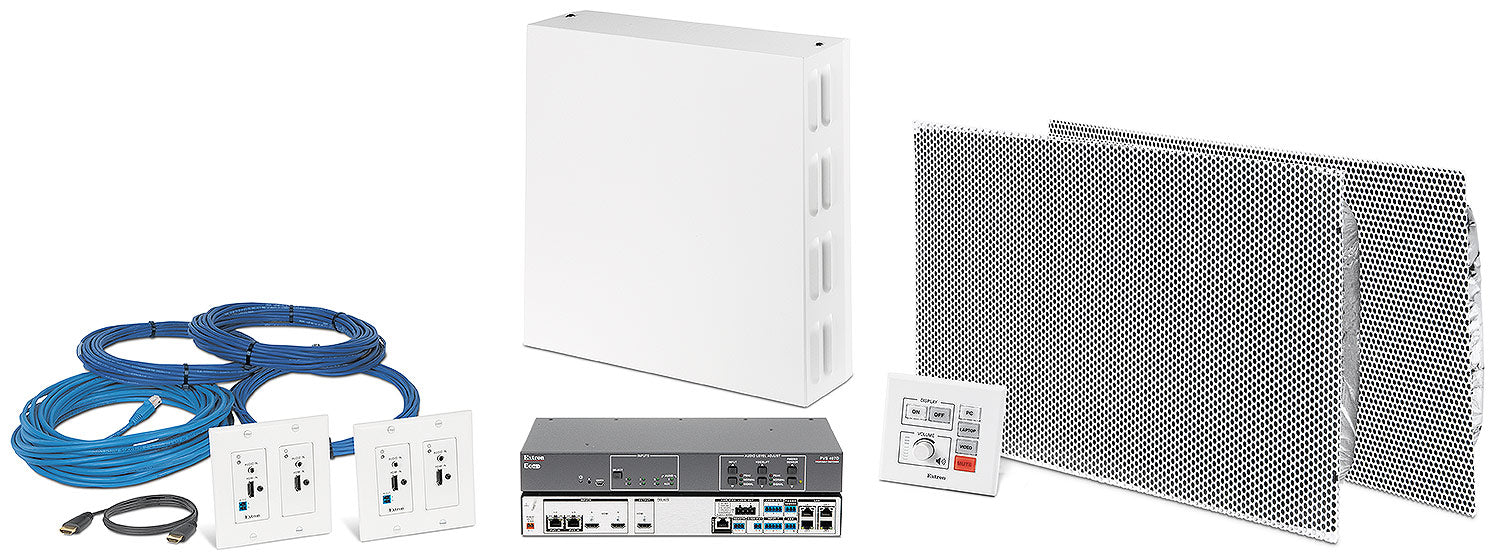

Extron WVS 441D (part number 42-370-03) — a 4+2 input WallVault Digital classroom system with the MLC Plus 400 touchscreen controller and the WMK 160 wall mount kit.

The top specification in the WallVault Digital range pairs four wallplate source positions with a graphical wall panel. Rooms used by many different presenters benefit twice over: more places to plug in, and a labelled touchscreen that does not need a printed legend strip to explain itself. The switcher, amplifier and power supply mount flat to the wall inside the WMK 160 and disappear behind its aluminium cover.

Key Capabilities

MLC Plus 400 touchscreen: 4.17 in IPS panel, 540 x 540, 400 nits, 1200:1 contrast
Four wallplate inputs plus two local HDMI inputs, up to six sources in total
Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
Touch panel runs on Power over Ethernet, 802.3af class 3, drawing 3.5 watts
WMK 160 wall kit holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved

Where It Is Used

Large flat panel teaching rooms, divisible training suites, simulation labs and executive briefing spaces on university, corporate and hospital campuses, where several sources must be switched and the AV hardware has to stay on the wall.

Specifications at a Glance

Configuration: 4+2 digital WallVault, WMK 160, MLC Plus 400
Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
WMK 160 cover: 17.3 x 16.5 x 2.75 in (439 x 419 x 70 mm), 15 lbs (6.8 kg) capacity
Controller memory: 1 GB SDRAM, 1 GB flash
Warranty: 3 years parts and labor

Also referenced as Extron WVS441D, WVS-441D, part number 4237003.

Specifications

Part Number: 42-370-03

Manufacturer: Extron

Model: WVS 441D

Condition: New

Configuration: 4+2 digital WallVault, WMK 160, MLC Plus 400

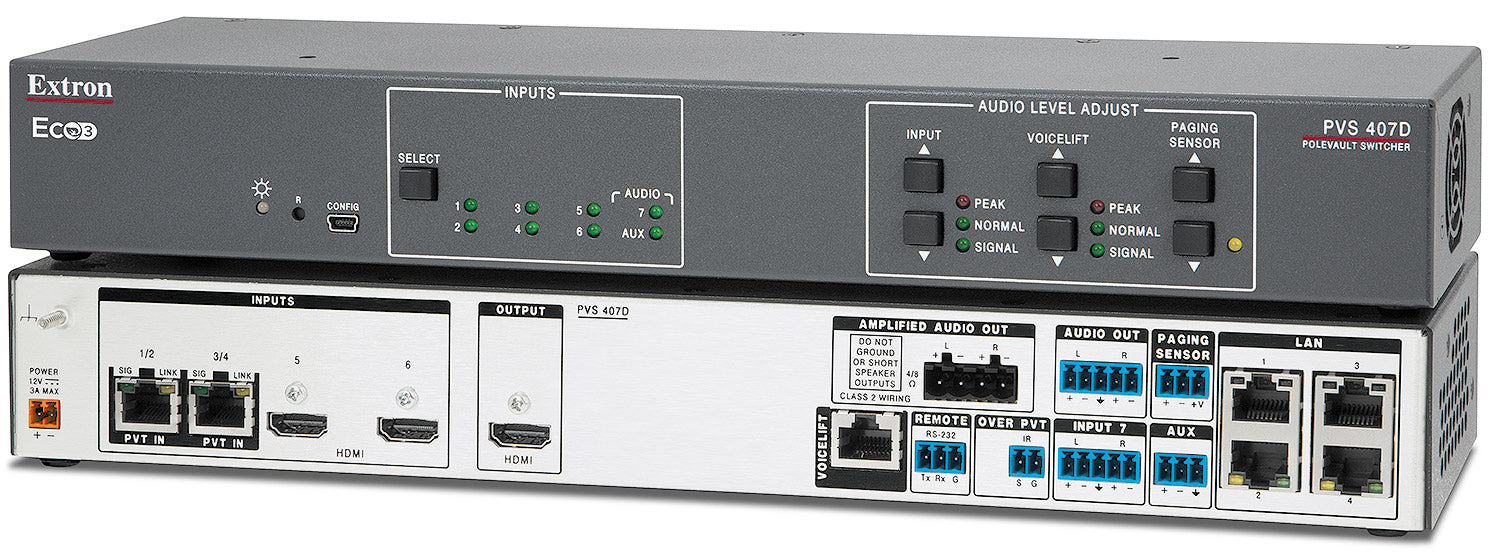

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Audio Outputs: 1 line output, stereo/mono, balanced/unbalanced, fixed/variable; 1 power amplifier, stereo or dual mono, 2 channels

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 400 MediaLink Plus touchscreen controller

Control Panel Display: 4.17 in (106 mm) diagonal IPS color LCD; 540 x 540; 183 PPI; 1:1 aspect ratio; 16.7 M colors; 400 nits; 1200:1 contrast; LED backlight; capacitive touchscreen

Control Panel Memory: 1 GB SDRAM, 1 GB flash

Control Panel Ethernet: 1 female RJ-45; 10/100Base-T, half/full duplex with autodetect

Control Panel Power: Power over Ethernet, 802.3af class 3; 3.5 watts device

Control Panel Ambient Temperature: Operating +32 to +122 F (0 to +40 C), 10% to 90% noncondensing

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 30.4 watts at 12 VDC; device and power supply 37.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Wall mount, with included wall mount kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

WMK 160 Wall Mount Kit: 15 lbs (6.8 kg) maximum load; steel base plate with aluminum cover; base plate 17.1 in H x 16.4 in W x 1.5 in D (434 x 417 x 38 mm); cover 17.3 in H x 16.5 in W x 2.75 in D (439 x 419 x 70 mm); 5.5 lbs (2.5 kg); CE, c-UL, UL, OSHPD anchorage pre-approved

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, C-tick, Ecofficient Level 3, FCC Class A, ICES, VCCI, UL; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor

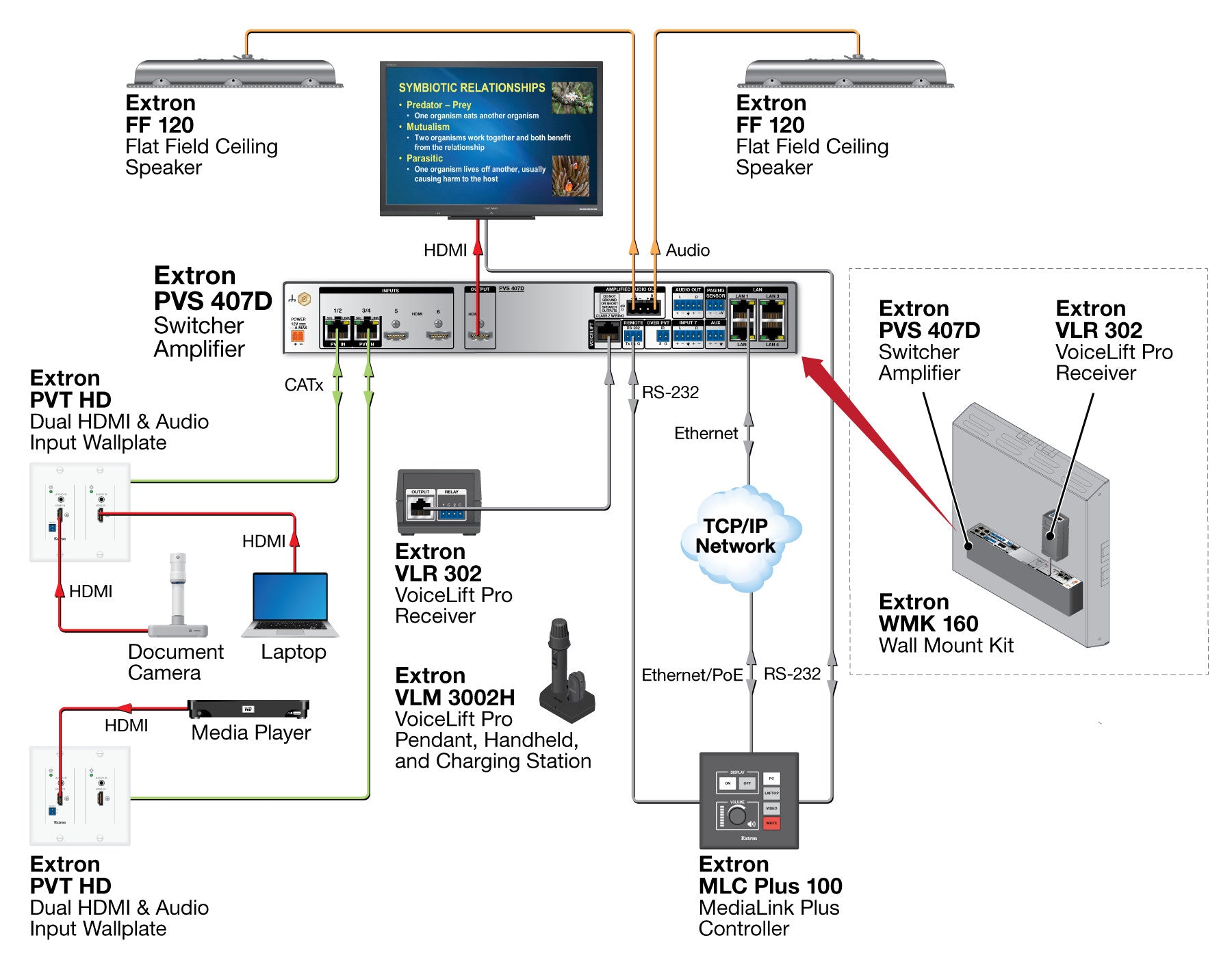

Diagram
