Extron WVS 411D WallVault Digital Classroom AV System
- • 4+2 input WallVault classroom system with the WMK 160 wall mount kit
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
- • WMK 160 holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

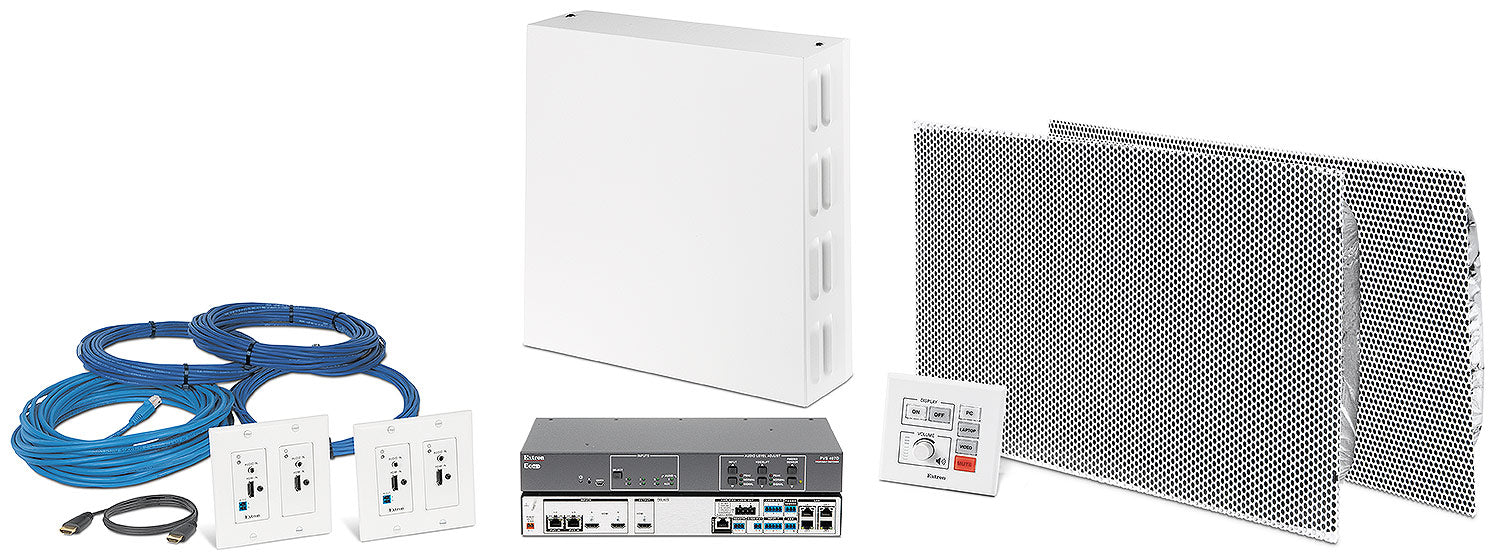

Extron WVS 411D (part number 42-312-23) — the current 4+2 input WallVault Digital classroom system, supplied with the WMK 160 wall mount kit.
This is the widest connectivity option in the WallVault Digital line. Four wallplate transmitter inputs handle sources brought in by instructors and students; two HDMI inputs on the switcher body stay dedicated to installed equipment such as a streaming decoder or a wireless presentation receiver. The WMK 160 fixes the switcher and power supply to the wall behind a removable aluminium cover, which keeps the room tidy and the equipment secure.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
- WMK 160 kit is a steel base plate with an aluminium cover, 5.5 lbs (2.5 kg)
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
- VoiceLift receiver input accepts a wireless instructor microphone system
Where It Is Used
Large flat panel teaching rooms, divisible training spaces and briefing rooms across school districts, university campuses, corporate learning centres and healthcare education departments, wherever the AV equipment must live on the wall rather than above the ceiling.
Specifications at a Glance
- Configuration: 4+2 input digital WallVault with WMK 160
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- WMK 160 cover: 17.3 x 16.5 x 2.75 in (439 x 419 x 70 mm), 15 lbs (6.8 kg) capacity
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS411D, WVS-411D, part number 4231223.
