Extron WVS 411D WallVault Digital Classroom AV System
- • 4+2 input WallVault classroom system with the WMK 160 wall mount kit
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
- • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
- • WMK 160 holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

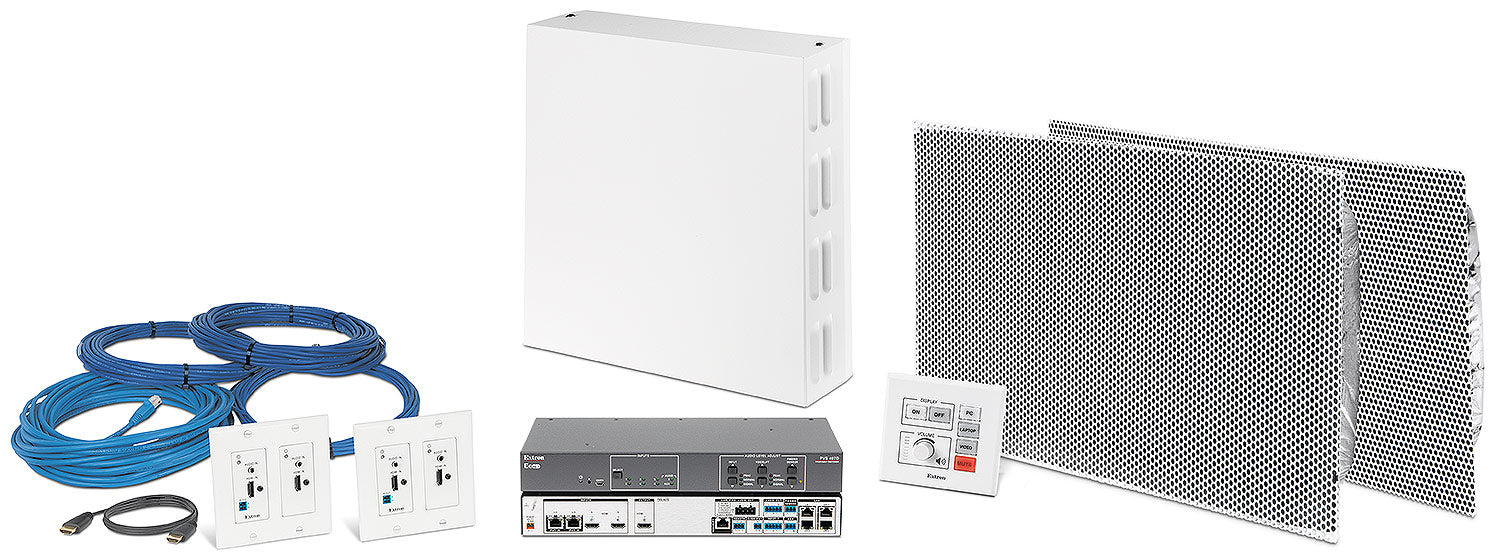

Extron WVS 411D (part number 42-312-13) — a 4+2 input WallVault Digital classroom AV system supplied with the WMK 160 wall mount kit.
Four wallplate positions is the practical upgrade over the 2+2 build: an instructor plate, a student table plate and two spare HDMI inputs on the switcher for fixed devices. All of it hides behind the WMK 160, a steel plate and aluminium cover that screws to the wall and takes the switcher plus its power supply. The room ends up with nothing visible except plates, panel and speakers.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
- WMK 160 wall kit holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
Where It Is Used
Busier teaching rooms with more than one connection point and a wall-mounted display: secondary school classrooms, college labs, corporate training suites and hospital education rooms where ceiling installation is not an option.
Specifications at a Glance
- Configuration: 4+2 input digital WallVault with WMK 160

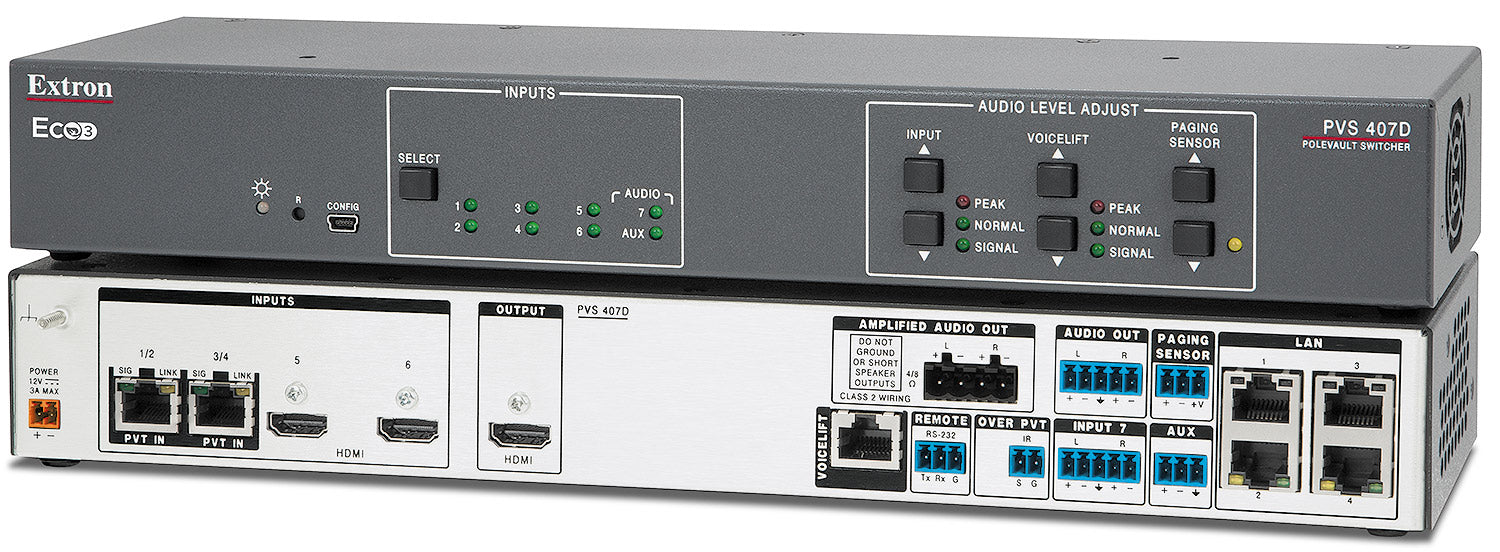

- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- WMK 160 base plate: 17.1 x 16.4 x 1.5 in (434 x 417 x 38 mm), 5.5 lbs (2.5 kg)
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS411D, WVS-411D, part number 4231213. Extron lists this part number as retired.
