Extron WVS 401D WallVault Digital Classroom AV System
- • 4+2 input WallVault classroom system with the USFM 100 wall enclosure
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • USFM 100 fits 16 in or 24 in on-centre studs, minimum 2 x 4 framing
- • Enclosure knockouts on all four sides accept raceway or conduit
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

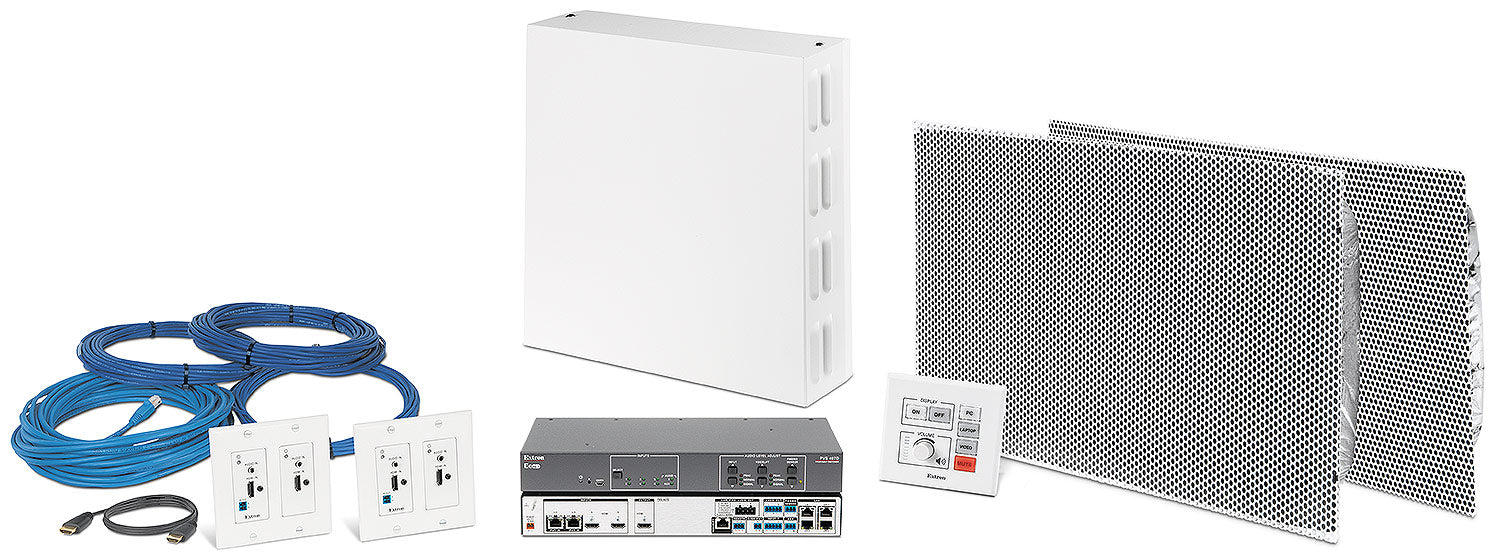

Extron WVS 401D (part number 42-310-23) — the later 4+2 input WallVault Digital classroom system, supplied with the USFM 100 mount and equipment enclosure.
Wall-mounted ultra short-throw projection changed what a classroom rack has to look like. There is no ceiling void to hide in, so Extron built the enclosure into the projector mount: the USFM 100 fastens to the studs, carries the projector on the optional UPB 125 bracket, and holds the PVS 407D switcher and power supply behind a locked cover. Four wallplate inputs and two switcher HDMI inputs handle the sources.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- USFM 100 mounts to 16 in or 24 in on-centre studs, minimum 2 x 4 in framing
- Knockouts on all four sides of the enclosure accept raceway or conduit
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
- VoiceLift receiver input accepts a wireless instructor microphone system
Where It Is Used
Busy teaching rooms with several connection points and no accessible ceiling: refurbished K-12 classrooms, further-education labs, corporate learning rooms and clinical skills suites using wall-mounted short-throw projectors or flat panels.
Specifications at a Glance
- Configuration: 4+2 input digital WallVault with USFM 100

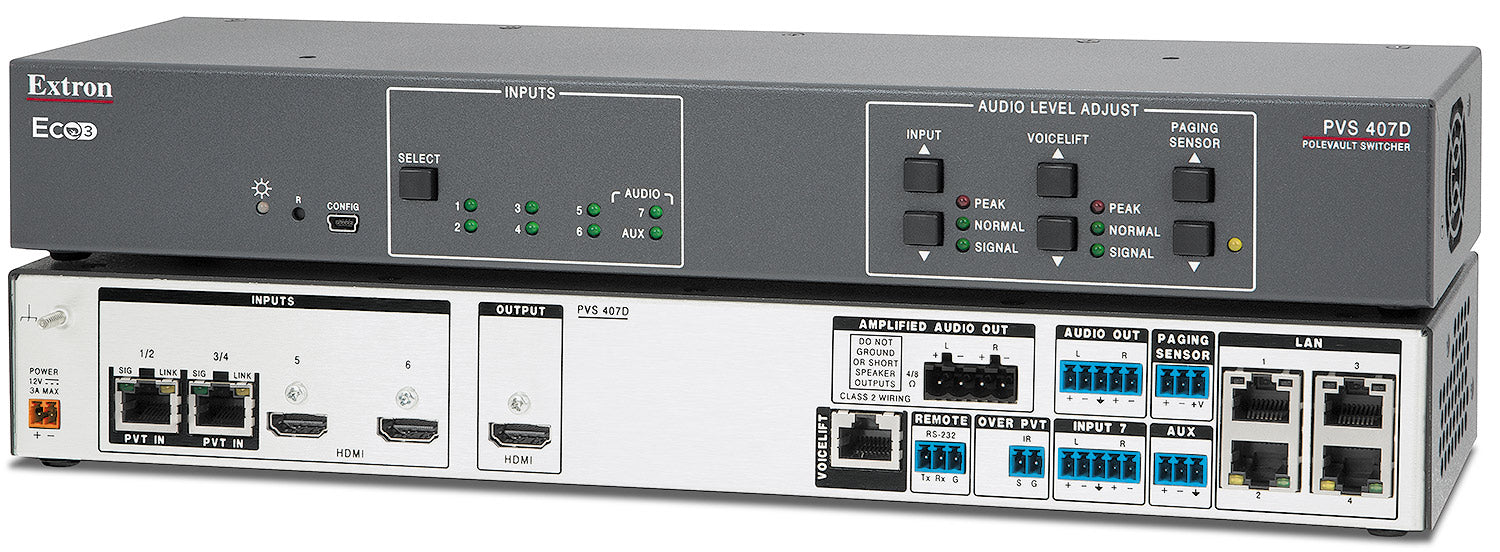

- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Twisted pair reach: 150 ft (46 m) at 2K, 130 ft (40 m) at 4K/30 Hz
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS401D, WVS-401D, part number 4231023. Extron lists this part number as retired.
