Extron WVS 401D WallVault Digital Classroom AV System
- • 4+2 input WallVault classroom system with the USFM 100 wall enclosure
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
- • USFM 100 fits 16 in or 24 in on-centre studs, minimum 2 x 4 framing
- • Optional UPB 125 bracket carries ultra short-throw projectors to 40 lbs
- • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

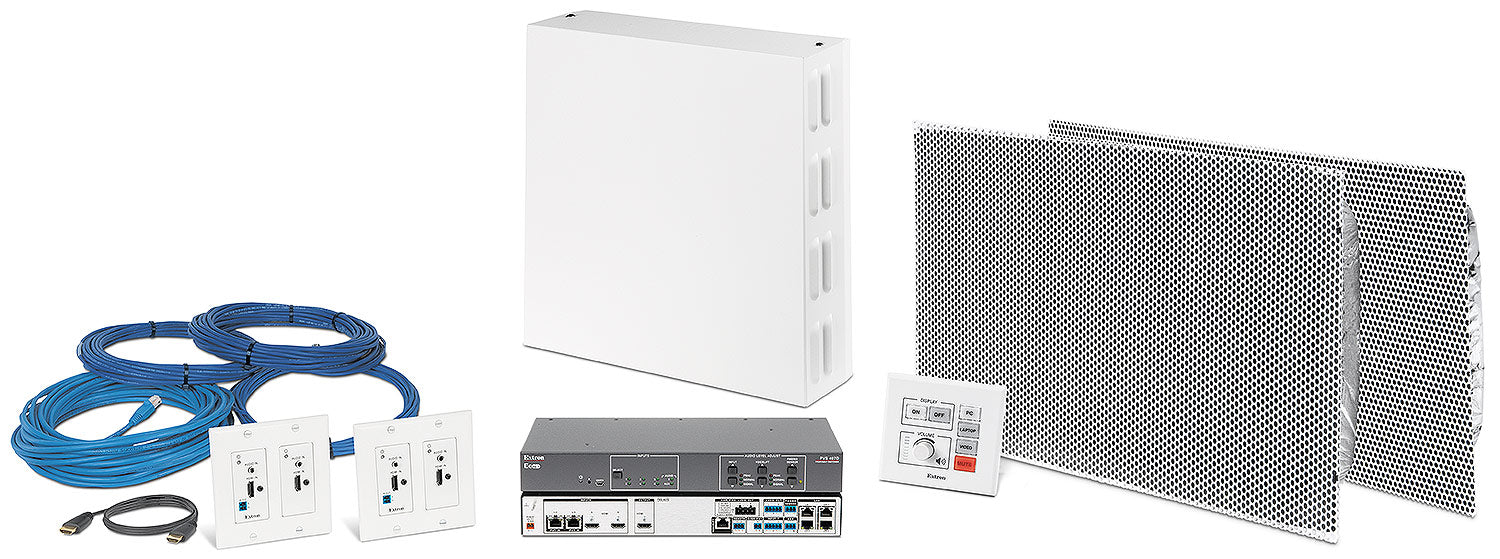

Extron WVS 401D (part number 42-310-13) — a 4+2 input WallVault Digital classroom AV system supplied with the USFM 100 projector mount and equipment enclosure.
Four wallplate source positions plus the two HDMI inputs on the switcher itself give this configuration room for an instructor station, a student position and a couple of permanently installed devices. All of the electronics live inside the USFM 100, a stud-mounted steel enclosure that also carries an ultra short-throw projector, so a room with a hard ceiling still gets a fully concealed AV system.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
- USFM 100 mounts to 16 in or 24 in on-centre studs, minimum 2 x 4 in framing
- Optional UPB 125 bracket suits ultra short-throw projectors up to 40 lbs
Where It Is Used
Multi-source teaching rooms without usable ceiling space: renovated school classrooms, community college labs, corporate training suites and hospital education rooms fitted with wall-mounted short-throw projectors or large flat panels.
Specifications at a Glance
- Configuration: 4+2 input digital WallVault with USFM 100

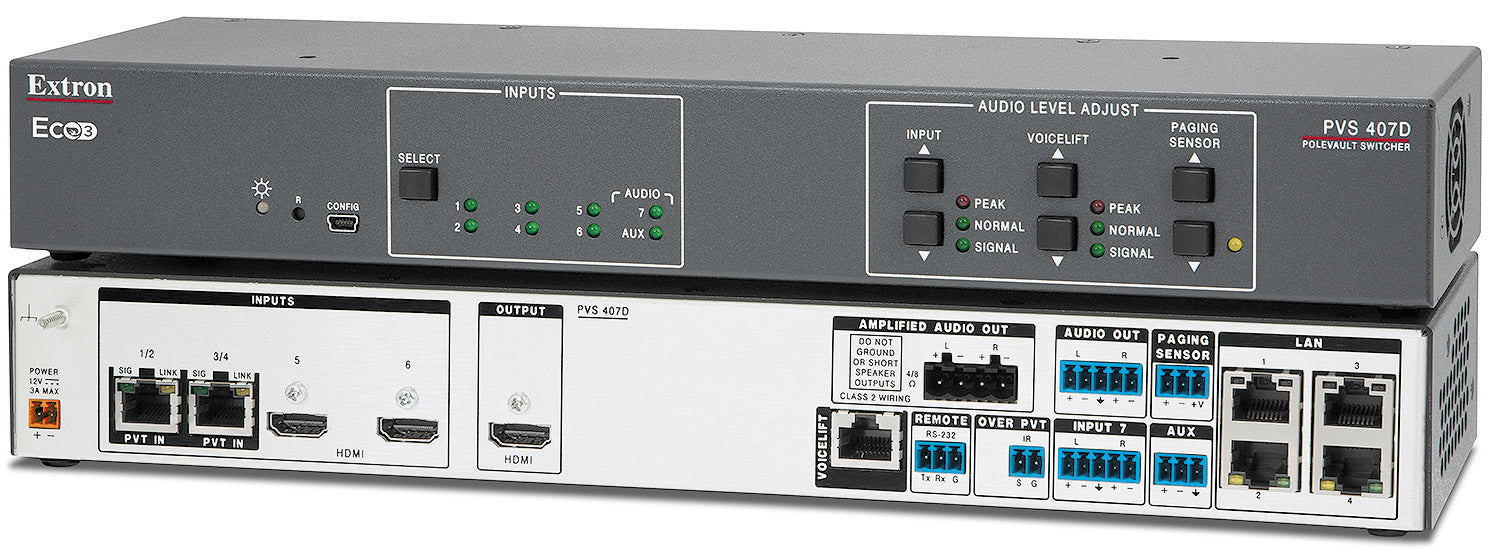

- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Amplifier: 2 channels, Class D, 25 watts rms each
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS401D, WVS-401D, part number 4231013. Extron lists this part number as retired.
