Manufacturer: Extron; Model: WVS 241D; Part number: 42-369-03 (also written 4236903)

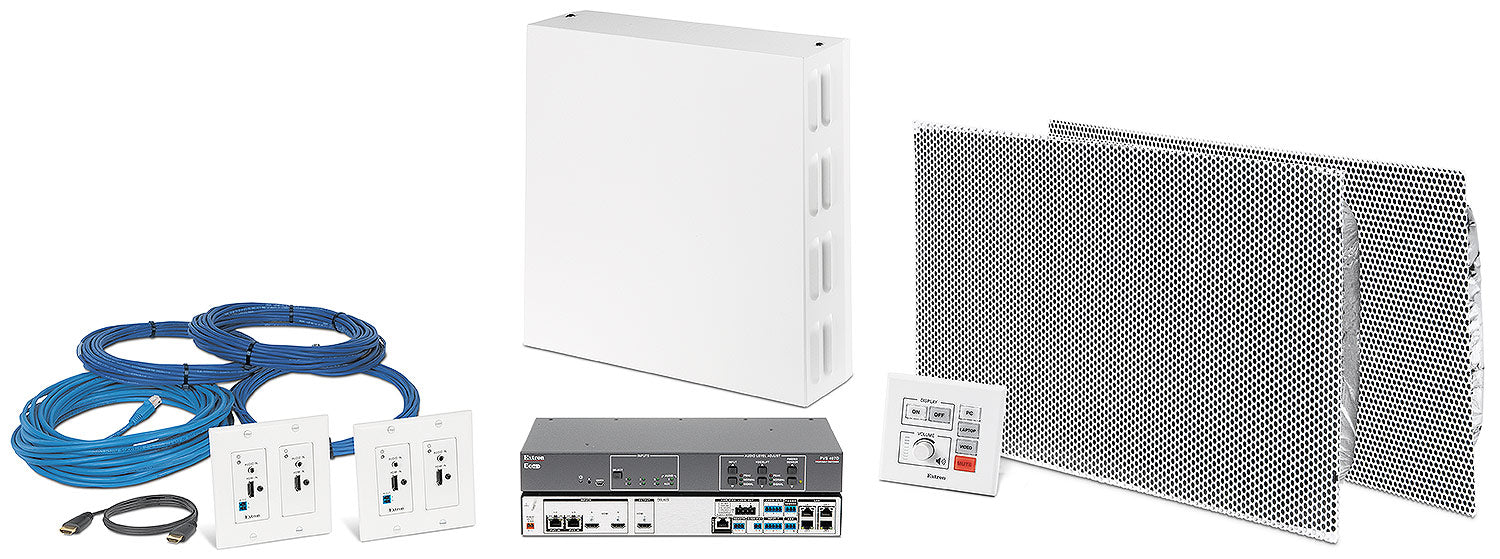

The Extron WVS 241D (42-369-03) is a new 2+2 input WallVault Digital classroom AV system available through Ampronix with the MLC Plus 400 touchscreen controller and WMK 160 wall mount kit. The MLC Plus 400 is a 4.17 in IPS capacitive touchscreen (540 x 540, 400 nits, PoE-powered) replacing button-panel legends with customizable labeled source names. Behind the WMK 160, the PVS 407D switcher and Class D amplifier (25 W per channel) drive audio and 4K video. WMK 160 OSHPD pre-approved.

Key capabilities

MLC Plus 400 touchscreen: 4.17 in IPS, 540 x 540, 400 nits, PoE-powered (802.3af Class 3)
Two local HDMI inputs plus two twisted-pair wallplate inputs; up to six sources
4K video: 4096x2160 at 30 Hz or 4K/UHD at 60 Hz (4:2:0)
Class D amplifier: 25 W per channel into 4 or 8 ohms, 20 Hz to 20 kHz
WMK 160 wall mount: 15 lb capacity, OSHPD anchorage pre-approved

Where it is used

Flat panel classrooms, briefing rooms, and training suites in universities, corporate learning centers, and healthcare education spaces where a graphical touchscreen interface is the standard.

Specifications at a glance

Configuration: 2+2 input; switcher: PVS 407D; controller: MLC Plus 400
Draws 23.5 W at 12 VDC; warranty: 3-year parts and labor

Frequently asked questions about the Extron WVS 241D WallVault Digital 2+2 AV System MLC Plus 400

Is the Extron WVS 241D 42-369-03 available new or refurbished?

Ampronix stocks the WVS 241D (42-369-03) as a new unit through its authorized Extron distribution agreement.

How does the WVS 241D differ from the WVS 441D?

The WVS 241D (42-369-03) has 2+2 inputs; the WVS 441D (42-370-03) has 4+2 inputs for rooms needing more source positions. Both use the MLC Plus 400 touchscreen controller.

Does Ampronix offer replacement and exchange for the Extron WVS 241D?

Yes. Ampronix provides sales, replacement and exchange for the WVS 241D and the broader Extron WallVault system line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron WVS 241D? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron WVS241D, WVS-241D, part number 4236903.

Specifications

Part Number: 42-369-03

Manufacturer: Extron

Model: WVS 241D

Condition: New

Configuration: 2+2 digital WallVault, WMK 160, MLC Plus 400

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Audio Outputs: 1 line output, stereo/mono, balanced/unbalanced, fixed/variable; 1 power amplifier, stereo or dual mono, 2 channels

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 400 MediaLink Plus touchscreen controller

Control Panel Display: 4.17 in (106 mm) diagonal IPS color LCD; 540 x 540; 183 PPI; 1:1 aspect ratio; 16.7 M colors; 400 nits; 1200:1 contrast; LED backlight; capacitive touchscreen

Control Panel Memory: 1 GB SDRAM, 1 GB flash

Control Panel Ethernet: 1 female RJ-45; 10/100Base-T, half/full duplex with autodetect

Control Panel Power: Power over Ethernet, 802.3af class 3; 3.5 watts device

Control Panel Ambient Temperature: Operating +32 to +122 F (0 to +40 C), 10% to 90% noncondensing

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 23.5 watts at 12 VDC; device and power supply 27.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Wall mount, with included wall mount kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

WMK 160 Wall Mount Kit: 15 lbs (6.8 kg) maximum load; steel base plate with aluminum cover; base plate 17.1 in H x 16.4 in W x 1.5 in D (434 x 417 x 38 mm); cover 17.3 in H x 16.5 in W x 2.75 in D (439 x 419 x 70 mm); 5.5 lbs (2.5 kg); CE, c-UL, UL, OSHPD anchorage pre-approved

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, C-tick, Ecofficient Level 3, FCC Class A, ICES, VCCI, UL; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | WVS 241D 42-369-03 | AV Solutions for Instructional Spaces

Brochure | WVS 241D 42-369-03 | Soluciones AV para espacios educativos

Brochure | WVS 241D 42-369-03 | Solutions audiovisuelles pour espaces pédagogiques

Manual | WVS 241D 42-369-03 | Classroom AV System Installation Guide

Manual | WVS 241D 42-369-03 | Cleaning Instruction Card

Manual | WVS 241D 42-369-03 | Network Ports, Protocols, and Licenses

Manual | WVS 241D 42-369-03 | PoleVault Digital Classroom with MLC Plus 100 Controller Quick Reference Guide

Manual | WVS 241D 42-369-03 | PoleVault Digital Classroom with MLC Plus 84 D Controller Quick Reference Guide

Manual | WVS 241D 42-369-03 | PoleVault Digital Switcher Systems Installation Guide

Manual | WVS 241D 42-369-03 | PVS 407D Digital Switcher User Guide

Manual | WVS 241D 42-369-03 | PVS 407D Setup Guide

Manual | WVS 241D 42-369-03 | UPB 125 Installation Guide

Manual | WVS 241D 42-369-03 | USFM 100 Bracket Kit Installation Guide

Manual | WVS 241D 42-369-03 | USFM 100 Installation Guide

Manual | WVS 241D 42-369-03 | WMK 160 Wall Mount Kit Installation Guide

Specifications | WVS 241D 42-369-03 | Extron WallVault® and PlenumVault® Digital Systems (for PVS 407D)

Specifications | WVS 241D 42-369-03 | PMK 560

Specifications | WVS 241D 42-369-03 | PVS 407D PoleVault Digital Switcher
