Extron WVS 211D WallVault Digital Classroom AV System
- • 2+2 input WallVault classroom system with the WMK 160 wall mount kit
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • Draws 23.5 watts at 12 VDC, 27.1 watts with the external supply
- • WMK 160 holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron WVS 211D (part number 42-311-23) — the current 2+2 input WallVault Digital classroom system, supplied with the WMK 160 wall mount kit.

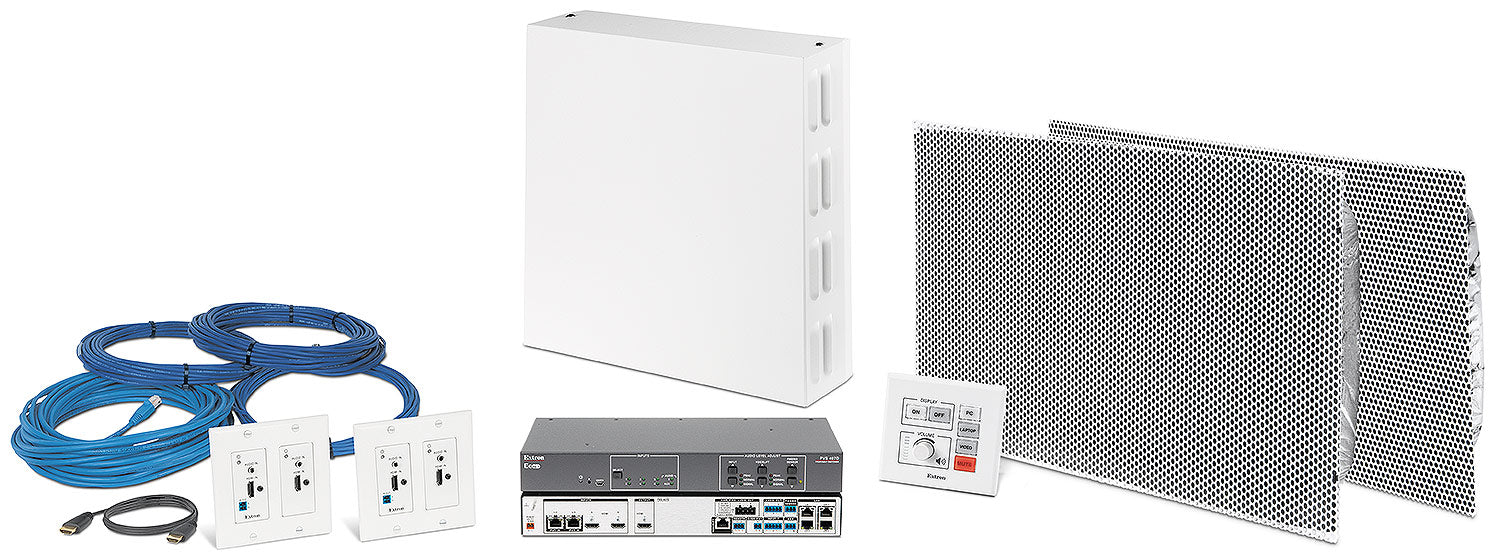

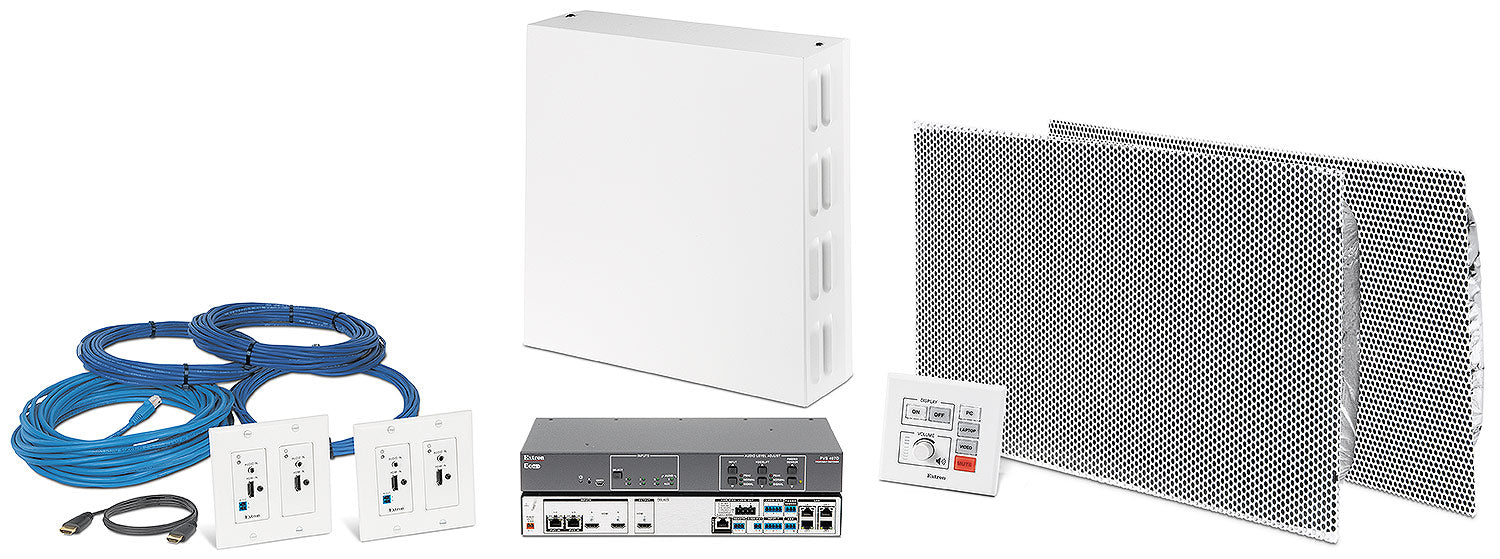

Everything a presentation room needs is on a single order line: 4K HDMI switching, a two-channel Class D amplifier, ceiling speakers, a MediaLink control panel, wallplate transmitters, interconnect cable and the wall enclosure. The WMK 160 keeps the switcher off the floor and out of sight, and its OSHPD anchorage pre-approval means it survives specification review on healthcare projects.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- Draws 23.5 watts at 12 VDC, or 27.1 watts including the external power supply
- WMK 160 kit is a steel base plate with an aluminium cover, 5.5 lbs (2.5 kg)
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
- Ecofficient Level 3 switcher design keeps standby energy use down
Where It Is Used
Flat panel classrooms, huddle rooms and training spaces where the display hangs on the wall and the equipment has to go with it. Widely used in schools, universities, corporate learning centres and hospital education departments.
Specifications at a Glance
- Configuration: 2+2 input digital WallVault with WMK 160
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- WMK 160 cover: 17.3 x 16.5 x 2.75 in (439 x 419 x 70 mm), 15 lbs (6.8 kg) capacity
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS211D, WVS-211D, part number 4231123.
