Extron WVS 211D WallVault Digital Classroom AV System
- • 2+2 input WallVault classroom system with the WMK 160 wall mount kit
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
- • Draws 23.5 watts at 12 VDC, 27.1 watts with the external supply
- • WMK 160 holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

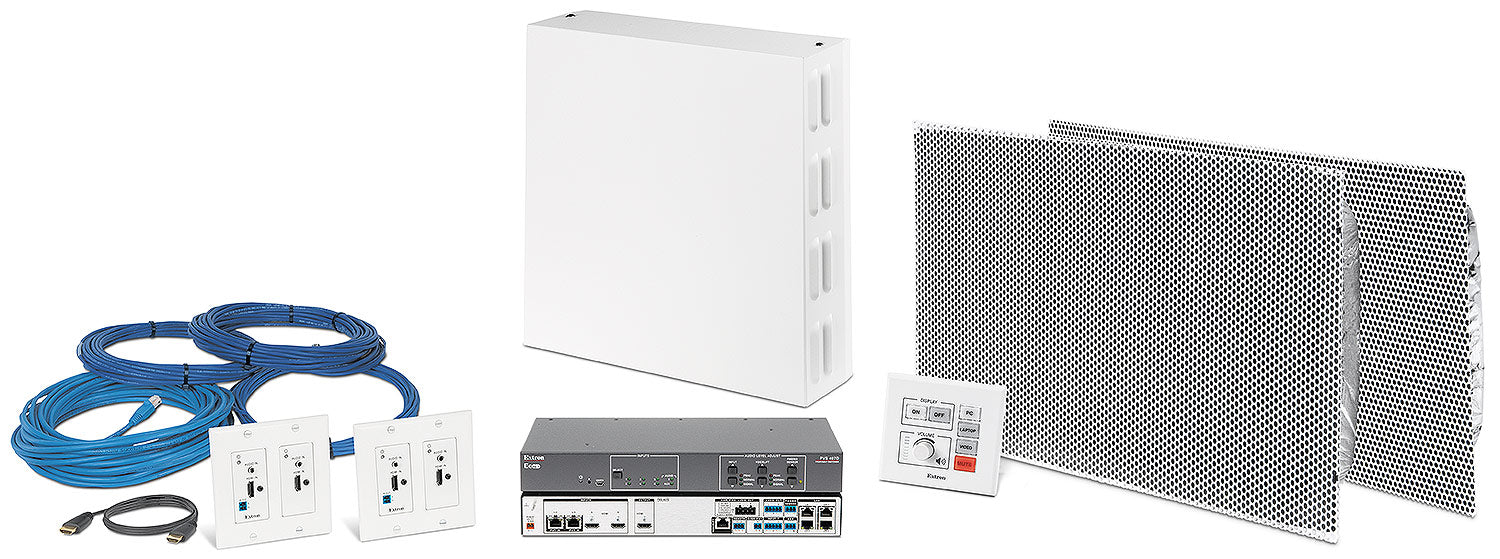

Extron WVS 211D (part number 42-311-13) — a 2+2 input WallVault Digital classroom AV system supplied with the WMK 160 wall mount kit.
The WMK 160 is the piece that makes this a WallVault rather than a PlenumVault system: a steel base plate with an aluminium cover that bolts flat to the wall, takes the PVS 407D switcher and its power supply, and hides them behind a lockable lid. It carries up to 15 lbs and is pre-approved for OSHPD anchorage, so it can be specified in healthcare construction as well as schools.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Draws 23.5 watts at 12 VDC, or 27.1 watts including the external power supply
- WMK 160 wall kit holds 15 lbs (6.8 kg) and is OSHPD anchorage pre-approved
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
Where It Is Used
Classrooms and meeting rooms built around a flat panel display or a wall-mounted ultra short-throw projector, especially in buildings with hard ceilings, exposed services or seismic anchorage requirements such as hospitals and higher-education campuses.
Specifications at a Glance
- Configuration: 2+2 input digital WallVault with WMK 160
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- WMK 160 base plate: 17.1 x 16.4 x 1.5 in (434 x 417 x 38 mm), 5.5 lbs (2.5 kg)
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS211D, WVS-211D, part number 4231113. Extron lists this part number as retired.
