Extron WVS 201D WallVault Digital Classroom AV System
- • 2+2 input WallVault classroom system with the USFM 100 wall enclosure
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • USFM 100 fits 16 in or 24 in on-centre studs, minimum 2 x 4 framing
- • Enclosure knockouts on all four sides accept raceway or conduit
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron WVS 201D (part number 42-309-23) — the later 2+2 input WallVault Digital classroom system built around the USFM 100 projector mount and equipment enclosure.

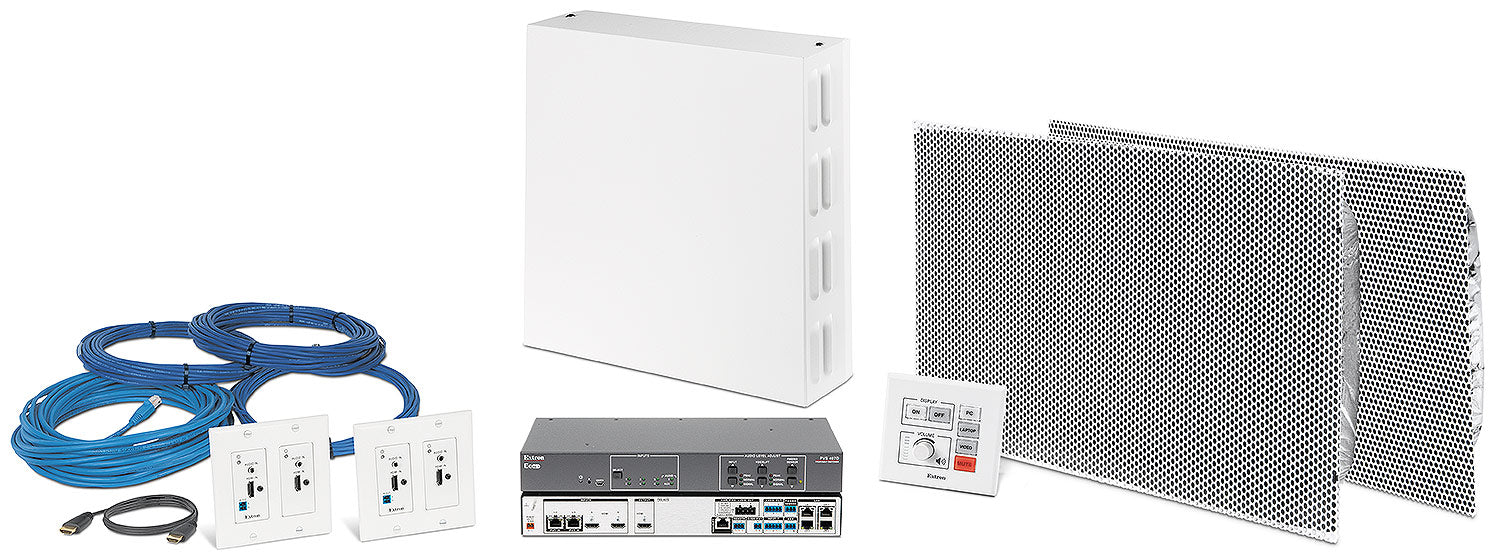

Everything an instructional room needs arrives as one order: HDMI switching, a stereo power amplifier, a MediaLink control panel, wallplate transmitters, Flat Field speakers, the interconnect cabling and the wall-mounted enclosure that holds it all. Because the USFM 100 fastens to the studs and locks shut, the electronics stay out of reach in rooms where no equipment closet or ceiling void is available.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- USFM 100 mounts to 16 in or 24 in on-centre studs, minimum 2 x 4 in framing
- Knockouts on all four sides of the enclosure accept raceway or conduit
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
- Ecofficient Level 3 switcher design keeps standby energy use down
Where It Is Used
Instructional spaces with wall-mounted ultra short-throw projectors or flat panels: primary and secondary classrooms, community college labs, corporate training rooms and hospital education spaces where ceiling access is limited or prohibited.
Specifications at a Glance
- Configuration: 2+2 input digital WallVault with USFM 100
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Twisted pair reach: 150 ft (46 m) at 2K, 130 ft (40 m) at 4K/30 Hz
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS201D, WVS-201D, part number 4230923. Extron lists this part number as retired.
